29 184320 5936 64-VFBGA Programmable Logic ICs LIF-MDF6000-6UMG64I
29 184320 5936 64-VFBGA Programmable Logic ICs LIF-MDF6000-6UMG64I
Specifications
Brand Name :
Lattice Semiconductor Corporation
Model Number :
LIF-MDF6000-6UMG64I
MOQ :
50pcs
Price :
Negotiable
Supply Ability :
1000000pcs
Number of Logic Elements :
5936 LE
Number of I/Os :
29 I/O
Data Rate :
6 Gb/s
Number of Transceivers :
2 Transceiver
Mounting Style :
SMD/SMT
Package / Case :
ucfBGA-64
Packaging :
Tray
Brand :
Lattice
Description

LIF-MDF6000-6UMG64I CrossLink™ Field Programmable Gate Array (FPGA) IC 29 184320 5936 64-VFBGA

Lattice Semiconductor CrossLinkPlus FPGAs for MIPI D-PHY Based Systems

Lattice Semiconductor CrossLinkPlus FPGAs for MIPI D-PHY Based Embedded Vision Systems combine FPGA flexibility with instant-on panel display performance, accelerating designs in industrial, automotive, computing, and consumer applications. CrossLinkPlus devices are low power FPGAs featuring integrated flash memory, a hardened MIPI D-PHY, and high-speed I/Os for instant-on panel display performance, and flexible on-device programming capabilities. Additionally, ready-to-use IPs and reference designs are provided to accelerate the implementation of enhanced sensors and display bridging, aggregation, and splitting functionality.

The small (3.5mm x 3.5mm), low power (<300µW) CrossLinkPlus devices are optimized for embedded vision applications with features like a hardened MIPI D-PHY, broad high-speed I/O support for interfaces like OpenLDI and RGB, and on-chip non-volatile flash memory. CrossLinkPlus utilizes its on-chip flash to support instant-on (minimizing visual artifacts that detract from the user experience) and flexible device reprogramming in the field.

FEATURES

  • On-device reprogrammable flash memory to enable instant-on (<10ms)
  • Hardened, pre-verified MIPI D-PHY interface supporting speeds up to 6Gbps per port
  • Broad support for high-speed I/O interfaces such as LVDS, SLVS, and subLVDS
  • Comprehensive IP library, including MIPI CSI-2, MIPI DSI, OpenLDI transmitters, and receivers
  • Compatible with other Lattice FPGAs for easy design portability
  • Fully compatible with the Lattice Diamond® design software tool flow, from synthesis and design capture through implementation, verification, and programming
  • Power consumption as low as 300µW (standby) or 5mW (operating)

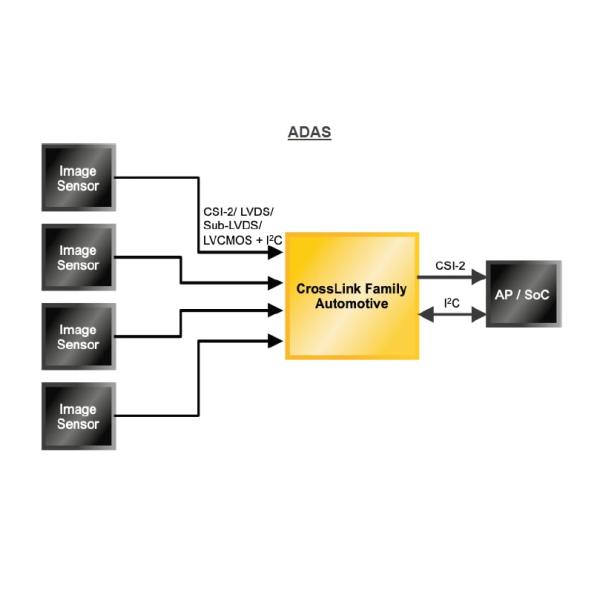

ADAS APPLICATION DIAGRAM

29 184320 5936 64-VFBGA Programmable Logic ICs LIF-MDF6000-6UMG64I

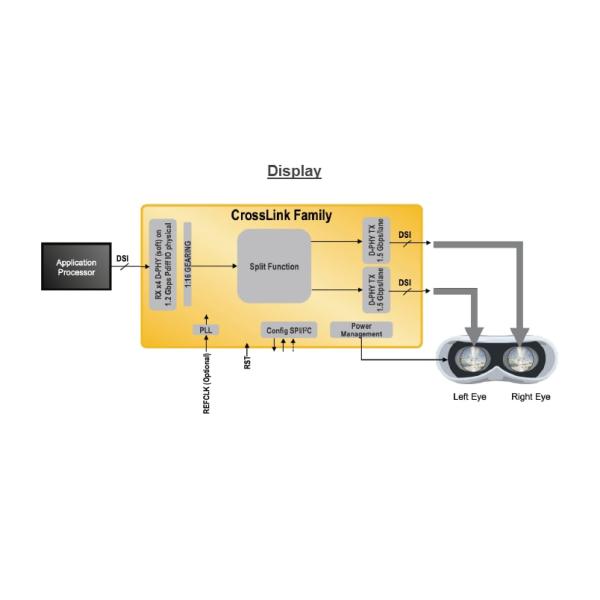

DISPLAY APPLICATION DIAGRAM

29 184320 5936 64-VFBGA Programmable Logic ICs LIF-MDF6000-6UMG64I

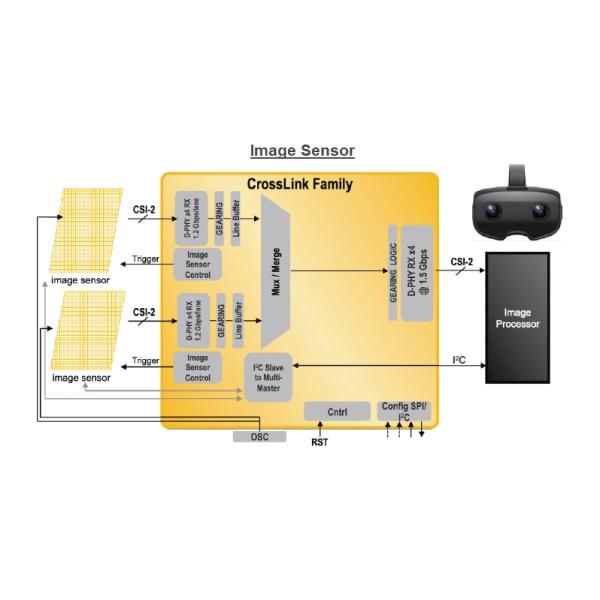

IMAGE SENSOR APPLICATION DIAGRAM

29 184320 5936 64-VFBGA Programmable Logic ICs LIF-MDF6000-6UMG64I
