Description

TCBT-123+ Ultra-wideband surface-mount bias tee covering RF IC Mini-Circuits RF/IF RFID RF Misc ICs and Modules

Product Overview :

Mini-Circuits’ TCBT-123+ is an ultra-wideband surface-mount bias tee covering applications from 10 MHz to 12 GHz with low insertion loss, excellent VSWR, and high DC-RF isolation over its entire frequency range. This model is capable of handling up to +30 dBm (1W) RF input power and DC input current up to 200mA. The unit comes housed in a miniature, shielded package (0.15 x 0.15 x 0.14”) with wraparound terminations for excellent solderability.

Features

biasing amplifiers

biasing of laser diodes

biasing of active antennas RF 2 RF&DC 1 DC 3 NOT USED 4

wideband, 10 to 12000 MHz

low insertion loss, 0.5 dB typ.

excellent VSWR, 1.25:1 typ.

miniature surface mount 0.15"x0.15"

aqueous washable

protected by US Patent 8,644,029

Applications:

biasing amplifiers

biasing of laser diodes

biasing of active antennas

Maximum Ratings:

Operating Temperature -40°C to 85°C

Storage Temperature -55°C to 100°C

RF Power 30dBm max.

Voltage at DC port 25V max.

Input Current 200mA

Category
RF/IF and RFID
Series
RF Misc ICs and Modules
Mfr
Mini-Circuits
Package
1000/Tape & Reel (TR)
Part Status
Active
Function
Bias Tee
Frequency
10MHz ~ 12GHz
RF Type
General Purpose
Secondary Attributes
-
Mounting Type
Surface Mount
Package / Case
4-SMD, No Lead
Supplier Device Package
GU1414

TCBT-123+ Ultra-wideband surface-mount bias tee covering RF IC Mini-Circuits RF/IF RFID RF Misc ICs and Modules

Products Images:

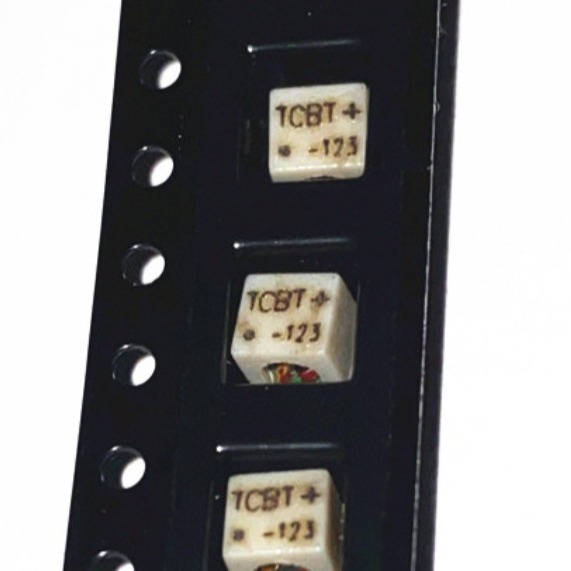

TCBT-123+ Ultra-wideband surface-mount bias tee covering RF IC Mini-Circuits RF/IF RFID RF Misc ICs and ModulesTCBT-123+ Ultra-wideband surface-mount bias tee covering RF IC Mini-Circuits RF/IF RFID RF Misc ICs and Modules
