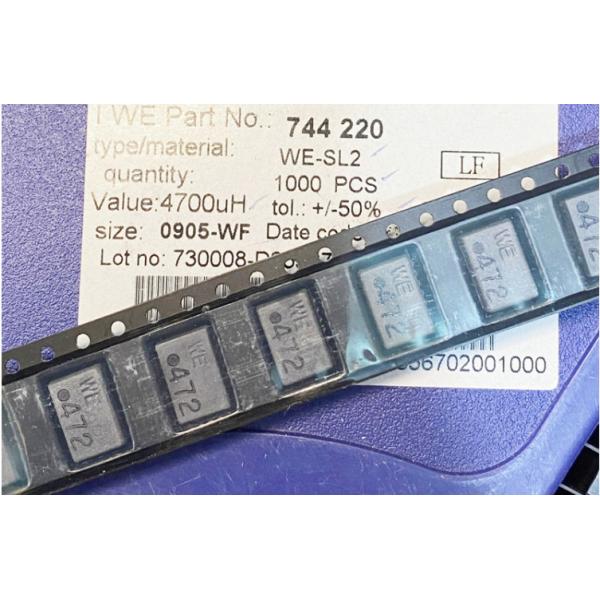

4.7mH 100KHz 2 Line SMD Common Mode Choke Filter 744220 WE-SL2 20KOhm
4.7mH 100KHz 2 Line SMD Common Mode Choke Filter 744220 WE-SL2 20KOhm
4.7mH 100KHz 2 Line SMD Common Mode Choke Filter 744220 WE-SL2 20KOhm
4.7mH 100KHz 2 Line SMD Common Mode Choke Filter 744220 WE-SL2 20KOhm
4.7mH 100KHz 2 Line SMD Common Mode Choke Filter 744220 WE-SL2 20KOhm
4.7mH 100KHz 2 Line SMD Common Mode Choke Filter 744220 WE-SL2 20KOhm
Specifications
Brand Name :
FENGHUA
Model Number :
0402 3.9NH 120NH 100NH 0603 1UH 2.2UH 3.3UH 4.7UH 10UH 0805 1UH 2.2UH 3.3UH 4.7UH 10UH
Certification :
ROHS
Place of Origin :
China
MOQ :
10PCS
Price :
Contact us
Payment Terms :
T/T, Western Union
Supply Ability :
50000pcs
Delivery Time :
1-8days
Packaging Details :
Reel/Standard package
Series :
WE-SL2
Family-inductors :
SMD Inductors
Subcategory :
Inductors, Chokes & Coils
Type :
Filters Common Mode Chokes
Mounting Type :
Surface Mount
Package / Case :
Horizontal, 4 PC Pad
Operating Temperature :
-40°C ~ 125°C
Core Material :
FIXED INDUCTORS
Size :
Size / Dimension 0.362" L x 0.236" W (9.20mm x 6.00mm*5.2mm)
Stock :
In Stock
Description

744220 WE-SL2 filters 4.7mH 100 kHz 2Line Common Mode Choke Surface Mount 20 kOhms 1MHz 500mA DCR 750mOhm

Part number 744220
Category
Filters
　
Common Mode Chokes
Mfr
Wurth Elektronik
Series
WE-SL2
Package
Tape & Reel (TR)
Part Status
Active
Filter Type
Signal Line
Number of Lines
2
Impedance @ Frequency
20 kOhms @ 1 MHz
Inductance @ Frequency
4.7 mH @ 100 kHz
Current Rating (Max)
500mA
DC Resistance (DCR) (Max)
750mOhm
Voltage Rating - DC
80V
Voltage Rating - AC
-
Operating Temperature
-40°C ~ 125°C
Ratings
-
Approval Agency
-
Features
-
Mounting Type
Surface Mount

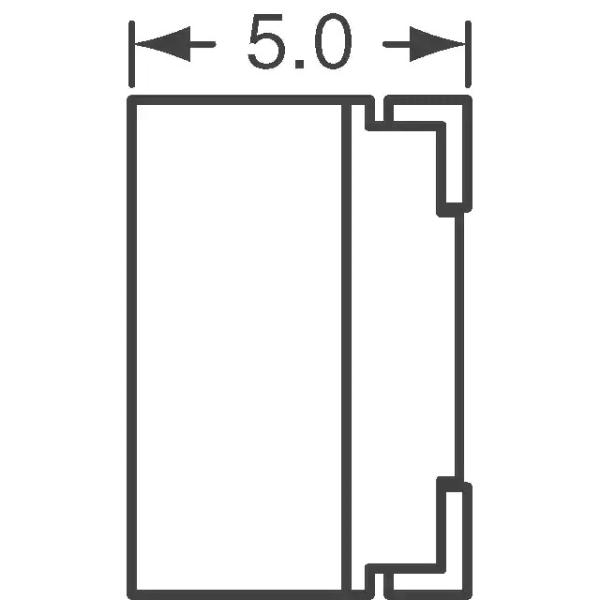

Size / Dimension
0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max)
0.205" (5.20mm)
Package / Case
Horizontal, 4 PC Pad

4.7mH 100KHz 2 Line SMD Common Mode Choke Filter 744220 WE-SL2 20KOhm

4.7mH 100KHz 2 Line SMD Common Mode Choke Filter 744220 WE-SL2 20KOhm4.7mH 100KHz 2 Line SMD Common Mode Choke Filter 744220 WE-SL2 20KOhm

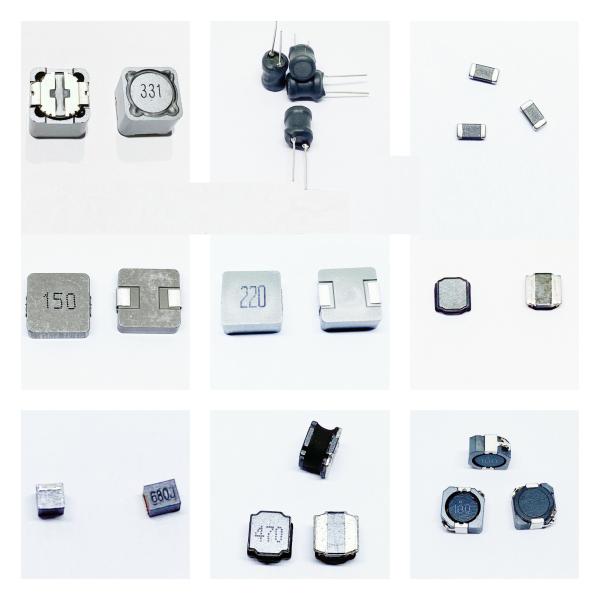

Related products for available:

4.7mH 100KHz 2 Line SMD Common Mode Choke Filter 744220 WE-SL2 20KOhm

Specifications :

Category
Inductors, Coils, Chokes
　
Fixed Inductors
Mfr
Wurth Elektronik
Series
WE-PD4
Package
Tape & Reel (TR)
Part Status
Active
Type
Wirewound
Material - Core
Ferrite
Inductance
330 µH
Tolerance
±10%
Current Rating (Amps)
700 mA
Current - Saturation (Isat)
800mA
Shielding
Unshielded
DC Resistance (DCR)
1.15Ohm Max
Q @ Freq
-
Frequency - Self Resonant
3.7MHz
Ratings
-
Operating Temperature
-40°C ~ 125°C
Inductance Frequency - Test
100 kHz
Features
-
Mounting Type
Surface Mount
Package / Case
Nonstandard
Part number
 74456233
Size / Dimension
0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Max)
0.209" (5.30mm)

4.7mH 100KHz 2 Line SMD Common Mode Choke Filter 744220 WE-SL2 20KOhm

Environmental & Export Classifications
ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
