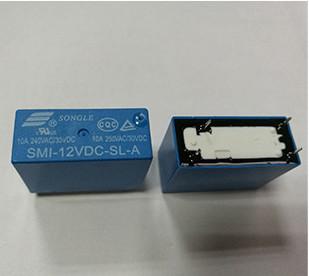

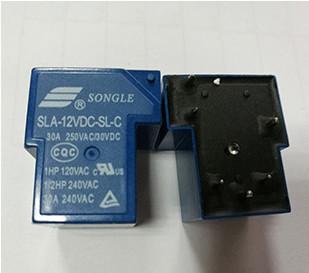

SPST-NO Songle 12V Relay SLA-12VDC-SL-C SRD-12VDC-SL-A General Purpose
SPST-NO Songle 12V Relay SLA-12VDC-SL-C SRD-12VDC-SL-A General Purpose
SPST-NO Songle 12V Relay SLA-12VDC-SL-C SRD-12VDC-SL-A General Purpose
SPST-NO Songle 12V Relay SLA-12VDC-SL-C SRD-12VDC-SL-A General Purpose
SPST-NO Songle 12V Relay SLA-12VDC-SL-C SRD-12VDC-SL-A General Purpose
SPST-NO Songle 12V Relay SLA-12VDC-SL-C SRD-12VDC-SL-A General Purpose
Specifications
Brand Name :
Songle Electronic Components
Model Number :
SLA-12VDC-SL-C SMI-12VDC-SL-A SRD-12VDC-SL-A
Certification :
ROHS
Place of Origin :
China
MOQ :
1
Price :
Negotiated
Payment Terms :
T/T, Western Union
Supply Ability :
50000pcs
Delivery Time :
3-10days
Packaging Details :
box
Category :
Electronic Components LD-P Relays
Details :
General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Production Name :
Relay Power Relays,
Contact Arrangement :
SPST-NO
Contact Form :
1 Form A
Insulation Resistance (MOhm) :
1000(Min)
Relay Construction :
Non-Latching
Mounting :
Through Hole
Operating Temperature (°C) :
-40-85(°C)
Mechanical Life (Operations) :
5000000
Applications :
Boilers, Hot water units Air conditioner, Fan heaters Refrigerator Microwave ovens
Stock :
In Stock
Description

Songle Relays SLA-12VDC-SL-C SMI-12VDC-SL-A SRD-12VDC-SL-A

Electromechanical Relay General Purpose power Relays SLA-12VDC-SL-C SMI-12VDC-SL-A SRD-12VDC-SL-A

Applications:

Boilers, Hot water units
Air conditioner, Fan heaters
Refrigerator
Microwave ovens

Features:

Rated switching capacity: 5 A 277 V AC
Ambient temperature: -40 to +85°C
Excellent heat resistance and tracking performance
Compact size: 6.9 mm(W) X 20.2 mm(L) X 14.9 mm(H)

General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole Specification:

Part number SLA-12VDC-SL-C SMI-12VDC-SL-A SRD-12VDC-SL-A
EU RoHS Compliant
ECCN (US) EAR99
Part Status Active
HTS 8536.49.00.50
Automotive No
PPAP No
Contact Arrangement SPST-NO
Contact Form 1 Form A
DC Coil Voltage (V) 5
Coil Current (mA) 40
Coil Resistance (Ohm) 125
Insulation Resistance (MOhm) 1000(Min)
Maximum Contact Resistance (mOhm) 100
Maximum Pick-Up Voltage 3.75VDC
Minimum Dropout Voltage 0.25VDC
Maximum AC Switching Voltage (V) 277
Maximum Switching Current (A) 5
Maximum Switching Power 1.385kVA
Operate Time (ms) 10
Release Time (ms) 10
Electrical Life (Operations) 200000
Mechanical Life (Operations) 5000000
LED Indicator No
Push to Test Button No
Coil Suppression Diode No
Relay Construction Non-Latching
Mounting Through Hole
Termination Style PC Pin
Number of Terminals 4
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Product Weight (g) 4
Product Length (mm) 20.5
Product Depth (mm) 7.2
Product Height (mm) 15.3
Base part number SLA-12VDC-SL-C SMI-12VDC-SL-A SRD-12VDC-SL-A

SPST-NO Songle 12V Relay SLA-12VDC-SL-C SRD-12VDC-SL-A General Purpose

Cautions for usage of LD-P relays:

Max. applied voltage and temperature rise Proper usage requires that the rated voltage be impressed on the coil. Note, however, that if a voltage greater than or equal to the maximum applied voltage is impressed on the coil, the coil may burn or its layers short due to the temperature rise. Furthermore, do not exceed the usable ambient temperature range listed in the catalog
