Produce Name : 50Hz Negative Pressure Hospital Bed

Product Structure :

The negative pressure isolation ward is composed of a ward frame, a disinfection host, an electric door, and a control system.

Application Range

It is suitable for medical or inspection and quarantine organization

that need to isolate respiratory infectious diseases, or applied to isolate patients who carry pathogenic microorganisms and cut off the spread of pathogens.

Contraindications

none

Product Technical Specification :

Product Features :

● Isolate patients effectively (source of infection);

● Immediately remove pathogens and purify the environment-cut off the route of transmission;

● Protect vulnerable people;

● Intelligent monitoring system design;

● Hidden UV lamp disinfection system;

● Intelligent dimming glass to protect patient privacy;

● Equipped with standard gas terminal interface, fast operation.

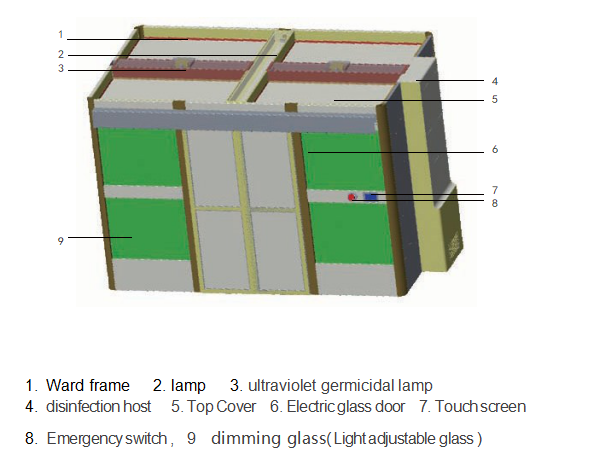

Product structure diagram

1. Ward frame 2. lamp 3. ultraviolet germicidal lamp

• disinfection host 5. Top Cover 6. Electric glass door 7. Touch screen

• Emergency switch , 9 dimming glass(Light adjustable glass )

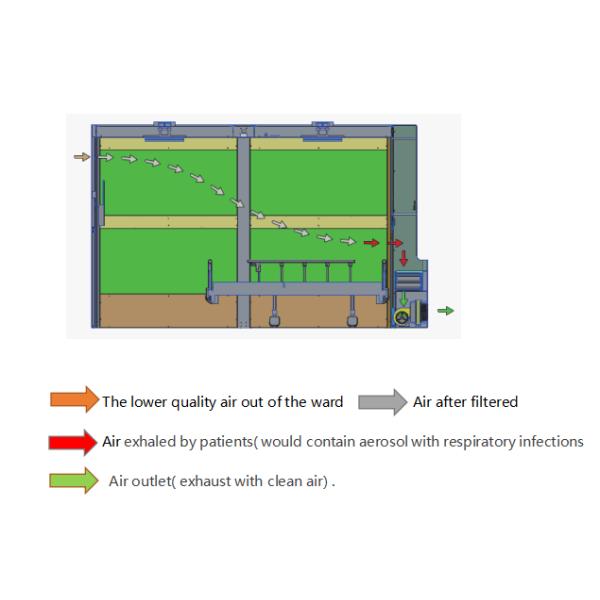

Product working principle

By closing the electric glass door, a relatively hermetic space is formed in the ward. Under the power of the external exhaust fan, the disinfection host which installed beside the head of bed will discharge a large volume of air to generate a slight negative pressure inside the ward; the aerosol exhaled by patients with respiratory infections would enter through the lower air inlet to the disinfection module in the air duct. Then Effectively filter, decompose and remove peculiar smell in the disinfection module. After disinfection and sterilization, the surrounding air is cleanly discharged through the air outlet. It can prevent cross-infection of infectious diseases of the respiratory tract, avoid the probability of infection of medical staff and monitoring personnel, and effectively improve the air quality in the clinic.

The ultraviolet germicidal lamp on the top of the ward is used to sterilize the interior of the ward when there isn’t any people inside .
