IPX6 Jet Nozzle of Diameter 12,5 mm
IPX6 Jet Nozzle of Diameter 12,5 mm
Specifications
Brand Name :
JLX
Model Number :
LX-IPX6H
Certification :
ISO 17025 CNAS & ILAC Test Report
Place of Origin :
Made in China
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
200 per month
Delivery Time :
5 working days
Packaging Details :
Export standard packing
Standard :
IEC60529
Description

This tester is used for the verification test of the degree of protection to the risk of water penetration provided by the

wrapper of equipment in fulfillment of IPX6 according to the IEC 60529.

The device consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve.

The interchangeable nozzles assemble easily to the jet handle. The nozzles are made from stainless steel.


ItemIPX6
Water supplyWater flow rate > 100L/min±5% clean water witho ut inclusion.
It can be achieved by the stainless steel water tank and pressurized equipment.

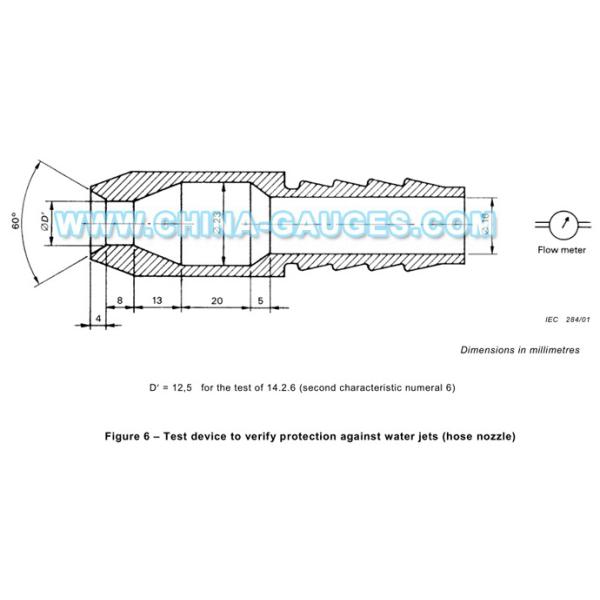

The nozzle diameter12.5 mm
Water flow100±0.625L/min, Flow meter is adjustable.
Testing timeNot less than 1min/m2 (not less than 3 mins)
Environment requirementsDedicated IP waterproof test room whose width is more than 3m, With good function of inflow and drainage. Wall installation.
The distance from jet nozzle to enclosure2.5~3m
Pressure Gauge0 - 2.5 bar ( 0 - 0.25 MPa )
Reference standardsIEC60529,IEC60598-1,IEC60335-1,IEC60745-1
Nozzle MaterialStainless Steel
IncludePressure gauge, Stainless steel nozzle IPX6, Valve for water flow regulation and shut off, Hose connector.

IPX6 Jet Nozzle of Diameter 12,5 mm

Company introduction

HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: Go No Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Plugs and Socket Outlet Gauge, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
