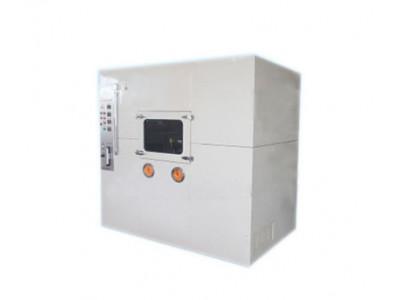

ASTM D 5025 Horizontal Vertical Flame Test Equipment for Wire / Cable
ASTM D 5025 Horizontal Vertical Flame Test Equipment for Wire / Cable
Specifications
Brand Name :
KINGPO
MOQ :
1
Certification :
calibration certificates
Place of Origin :
Mainland China
Price :
To be quoted
Payment Terms :
T/T
Supply Ability :
5 sets per month
Delivery Time :
30 working days
Packaging Details :
safety carton pack or plywood box.
test sample :
Wire / Cable
Flame standard :
ANSI/ASTM D 5207 & UL 1581
burner standard :
ANSI/ASTM D 5025
Gas flow :
ml/min ±0.1%
Description

ASTM D 5025 Horizontal Vertical Flame Test Equipment for Wire / Cable

Product information:

The device is designed and manufactured in accordance with UL1581 standards and related requirements. It is applicable for the finished wire and cable, or soft-line to do 1060 vertical combustion and FT1 test, 1061 cable combustion test, 1080VW-1(vertical specimen) combustion test, 1090 electric wire horizontal specimen combustion test and 1100 horizontal specimen/ FT2 combustion specimen. The testing purpose is to evaluate the spreading flame capacity of electric wire or soft-line when they are on fire.

Technical parameters:

Timing device 9999X0.1s
Combustion angle 0°,20°
Flame standard ANSI/ASTM D 5207 & UL 1581
Blast burner standard ANSI/ASTM D 5025
Temperature measurement MAX 1050°C
Gas flow ml/min ±0.1%
Thermocouple NiCrφ0.5 armour ±0.1%
Flame test

225W/50mm(16.5mm)/84±2S 405 ±10mL/min& 45±5 mm water

500W/125mm(40mm)/54±2S A:965 ±30mL/min&125±25 mm water

B:385 ±15mL/min&552±100 mm water

C:300 ±10mL/ min&600±125 mm water
Temperature controller 16A/D ±0.05%
Copper billet weight 10 ± 0 .05 g (before drill)
Gas category Methane purity>98%(equipped by the user)
Dimension Combustion box:2*2*1.207(M),internal capacity is larger than 4 cube

It is equipped with:▲methane reducing valve:1/2 inches pipe thread,14 pitch of thread,sinistrogyration direction；

▲ flame height gauge

▲ Degreasing cotton for testing.
