UL484 UL1598 UL1993 Water Spray Test Machine 34.5Kpa Spray pressure
UL484 UL1598 UL1993 Water Spray Test Machine 34.5Kpa Spray pressure
UL484 UL1598 UL1993 Water Spray Test Machine 34.5Kpa Spray pressure
UL484 UL1598 UL1993 Water Spray Test Machine 34.5Kpa Spray pressure
UL484 UL1598 UL1993 Water Spray Test Machine 34.5Kpa Spray pressure
UL484 UL1598 UL1993 Water Spray Test Machine 34.5Kpa Spray pressure
Specifications
Brand Name :
KINGPO
MOQ :
1
Certification :
calibration certificate
Place of Origin :
China
Price :
To be quoted
Payment Terms :
T/T
Supply Ability :
5 sets per month
Delivery Time :
25 working days
Packaging Details :
safety wooden box
standard :
UL484 UL1598 UL1993
test sample :
Luminaire
spray nozzle :
3
Pressure gauge :
3
Dimension :
1500×400×1500mm
Spray Pressure :
34.5Kpa
Description

UL484 UL1598 UL1993 Water Spray Test Machine 34.5Kpa Spray Pressure

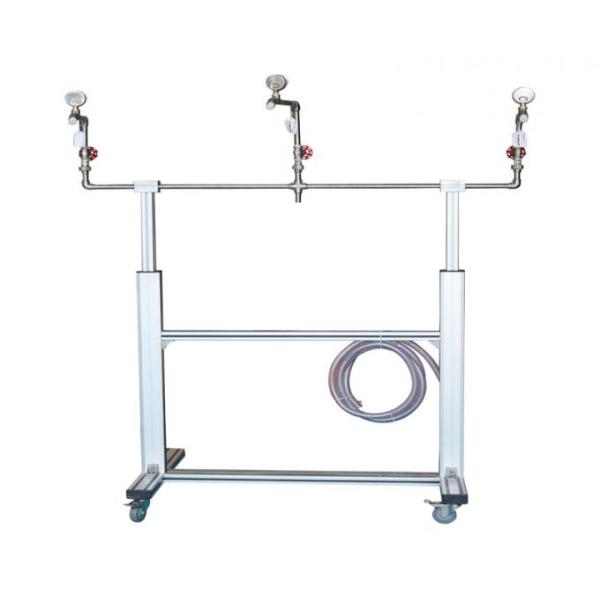

UL1598 Water Spray Test Apparatus

Description:

This equipment is a device intended for use in wet locations shall be subjected to the test described in 24.2 and 24.3. Water shall not enter the ballast or device lampholder compartments.

Confirm to standards:

UL484;

UL1598;

UL1993 and so on.

Test sample: Self-ballasted lamps and lamp adapters and other luminaires.

Feature:

Adopt aluminum structure, splash structure can be adjusted; adopt the Foma wheels, it not only can move but can fix.

Technical parameters:

Model

HH0809

Spray head

3, confirm to UL1598 figure 19.17.2

Nozzle spray angle

45°

Spray pressure

34.5Kpa

Structure

Spray head distance: 710mm,confirm toUL1598 figure19.17.1, can go up and down, control valve for each spray head

Pressure gauge

3, range:0.25MPa, distance between the spray head 75mm

Dimensions

WDH=1500mm×400mm×1500mm, weight:80kg

UL484 UL1598 UL1993 Water Spray Test Machine 34.5Kpa Spray pressure
