Specifications
Brand Name :
KINGPO
MOQ :
1
Certification :
calibration certificates
Place of Origin :
Mainland China
Price :
To be quoted
Payment Terms :
T/T
Supply Ability :
5 sets per month
Delivery Time :
20 working days
Packaging Details :
safety carton pack or plywood box.
Electrode material :
Platinum
height of the drip :
30～40mm
Drip delay :
0.2S (solenoid valve open time)
Drip size :
45 ~ 50 drops / cm3
Test voltage range :
0～600V
Electrical parameters :
1.5KW/127VAC/60Hz
Description

127VAC 60Hz Tracking Test Equipment Platinum Electrode Material

Tracking Test Equipment

product introduction

The test machine is designed and manufactured according to the requirements of the relevant standards, such as IEC60695. It is used for determination of the relative resistance to tracking performance that solid electrical insulating material under the action of an electric field, when the surface exposed to water containing impurities.

If electrical products affected by moisture and impurities environmental, leakage may be caused on the insulation between different polarity live parts or live parts and grounded metal, the generated arc will cause short circuit or electrical erosion due to discharge, even cause fire. The tracking test is a destructive test to insulating material simulating the above situation, to measure and assess the relative resistance to tracking when the insulator is in the effect of electric and impurities in water-containing.

This equipment adopts advanced PLC control system, touch-screen humanized button operating device, high quality materials and professional technology, which make itself has excellent quality, stable and durable performance and beautiful appearance. In addition, automatic drip timing device, accurate electrode pressure sensor display, simple operation and high accuracy improve the efficiency of the test and make our equipment takes a leading position in similar products.

Technical Parameters

Timing device

9999X0.1S Resolution

Drip interval

Adjustable

Electrode material

Platinum

The height of the drip

30～40mm

Electrode specifications

5mm*2mm

Drip delay

0.2S (solenoid valve open time)

Electrode spacing

4±0.1mm

Drip size

45 ~ 50 drops / cm3

Electrode pressure

1±0.05 N

Delay electric circuit

2 ± 0.1S (at 0.5A)

Electrode angle

60°

Test voltage range

0～600V 1.5％

Short circuit voltage drop

8% MAX

Electrical parameters

1.5KW/127VAC/60Hz

Short-circuit current

1±0.1A 1％

Working volume

> 0.5 M³(0.1 M³by option)

Environmental requirements

0 ~ 40 ℃ / ≤ 80% relative humidity

Standards

IEC60695, IEC60112, UL746A, ASTMD3638.

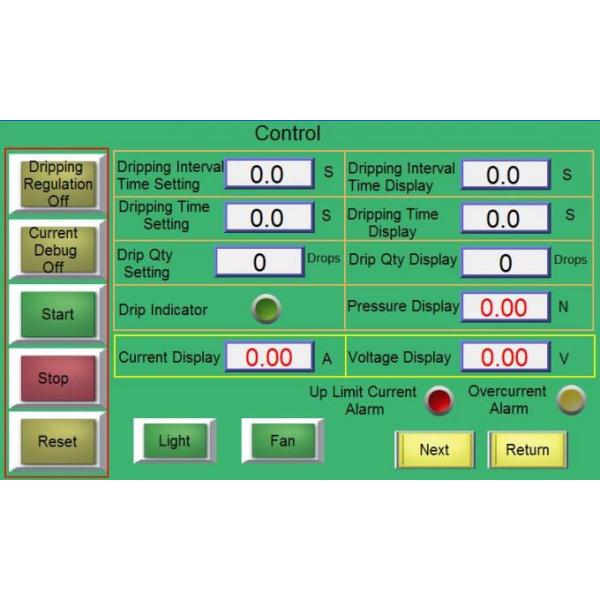

Function Overview of Control System

127VAC 60Hz Tracking Test Equipment Platinum Electrode Material
