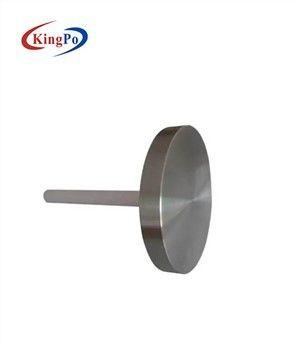

Ф10mm Handle Test Rod For Testing Concealment Of The Reset Button
Ф10mm Handle Test Rod For Testing Concealment Of The Reset Button
Ф10mm Handle Test Rod For Testing Concealment Of The Reset Button
Ф10mm Handle Test Rod For Testing Concealment Of The Reset Button
Ф10mm Handle Test Rod For Testing Concealment Of The Reset Button
Ф10mm Handle Test Rod For Testing Concealment Of The Reset Button
Specifications
Brand Name :
KingPo
MOQ :
1
Place of Origin :
China
Certification :
ISO 17025 Calibration certificate
Price :
To be quoted
Packaging Details :
safety box
Delivery Time :
3~15 working days
Payment Terms :
100% TT in advance
Supply Ability :
10-20 units per month
standard :
IEC 60335-2-16 clause 22.10
test sample :
concealment of the reset button
rod diameter :
Ф76±0.1
Length :
10mm
handle :
Ф10mm
handle length :
100mm
Description

Ф10mm Handle Test Rod For Testing Concealment Of The Reset Button

IEC 60335-2-16 Clause 22.102 Test Rod For Testing Concealment Of The Reset Button Of A Protective Device.

Product information:

The test probe is designed and manufactured according to the IEC 60335-2-16 clause 22.102. It is used to test concealment of the reset button of a protective device.

Appliance is checked by applying a rod in any direction to touch the protective device which is in off state. The diameter of rod is 76 mm ±0.1mm and it has a flat end. There shall be a distance of at least 1.5mm between the rod and the button. The protective device shall not be operated with the rod and not automatically reset.

Technical parameters:

Parameters /Model

HT-I31

Diameter

Ф76±0.1

Length

10

Handle

Ф10

Length of handle

100

Hot Tags: test rod with nylon handle 100mm, China, manufacturers, suppliers, factory, custom, wholesale, IPX8 Pressure Immersion Test Device, IEC 60068-2-75 Impact Testing Machine, IEC60068 Pendulum Hammer Test Apparatus, Clause 22.116 Test Finger Probe, VOC Release Capsule Of Interiors, Portable Microwave Survey Instrument
