Specifications
Brand Name :
KINGPO
MOQ :
1
Control :
Meter
Display :
Digital
Working voltage :
220V/50Hz or 110V/60HZ
iming device :
9999X0.1S
The interval of dropping liquid :
30±5S,adjustable
Wind speed :
0.2m/s
Description

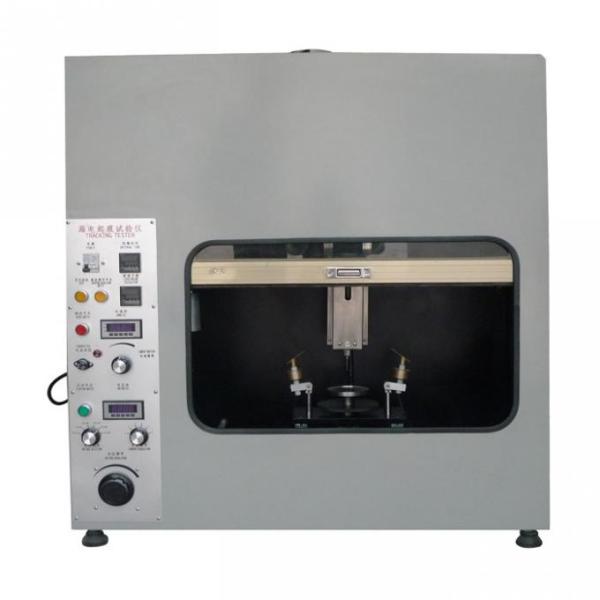

Automated IEC60335-1 Lab Test Equipment CTI PTI Material Insulation

Product information:

We have designed a series of leakage tracking test apparatus for solid insulating materials, the new version one has a additional pressure / frequency regulator , thus , the test equipment can control the water dripping speed and time much more accurately.

This tester is designed and manufactured according to the standard requirement of IEC60112,IEC60695, IEC60335-1,IEC60598-1,UL746A and ASTM D3638-92 and etc..

KingPo has a strong ability in R&D, we have many sucessful cases with offering our proposals and test equipment that achieved our customer's special testing requirements. You are welcome here, if you have any inquries about test equipment.

Technical parameters :

Parameter model LT-2A(0.5m³)
Control Meter
Display Digital
Working voltage 220V/50Hz or 110V/60HZ
Testing voltage 0～600V adjustable,precision 1.5％
Timing device 9999X0.1S
Electrode Platinum electrode and brass electrode each for a pair
Electrode dimension

(5±0.1)×(2±0.1)×(≥12)㎜,

30°slant
Electrode included angle and distance 60°±5°,distance is (4±0.1㎜)
Electrode pressure 1.00N±0.05N(digital display is optional)
The interval of dropping liquid 30±5S,adjustable
Dropping liquid height 35±5mm
Dropping liquid delay 0.2S(solenoid valve opening time)
Dropping liquid size 45～50 drip/cm3
Time-delay circuit 2±0.1S(in 0.5A or larger current)
Short-circuit pressure drop 8% MAX
Short-circuit current 1±0.1A 1％
Wind speed 0.2m/s
With a pressure / frequency regulator, can adjust the dripping pressure and frequency
Environmental requirement 0～40℃,relative humidity≤80%,in the place of no obvious vibration and corrosive gas
conforms to standard

IEC60695, IEC60112,IEC60335-1,IEC60598-1,UL746A and ASTM D3638-92

Other versions (Pictures for reference):

Automated IEC60335 1 Lab Test Equipment CTI PTI Material Insulation

LT-1 (0.1m³)

Automated IEC60335 1 Lab Test Equipment CTI PTI Material Insulation

LT-2 (0.5m³)

Automated IEC60335 1 Lab Test Equipment CTI PTI Material Insulation

LT-3 (0.5m³ PLC Touch Screen Version)
