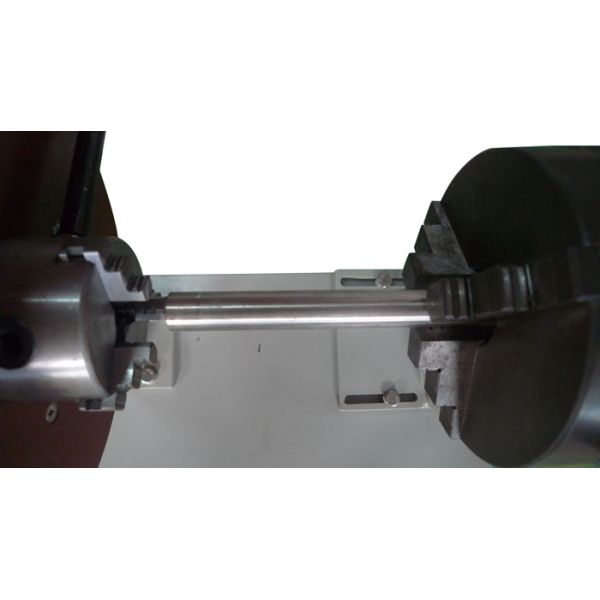

Screwed Glands Tester IEC60598-1 clause 4.12.5 Torque Tests On Glands

Product details:

The device is used to check screwed glands, and conform to the IEC60598-1 clause 4.12.5. Screwed glands shall be fitted with a cylindrical metal rod having a diameter equal to the nearest whole number of millimetres below the internal diameter of the packing. The glands shall then be tightened by means of a suitable spanner, the moment shown in following Table being applied to the spanner for 1 min.

Table 4.2- Torque tests on glands

After the test, the luminaire and the glands shall show no damage.

Technical parameters:

1. It is equipped with 4-40mmstainless steel stick.

2. Weight: 15N,20N,25N,30N 40N*1.

3. The diameter of the Disc:250mm.
