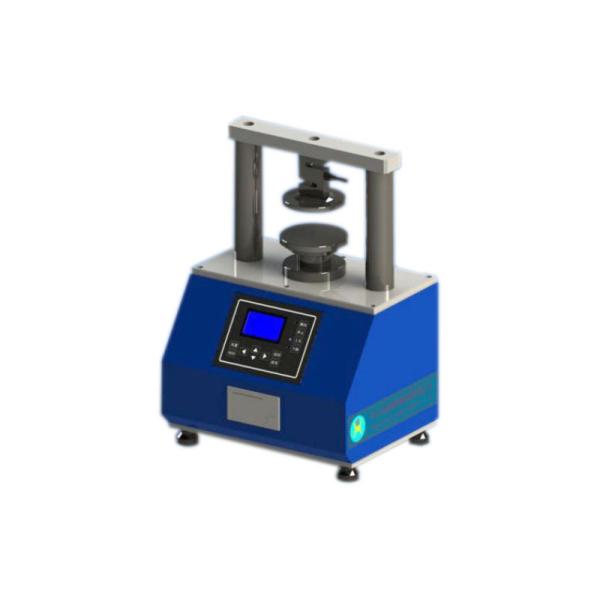

Multifunctional Impact Testing Machine for Paper / Board Crush Test ISO 7263
Multifunctional Impact Testing Machine for Paper / Board Crush Test ISO 7263
Specifications
Brand Name :
HongCe
Model Number :
SH-19
Certification :
Third part calibration certificate(cost additional)
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
20 set per month
Delivery Time :
20 working days
Packaging Details :
plywood
Price :
Negotiatable
Test object :
paper and board
Standard :
ISO 7263
Test :
crust test
Capacity :
10,20,50,100,200kg
Crush plate :
diameter 110mm
Crush base :
diameter 120mm
Crush spacing :
80 mm
Test speed :
12.7mm/min
Description

Paper and Board Crush Test Machine

This device is design and manufacture according to standards TAPPI-T472, T808, T810, T811, T818, JIS-P8126, ISO 7263, ISO/DIS 12192, ISO/CD 13821

This device can use for conduct 5 kinds of paper strength tests, that is, the ring crush test(RCT), flat crush test(FCT), edge crush test(ECT), paste test(PAT), general compression test(CMT).

The testing machine can be used to do full range crush testing to variety of materials

Multifunctional Impact Testing Machine for Paper / Board Crush Test ISO 7263

Specificaitons:

  1. Capacity: 10,20,50,100,200kg (for option)
  2. Crush plate: diameter 110mm
  3. Crush base: diameter 120mm
  4. Crush spacing: 80mm
  5. Test speed: 12.7mm/min
  6. Weight: 48kg
  7. Power supply: AC220V 50Hz
  8. Equipped with edge crush clamp, ring crush clamp and paste test clamp for option
