Water Proof Ingress Protection Test Equipment IPX5 IPX6 Handheld Jet Nozzle
Water Proof Ingress Protection Test Equipment IPX5 IPX6 Handheld Jet Nozzle
Water Proof Ingress Protection Test Equipment IPX5 IPX6 Handheld Jet Nozzle
Water Proof Ingress Protection Test Equipment IPX5 IPX6 Handheld Jet Nozzle
Water Proof Ingress Protection Test Equipment IPX5 IPX6 Handheld Jet Nozzle
Water Proof Ingress Protection Test Equipment IPX5 IPX6 Handheld Jet Nozzle
Water Proof Ingress Protection Test Equipment IPX5 IPX6 Handheld Jet Nozzle
Water Proof Ingress Protection Test Equipment IPX5 IPX6 Handheld Jet Nozzle
Specifications
Brand Name :
HongCe
Model Number :
HH0804
Certification :
Third part calibration certificate(cost additional)
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
20 set per month
Delivery Time :
20 working days
Packaging Details :
plywood
Price :
Negotiatable
Test object :
Enclosures
Standard :
IEC 60529, EN 60529
Test :
Protection against water
The nozzle diameter :
Ф6.3mm; Ф12.5mm
Distance to enclosure :
2.5~3m
Testing time :
not less than 3min
Water flow :
12.5L/min; 100L/min
Pressure gauge :
0~0.25MPa
Description

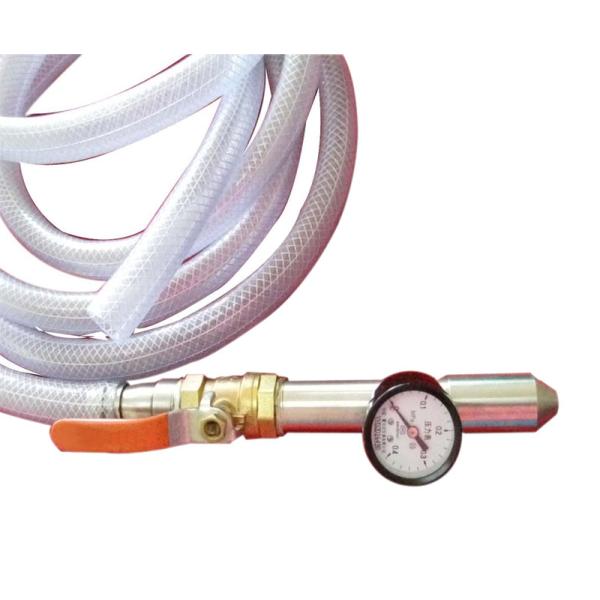

Handheld Jet Nozzle Tester HH0804

Description:

This is to testing of IPX5 and IPX6 protection aginst water of electronic appliances, lamps, electrical cabinets, electrical components, car, motorcycle, electrical products.

Confirm to standards:

IEC 60529 IPX5, IPX6;

EN 60529 IPX5, IPX6;

IEC 60884-1;

IEC 60598-1;

IEC 60335-1 and so on.

Test Sample: A water-proof test apparatus suitable for diverse electrical items, including electronic appliances, lamps, cabinets, components, vehicles (cars, motorcycles), and specific electrical products like automotive instruments, switches, and micro motors.
Feature: Equipped with a pressure gauge, enabling operation through nozzle replacement. It can integrate with a comprehensive waterproof system.

Technical parameters:

Model HH0804-1 HH0804-2
Item IPX5 Jet nozzle IPX6 Jet nozzle

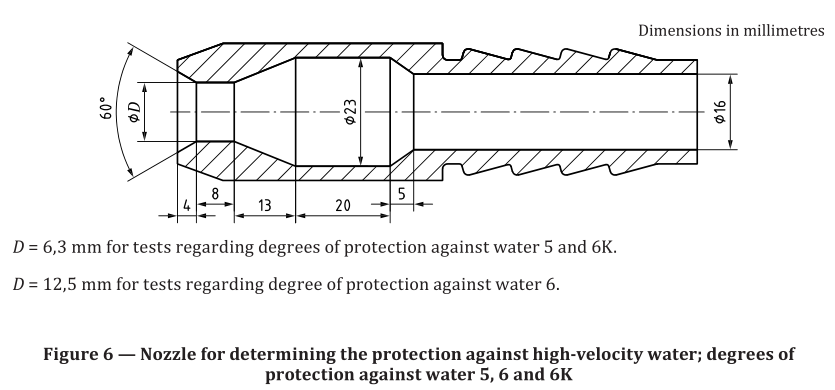

The nozzle diameter Ф6.3mm Ф12.5mm
Water flow 12.5±0.625L/min, Flow meter is adjustable 100±5 L/min, Flow meter is adjustable
Water supply

Water flow rate ＞12.5L/min±5% clean water without inclusion.

It can be achieved by the stainless steel water tank and pressurized equipment

Water flow rate ＞100L/min±5% clean water without inclusion.

It can be achieved by the stainless steel water tank and pressurized equipment
The distance from jet nozzle to enclosure 2.5~3m
Testing time 1min/m²(not less than 3 min)
Pressure gauge 0~0.25MPa
Site requirements

Dedicated IP waterproof test room whose width is more than 3m,

With good function of inflow and drainage. Wall installation
