Merchanical Strength Cable Testing Equipment For Completed Flexible Cables
Merchanical Strength Cable Testing Equipment For Completed Flexible Cables
Merchanical Strength Cable Testing Equipment For Completed Flexible Cables
Merchanical Strength Cable Testing Equipment For Completed Flexible Cables
Merchanical Strength Cable Testing Equipment For Completed Flexible Cables
Merchanical Strength Cable Testing Equipment For Completed Flexible Cables
Specifications
Brand Name :
HongCe
Model Number :
HDX1302
Certification :
Third part calibration certificate(cost additional)
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
20 set per month
Delivery Time :
20 working days
Packaging Details :
plywood
Price :
Negotiatable
Test object :
Completed Flexible Cables
Standard :
IEC60245-1, IEC60245-2
Test :
Flexing test
Current loading :
0-25A
Voltage loading :
0-400V
Testing speed :
0.33m/S
Testing distance :
1000±20mm
Suitable cores :
2-18
Nominal cross-sectional area :
0.2~4mm2
Diameter of pulleys :
3 piece, 60, 80, 120, 160, 200 for options
Description

Flexible Cables Flexing Tester HDX1302

Test object Completed flexible cables
Test Flexing test
Standard IEC60245-1, IEC60245-2 figure 1
Current loading 0-25A
Voltage loading 0-400V
Testing speed 0.33m/S
Testing distance 1000mm
Suitable cores 2-18
Nominal cross-sectional area 0.2~4mm2
Diameter of pulleys 3 piece, 60, 80, 120, 160, 200 for options
Combined weights 0.5kg, 1kg, 1.5kg, 2kg, 2.5kg, 3kg, 3.5kg, 4kg, 6kg, 7.5kg, 8kg
Fault testing Current interruption, short circuit between conductors, test and short circuit between the pulley.
Power supply 220VAC 50Hz

Description:

This device is used for checking mechanical strength of completed flexible cables. This test does not apply to flexible cables with cores of nominal cross-sectional area greater than 4mm2 and cables having more than 18 cores laid up in more than two concentric layers.

According to the standard IEC60245-1 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 1:General requirements, IEC60245-2 clause 3.1 Figure 1 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 2: Test methods.

Test sample: Completed flexible cables.

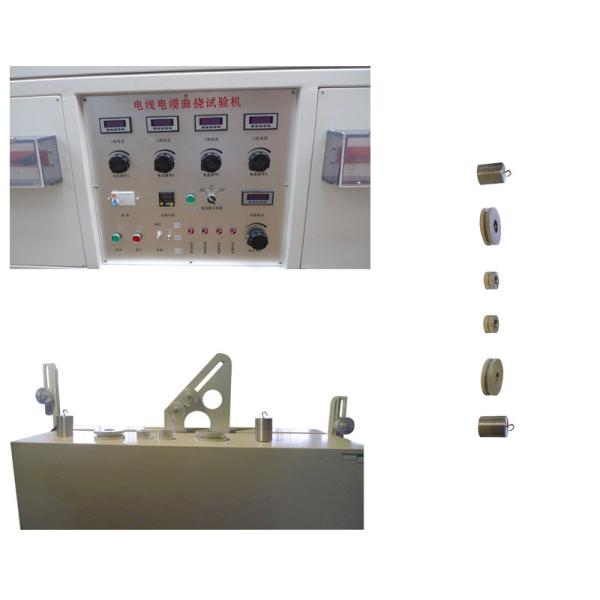

Feature: This cable tester consists of a carrier C (see IEC60245-2 Figure 1),a driving system for the carrier and four pulleys for each sample of cable to be tested. The carrier C supports two pulleys A and B, which are of the same diameter. The two fixed pulleys, at either end of the apparatus, may be of a different diameter from pulleys A and B, but all four pulleys shall be so arranged that the sample is horizontal between them. The carrier makes cycles (forward and backward movements) over a distance of 1 m at an approximately constant speed of 0,33m/s between each reversal of the direction of movement. A sample of flexible cable about 5 m long shall be stretched over the pulleys, each end being loaded with a weight. The mass of this weight and the diameter of pulleys A and B are given in following table.
