40 Degree Celsius Cable Testing Equipment Low Temperature Test Cold Chamber
40 Degree Celsius Cable Testing Equipment Low Temperature Test Cold Chamber
40 Degree Celsius Cable Testing Equipment Low Temperature Test Cold Chamber
40 Degree Celsius Cable Testing Equipment Low Temperature Test Cold Chamber
40 Degree Celsius Cable Testing Equipment Low Temperature Test Cold Chamber
40 Degree Celsius Cable Testing Equipment Low Temperature Test Cold Chamber
Specifications
Brand Name :
HongCe
Model Number :
HDX1309
Certification :
Third part calibration certificate(cost additional)
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
20 set per month
Delivery Time :
20 working days
Packaging Details :
plywood
Price :
Negotiatable
Test object :
cable
Standard :
IEC60811-1-4
Test :
Low temperature
Volume :
600*500*500mm
Power :
3.5KW
Inner material :
SUS 304
Outer material :
SUS 304
Working current :
15A
Temperature range :
~-40 degress celsius
Cooling rate :
about 45min from ambient to -40
Description

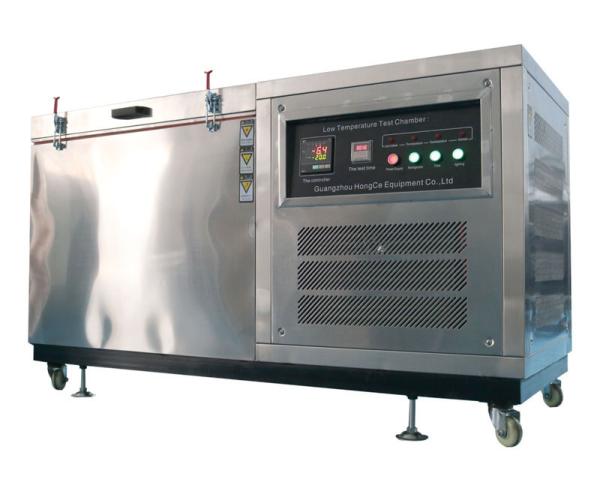

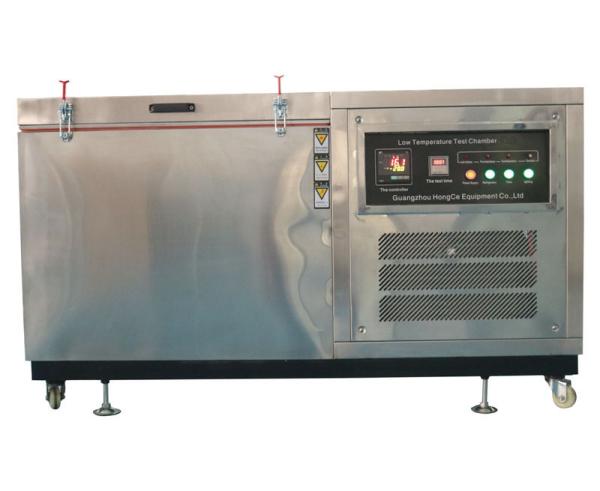

Low-Temperature Test Chamber HDX1309

Technical parameters:

Inner test size L600 × H500 × W500mm
Outer chamber size L1700 × H950 × W850mm
Inner chamber material stainless steel plate(SUS#304)
Outer chamber material stainless steel plate(SUS#304)
Heat preservation material low temperature tank: high density PU foam
low temperature tank: high density PU foam 3.5KW
Supply voltage AC220V 50HZ
Working current 15A
Temperature range room temperature～-40℃
Cooling time room temperature～-40℃ about 45 minutes to reach
Weight about 200KG

Description:

This device is intended to provide a low temperature test environment, Suitable for low temperature test of products such as electric wire and cable, electrical accessories, etc..

According to the standard IEC60811-1-4, common test methods for insulating and sheathing materials of electric and optical cables-part 1-4:Methods for general application-Test at low temperature.

Test sample: wire and cable, material and product to be used in low temperature environment

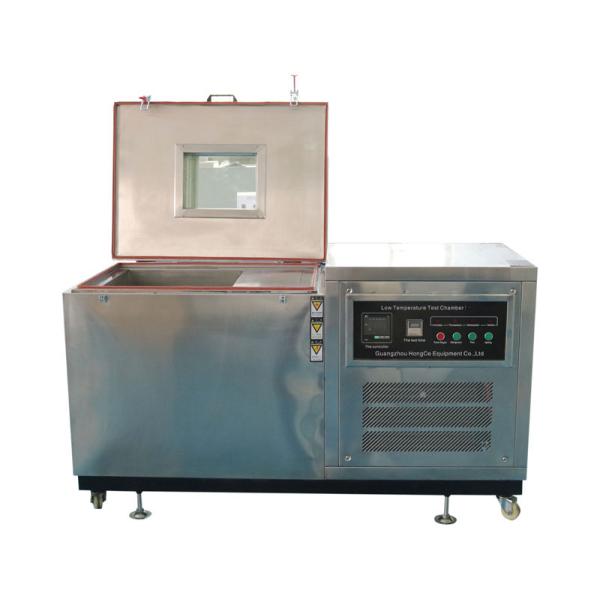

Feature: The low temperature test chamber mainly provides the low temperature environment of (0℃~-40℃) , to open the seal cover plate on the low temperature chamber, can clearly see the inside of the low temperature chamber through the transparent organic glass, mainly for proceeding variety of low temperature test.

1. Inner test chamber size: L600 × H500 × W500mm

2. Outer chamber size: L1700 × H950 × W850mm

3. Inner chamber material: stainless steel plate(SUS#304)

4. Outer chamber material: stainless steel plate(SUS#304)

5. Heat preservation material: low temperature tank: high density PU foam

6. Total power: 3.5KW

7. Supply voltage: AC220V 50HZ

8. Working current: 15A

9. Temperature range: room temperature～-40℃

10. Cooling time: room temperature～-40℃ about 45 minutes to reach

11. Weight: about 200KG
