IPX7 IPX8 Ingress Protection Test Equipment / EImmersion and Water Tightness Pressure Tester 0 ~ 3Bar
IPX7 IPX8 Ingress Protection Test Equipment / EImmersion and Water Tightness Pressure Tester 0 ~ 3Bar
IPX7 IPX8 Ingress Protection Test Equipment / EImmersion and Water Tightness Pressure Tester 0 ~ 3Bar
IPX7 IPX8 Ingress Protection Test Equipment / EImmersion and Water Tightness Pressure Tester 0 ~ 3Bar
Specifications
Brand Name :
HongCe
Model Number :
HH0816
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, L/C
Supply Ability :
10 sets per month
Delivery Time :
30 days
Packaging Details :
Plywood
Certification :
Calibration Certificate (cost additional)
Price :
Negotiation
Pressure vessel :
Stainless steel tank, diameter 0.6 meter, height 1.2 meter
Pressure adjustment range :
0 ~ 3bar
Pressure system :
Stainless steel pump + frequency converter
Material :
SUS304 stainless steel
Lifting device :
Portable stainless steel lift bracket
Thickness of stainless steel tank :
3mm
Description

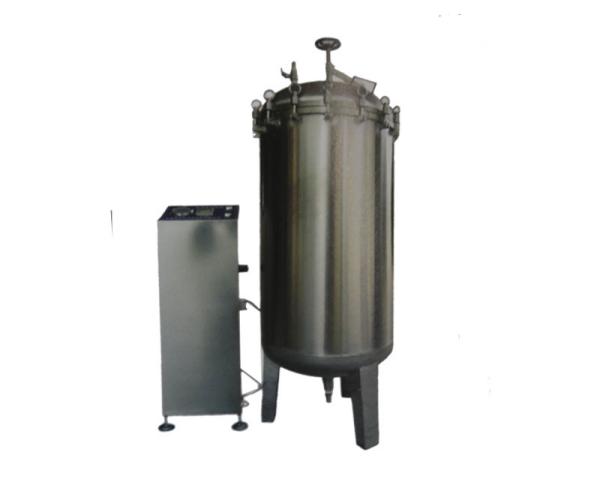

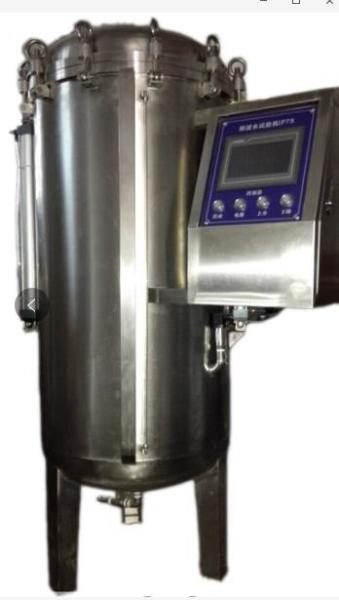

IPX7/IPX8 Immersion and Water Tightness Pressure Tester

Standard

IEC60529 degree of protection provided by enclosures (IP Code) of the IPX7 IPX8, IEC60884-1, IEC60335-1, IEC60598-1.

Application

Assessment of enclosures and sealing element whether can ensure good performance of equipment and components after the water test or during the test.

Test sample

Products with IPX7 and IPX8 degree waterproof test.

Parameters

Pressure vessel Stainless steel tank, diameter 0.6 meter, height 1.2 meter
Pressure adjustment range 0 ~ 3bar (can be customized)
Pressure system Stainless steel pump + frequency converter
Material SUS304 stainless steel
Lifting device Portable stainless steel lift bracket
Water level display scale plus water level tube
Time control 0～99minutes 99seconds
Pressure holding range Atmospheric pressure－0.3MPa, setting pressure directly (touch screen )
Thickness of stainless steel tank 3mm

Feature

1. Entire tank adopts SUS304# stainless steel high accuracy integrated forming,ensure it will not rust and water-tight after long time use, adjust the test pressure according to the high precision pressure regulating valve. Pressure regulating valve with pressure stabilizing function, it can keep stable test pressure all the time after the pressure has been adjusted.

2.The pot cover is rotated and lifted by the screw thread, it can rotate and move away from the hole after lifting.

3.The whole tank surface blasting treatment, smooth and beautiful.

4.Control system: Adopt touch screen controller , Combining PLC and electronic pressure sensor to form loop control, with higher accuracy ,better operation experience, higher grade .


Safety protection device

1. Power overload and short circuit protection

2. Grounding protection

3. Water shortage protection

4. Warning alarm
