Specifications
Brand Name :
HongCe
Model Number :
HT-I07T1
Certification :
Calibration certificate(cost additional)
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, L/C, T/T
Supply Ability :
20 sets per month
Delivery Time :
7 days
Packaging Details :
Aluminum box
Parameters :
S4±0.05
Description

IEC 60065:2014 clause 9.1.5 Ragid Test Probe with Force

Standard:

Conforms to IEC 60065:2014 clause 9.1.5, IEC61032 figure 3 test probe C, IEC529 IPX3, IEC60065 and etc.

Application:

It is used to verify the protection of persons against access to hazardous parts, and to verify the mechanical strengthen of openings in the enclosure or internal barriers.

Test sample:

Electrical outlet or similar electrical appliances and other hazardous live parts.

Feature:

It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .There are two kinds of shell that can be chosen: the nylon shell(for anti-electric shock test) and stainless steel shell(for strength test).

Parameters:

Parameters /Model HT-I07 HT-I07T1 HT-I07T2
Name Rigid Finger Probe Rigid Finger Probe with 50N force Rigid Finger Probe with 75N force
1 20 0 -0.05 20 0 -0.05 20 0 -0.05
2 80±0.2 80±0.2 80±0.2
3 R2±0.05 R2±0.05 R2±0.05
4 S4±0.05 S4±0.05 S4±0.05
5 37o 0 -10’ 37o 0 -10’ 37o 0 -10’
6 14 o 0 -10’ 14 o 0 -10’ 14 o 0 -10’
7 Ф12 0 -0.05 Ф12 0 -0.05 Ф12 0 -0.05
8 Ф50 Ф50 ----
9 5±0.5 5±0.5 ----
10 ---- With force of 0-50N With force of 0-75N

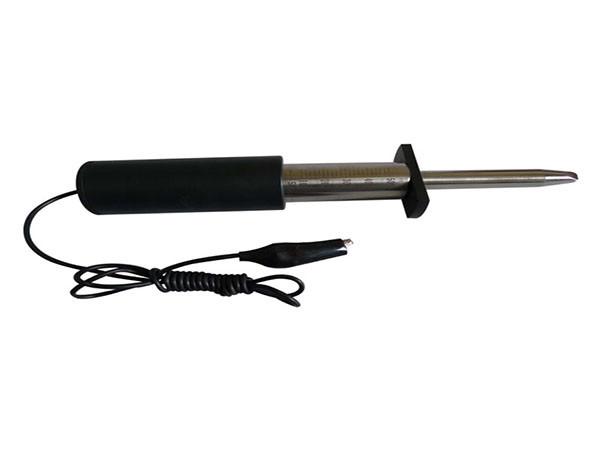

Picture for reference:

Anti - Electric Shock Ragid Test Probe With Force / Amphenol Connector
