Specifications
Brand Name :
HongCe
Model Number :
HDX1314
Certification :
Calibration Certificate(cost additional)
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T
Delivery Time :
30 days
Packaging Details :
Plywood
Price :
Negotiatable
Standard :
IEC 60227-2 clause 3.3
Drop Height :
0.5m
Drop Mode :
Electromagnetic release
Snatch weight :
5N
Load Current :
0-1A
Description

Snatch Tester for Polyvinyl Chloride Insulated Cables IEC 60227-2

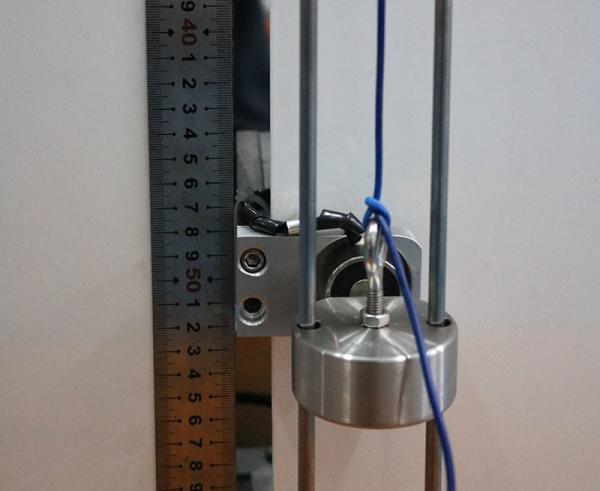

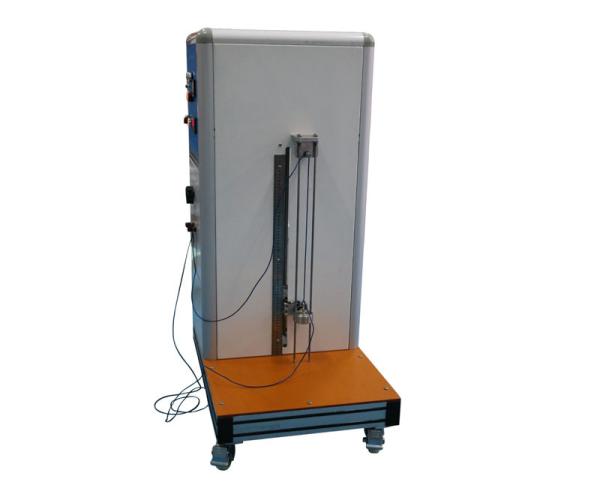

The cord snatch tester is designed and manufactured according to IEC 60227-1 clause 5.6.3.3, IEC 60227-2 clause 3.3. It is used to testing the damage degree of flexible cord when applying a certain gravity pull. Test object of rated voltages up to and including 450/750V polyvinyl chloride insulated cables.

The test device is easy to operate, can preset the number of test times (up to 999999 times), the test speed can be adjusted, load current 0-1A stepless adjustable, and with the current conduction detection function. Tester will stop automatically when preset test times completed or detected conduction interrupt, record the tested times and alarm with sound. The equipment is manufactured according to the standard and the sample fixture matches the multiple samples. The utility model has the advantages of beautiful appearance, strong function and high reliability, and is an indispensable equipment for cable manufacturers and laboratory testing.

Technical Parameters:

Item Name Parameters
Input Power 230V, 50Hz
Work station 1 station
Drop height 0.5m
Drop mode Electromagnetic release, free fall
Electromagnetic chuck lift speed Adjustable
Test times 0-999999, preset
Snatch weight 5N*1
Conduction detection The test device is equipped with power supply terminals for the test samples, and it has a conduction detection function, if there is no current go through the test sample, the indicator light turns on, alarm occurs and the test stops, records the real-time test times
Output voltage 12V
Output current

0-1A

Two Test Modes:

  1. No load test: Press 【LOAD POWER OFF】, test without current, do not detect conduction. Tester will stop when preset test times completed;
  2. Load test: test with current, detecting conduction during test. Must press【LOAD POWER ON】start current output and adjust test current to 0.1A or more.
