Specifications
Brand Name :
HongCe
Model Number :
LT-2A
Certification :
TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
15 set per month
Delivery Time :
30 days
Packaging Details :
Plywood
Standard :
IEC60112
Electrode material :
Platinum and brass
Electrode angle :
60°±5°
Electrode distance :
(4±0.1㎜)
Dropping liquid height :
35±5mm
Description

Automated IEC60335-1 Lab Test Equipment CTI PTI Material Insulation

Product information:

We have designed a series of leakage tracking test apparatus for solid insulating materials, the new version one has a additional pressure / frequency regulator , thus , the test equipment can control the water dripping speed and time much more accurately.

This tester is designed and manufactured according to the standard requirement of IEC60112,IEC60695, IEC60335-1,IEC60598-1,UL746A and ASTM D3638-92 and etc..

HongTong has a strong ability in R&D, we have many sucessful cases with offering our proposals and test equipment that achieved our customer's special testing requirements. You are welcome here, if you have any inquries about test equipment.

Technical parameters :

Parameter model

LT-2A(0.5m³)
Control Meter
Display Digital

Working voltage

220V/50Hz or 110V/60HZ

Testing voltage

0～600V adjustable,precision 1.5％

Timing device

9999X0.1S

Electrode

Platinum electrode and brass electrode each for a pair

Electrode dimension

(5±0.1)×(2±0.1)×(≥12)㎜,

30°slant

Electrode included angle and distance

60°±5°,distance is (4±0.1㎜)

Electrode pressure

1.00N±0.05N(digital display is optional)

The interval of dropping liquid

30±5S,adjustable

Dropping liquid height

35±5mm

Dropping liquid delay

0.2S(solenoid valve opening time)

Dropping liquid size

45～50 drip/cm3

Time-delay circuit

2±0.1S(in 0.5A or larger current)

Short-circuit pressure drop

8% MAX

Short-circuit current

1±0.1A 1％

Wind speed

0.2m/s
With a pressure / frequency regulator, can adjust the dripping pressure and frequency

Environmental requirement

0～40℃,relative humidity≤80%,in the place of no obvious vibration and corrosive gas

conforms to standard

IEC60695, IEC60112,IEC60335-1,IEC60598-1,UL746A and ASTM D3638-92

Other versions (Pictures for reference):

Automated IEC60335-1 Lab Test Equipment CTI PTI Material Insulation

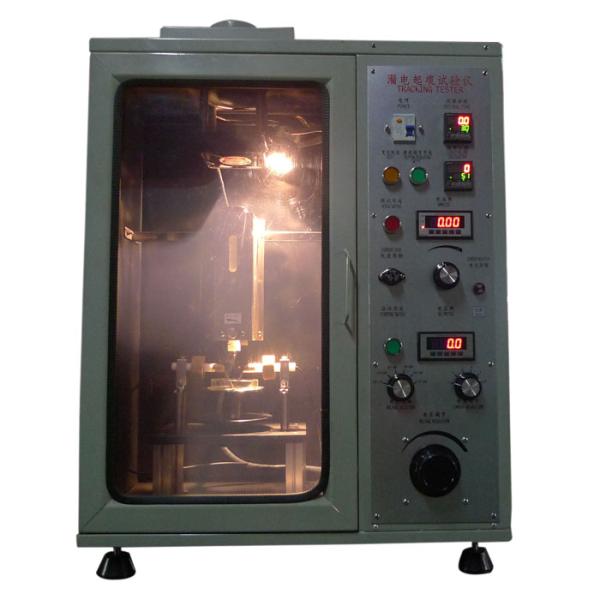

LT-1 (0.1m³)

Automated IEC60335-1 Lab Test Equipment CTI PTI Material Insulation

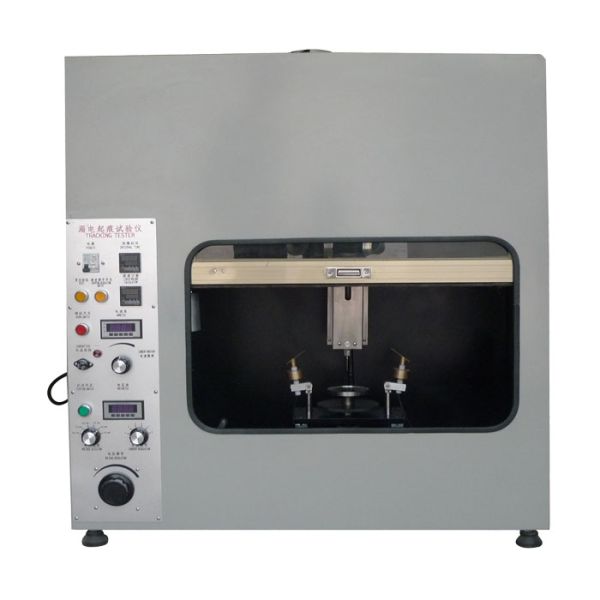

LT-2 (0.5m³)

Automated IEC60335-1 Lab Test Equipment CTI PTI Material Insulation

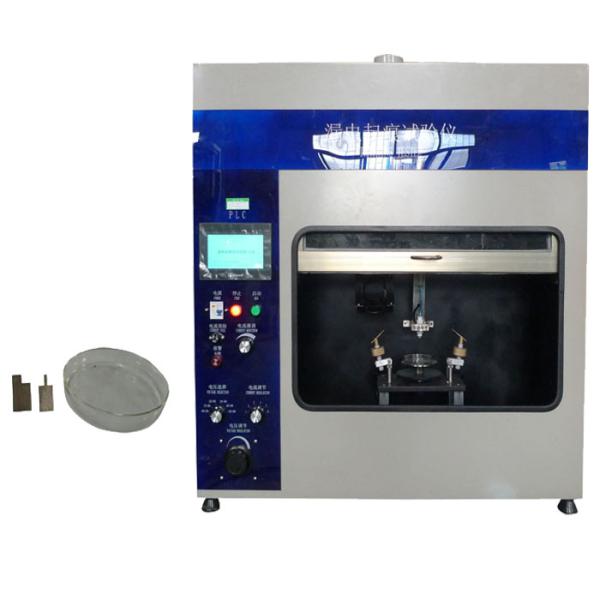

LT-3 (0.5m³ PLC Touch Screen Version)
