Refrigerator Home Appliance Testing Equipment Door Endurance Test
Refrigerator Home Appliance Testing Equipment Door Endurance Test
Refrigerator Home Appliance Testing Equipment Door Endurance Test
Refrigerator Home Appliance Testing Equipment Door Endurance Test
Refrigerator Home Appliance Testing Equipment Door Endurance Test
Refrigerator Home Appliance Testing Equipment Door Endurance Test
Specifications
Brand Name :
HongCe
Model Number :
HJ0636C
Certification :
Calibration Certificate(cost additional)
Place of Origin :
China
MOQ :
1 set
Price :
Negotiatable
Payment Terms :
T/T
Supply Ability :
10 Sets per month
Delivery Time :
50 days
Packaging Details :
Plywood
product name :
Refrigerator Door Endurance Testing Equipment
Usage :
Home Appliance Testing Equipment
Standard :
IEC 60335-2-24, IEC 62552
Driving mode :
Servo motor
Test stroke :
0-100mm
Testing software :
Software in English
Control system :
PLC programmable control
Test stations :
2 stations
Description

Refrigerator Home Appliance Testing Equipment Door Endurance Test

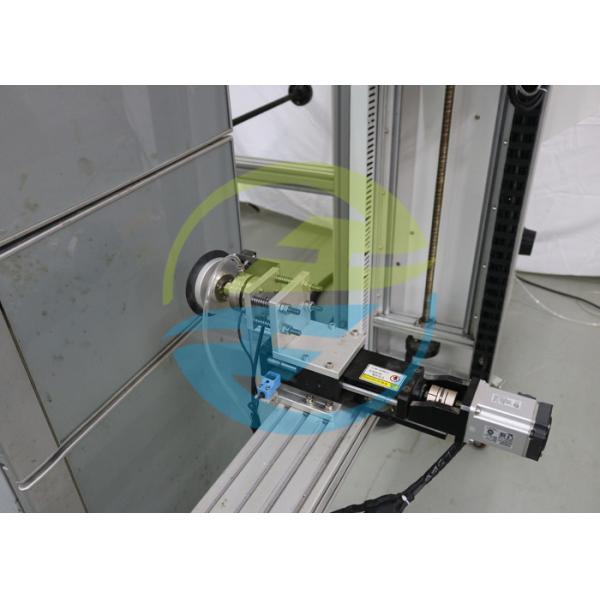

Description of Refrigerator Door Endurance Testing Equipment:

The Refrigerator Door Endurance Testing Equipment is used to check the durability of the hingesand handles of doors, lids and drawers.

The following measurements can be performed:

Opening and closing external door

Opening and closing external drawer

Standard of Home Appliance Testing Equipment:

IEC 60335-2-24 Household and similar electrical appliances – Safety –Part 2-24: Particular requirements for refrigerating appliances, ice-cream appliances and ice-makers clause 22.112;

IEC 62552:2007 Household refrigerating appliances - Characteristics and test methods clause 11.2 &figure 4, clause 11.3 &figure 5

Feature of Home Appliance Testing Equipment:

The testing equipment used PLC intelligent control system, touch screen humanized operation interface can record and display the test data.

Load output to the tested sample is adjustable and display.

The test times, test speed, test stroke, open / close door pull force can be preset and real-time display on the touch screen.

Parameter of Home Appliance Testing Equipment:

Item Parameters
Power supply AC220V±10%/50-60Hz
Test stations 2 stations, refrigerator door test station, refrigerator drawers test station,
Operation interface 7-inch color LCD touch screen
Driving mode Servo motor
Control system PLC programmable control
Test times 0～999999 times, can be preset and displayed
Door open /close angle 0-130°, can be preset
Test stroke of open drawers 0-100mm can be preset
Test environment Atmospheric pressure 80 ~ 106kpa; ambient temperature 5 ~ 40 ° C; relative humidity (20 ~ 80)% RH; use place: no vigorous shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gas, good heat dissipation
Refrigerator Home Appliance Testing Equipment Door Endurance Test
Refrigerator Home Appliance Testing Equipment Door Endurance Test
