IP Testing Equipment Test Probe A Made Of Nylon Handle And Steel Ball IEC60529 IP1
IP Testing Equipment Test Probe A Made Of Nylon Handle And Steel Ball IEC60529 IP1
IP Testing Equipment Test Probe A Made Of Nylon Handle And Steel Ball IEC60529 IP1
IP Testing Equipment Test Probe A Made Of Nylon Handle And Steel Ball IEC60529 IP1
IP Testing Equipment Test Probe A Made Of Nylon Handle And Steel Ball IEC60529 IP1
IP Testing Equipment Test Probe A Made Of Nylon Handle And Steel Ball IEC60529 IP1
Specifications
Brand Name :
HongCe
Model Number :
HT-I01
Certification :
Third part calibration certificate(cost additional)
Place of Origin :
China
MOQ :
1 set
Price :
Negotiatable
Payment Terms :
T/T
Supply Ability :
30 set per month
Delivery Time :
3 working days
Packaging Details :
Aluminum box
handle diameter :
10 mm
Material :
Nylon + stainless steel
Handle length (Nylon) :
100 mm
Sphere diameter :
50 mm
Standards :
IEC61032, IEC60529
guard diameter :
45mm
Oem :
Yes
Warranty :
1 Year
Description

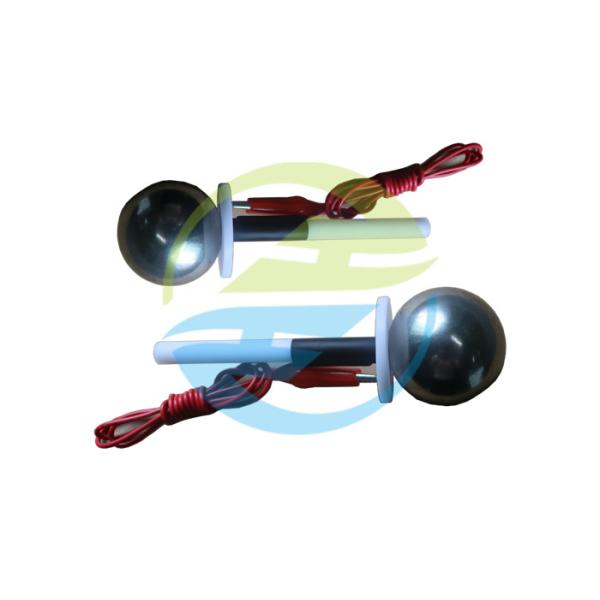

IP Testing Equipment Test Probe A Made of Nylon Handle and Steel Ball IEC60529 IP1

Product introduction for IP Testing Equipment:

This probe is intended to verify protection of persons against access to hazardous parts for an IP1 Code. Also used to verify protection from access with the back of the hand for an IP suffix A code.

It complies with IEC61032 Fig 1, without dynamometer. Sphere is made of bearing steel. The handle is made of nylon.

Standard for IP Testing Equipment:IEC61032 fig.1, IEC60529 IP1 and IEC60065.

Application for IP Testing Equipment:It is used for inspection to prevent the human body from touching dangerous parts, also used for protection inspection to prevent the back of the hand from being touched.

Test sample for IP Testing Equipment:Easily accessible enclosure live parts or mechanical parts.

Feature for IP Testing Equipment:The test probe is made of nylon handle and steel ball, which can also be customized. It could be equipped with terminals for electric shock prevention, or with M6 threaded holes at the end of the handle (use with push-pull force gauges).

Parameters:

Model HT-I01
Name Test probe A
Rigid test ball diameter (metal) SФ50+0.05 0
Baffle diameter (nylon) Ф45±0.2
Baffle thickness 4
Handle diameter Ф10
Handle length (nylon) 100
Force ----
