IEC60529 IP Testing Equipment Test Probe D For IP4X 1mm
IEC60529 IP Testing Equipment Test Probe D For IP4X 1mm
IEC60529 IP Testing Equipment Test Probe D For IP4X 1mm
IEC60529 IP Testing Equipment Test Probe D For IP4X 1mm
IEC60529 IP Testing Equipment Test Probe D For IP4X 1mm
IEC60529 IP Testing Equipment Test Probe D For IP4X 1mm
Specifications
Brand Name :
HongCe
Model Number :
HT-I04
Certification :
Third part calibration certificate(cost additional)
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
100 set per month
Delivery Time :
5 working days
Packaging Details :
Aluminum box
Product name :
Test Probe D
Dam- Sphere Diameter :
35mm
Rod Diameter (mm) :
Ф1
Rod Length (mm) :
100±0.2
Probe material :
stainless steel
IP rating :
IP4
Handle Diameter (mm) :
Ф10
Handle Length (mm) :
100
Description

IEC60529 IP Testing Equipment Test Probe D for IP4X 1mm Probe

Product Introduction for IP Testing Equipment:

The 1.0mm test rod conforms to IEC61032 figure 4 named test probe D and IEC60529 for IP4 and suffix D codes. It is used to verify the protection of persons against access to hazardous parts, also used to verify the protection against access with a tool.

The handle and stop face are made of nylon. The rod is made of stainless steel.

This probe has a terminal clamp to check the continuity during the test, also has a M6 threaded hole at the end of the handle, which can be equipped with a force gauge for force test.

Technical Parameters for IP Testing Equipment:

Model HT-I04
Name Test Probe D
Rod Diameter (mm) Ф1
Rod Length (mm) 100±0.2
Rod Material Stainless Steel
Stop Face Diameter Ф35±0.2
Stop Face Material Nylon
Handle Diameter (mm) Ф10
Handle Length (mm) 100
Handle Material Nylon
Standard IEC60132 Figure 4

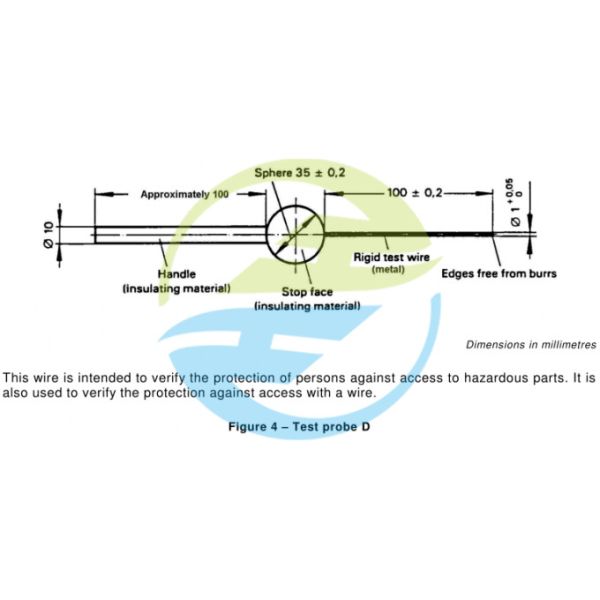

Product structure diagram:

IEC60529 IP Testing Equipment Test Probe D For IP4X 1mm

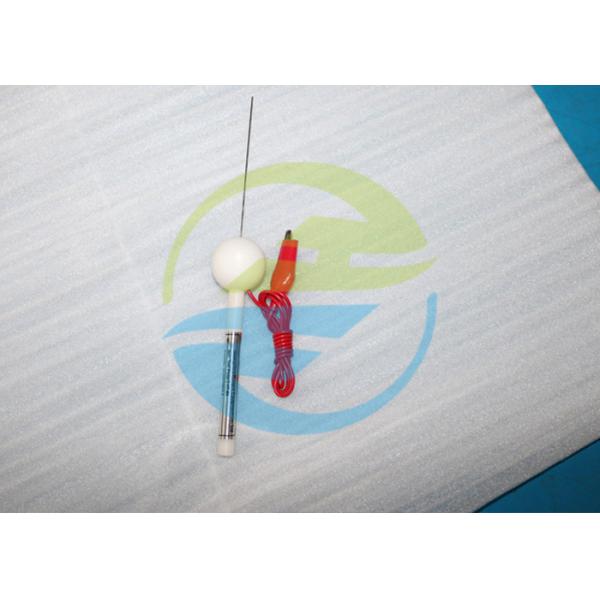

Product detail picture:

IEC60529 IP Testing Equipment Test Probe D For IP4X 1mm
