Specifications
Brand Name :
HongCe
Model Number :
HC9921
Certification :
calibration certificate
Place of Origin :
China
MOQ :
1 set
Price :
Negotiatable
Payment Terms :
T/T
Supply Ability :
10 set /month
Delivery Time :
25 days
Packaging Details :
plywood
Product name :
Pendulum Hammer Test Apparatus
Warranty :
1 Year
Standard :
IEC60884-1
Application :
Mechanical strength test
Function :
Impact Test
Pendulum Length :
1000mm
Pendulum weight :
100±1g
Striking element :
150g
Description

IEC60884-1 Impact Testing Machine Pendulum Hammer Test Apparatus For 2J And Below

Standard: IEC60884-1 2013 clause 24.1 and figure 22~26, IEC60669-1, IEC60068-2-75

Application: This device is suitable for mechanical strength test to plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories for household and similar purposes.

Test sample: plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories.

Feature: The mounting bracket can be moved up and down, left and right moving, and the impact angle can be adjusted. The device is a low energy pendulum impact device for 2J and below.

Parameters:

1. Pendulum: Length: 1000mm; external diameter: 9mm; steel pipe wall thickness: 0.5mm; material: steel; weight: 100±1g

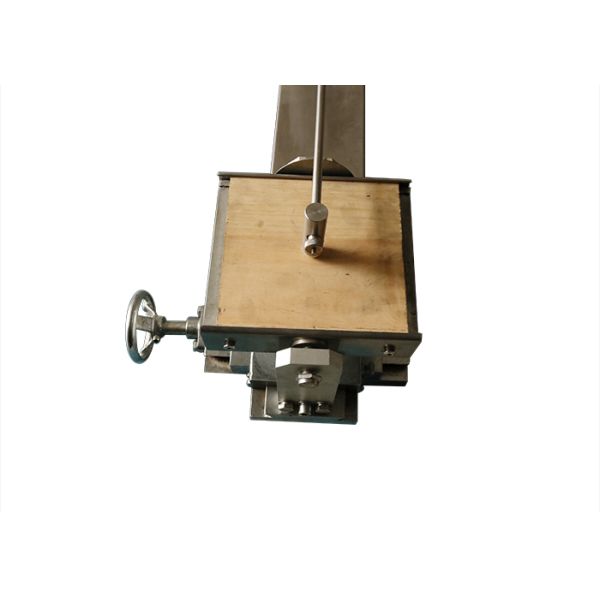

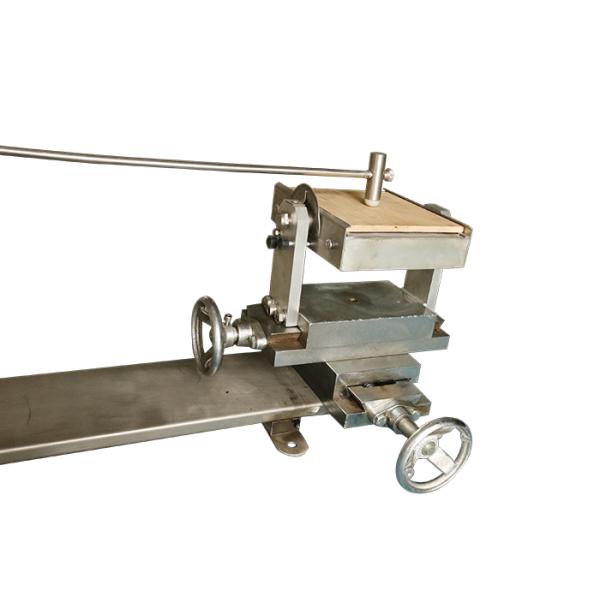

2. Mounting bracket: weight: 10±1 kg; it is well-set and the Horizontal direction and the vertical direction can be adjusted. The whole bracket can be rotated 90°through the rotation axis.

3. Striking element: 150g, equivalent mass 200g. (200g striking element for option).

4. Impact energy, equivalent mass and drop height table

Energy/J 0.14 0.2 (0.3) 0.35 (0.4) 0.5 0.7 1 2 5 10 20 50
Equivalent mass /kg 0.25 (0.2) 0.25 (0.2) 0.25 (0.2) (0.2) 0.25 0.25 0 .25 0.5 1.7 5 5 10
Drop height ±1%mm 56 (100) 80 (150) 140 (200) (250) 200 280 400 400 300 200 400 500

Notes:

  1. See note in IEC 60068-2-75 3.2.2
  2. In this part, the energy (J) is calculated taking the standard acceleration due to the earth’s gravity(g), rounded up to the nearest whole number, that is 10m/s².
  1. Operation: manual release the striking element

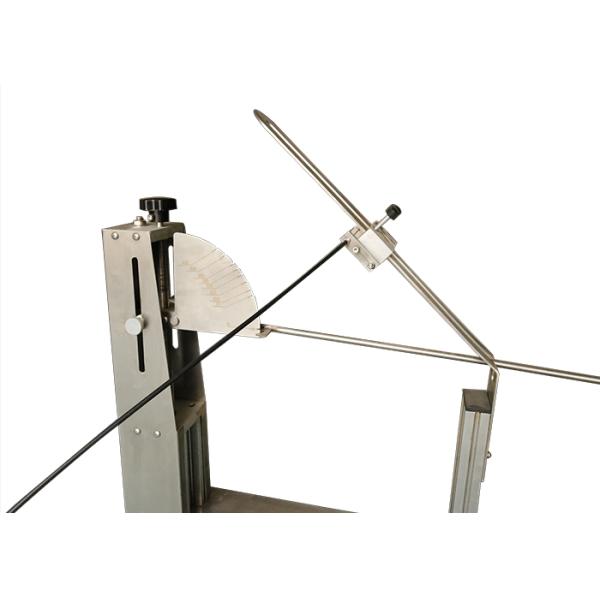

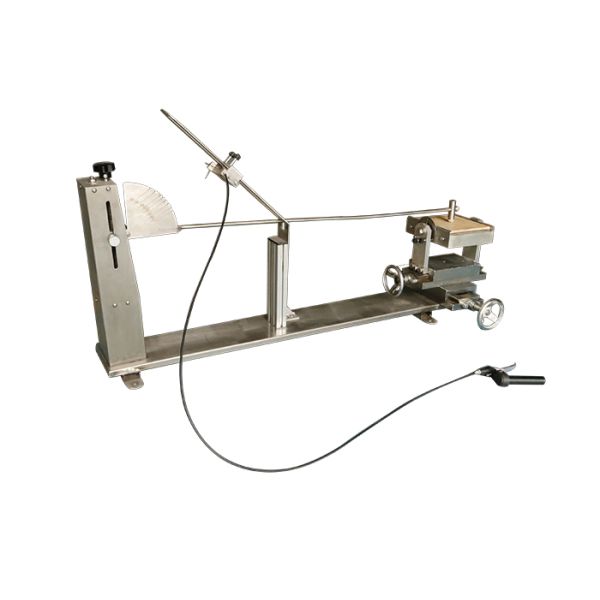

Picture view:

IEC 60884-1 Pendulum Hammer Impact Testing Machine For 2J And Below

IEC 60884-1 Pendulum Hammer Impact Testing Machine For 2J And Below

IEC 60884-1 Pendulum Hammer Impact Testing Machine For 2J And BelowIEC 60884-1 Pendulum Hammer Impact Testing Machine For 2J And Below
