Storage Water Heater Appliance Performance Test Lab With 6 Stations
Storage Water Heater Appliance Performance Test Lab With 6 Stations
Storage Water Heater Appliance Performance Test Lab With 6 Stations
Storage Water Heater Appliance Performance Test Lab With 6 Stations
Specifications
Brand Name :
HongCe
Model Number :
HCWHEF01
Certification :
calibration certificate (cost additional)
Place of Origin :
China
MOQ :
1 set
Price :
Negotiatable
Payment Terms :
T/T
Supply Ability :
1 set /month
Delivery Time :
45 days
Packaging Details :
plywood
Product name :
Storage Water Heater Appliance Performance Test Lab
Standard :
IEC 60379, GB 21519
relative air-humidity :
not exceeding 85%
ambient temperature :
θamb of 20 ± 2 °C
Water temperature fluctuation :
θC of 15 ± 2 °C
Test room size :
6000*4000*2600mm
Test station :
6 stations
Water temperature range :
10-65 °C
Description

Storage Water Heater Appliance Performance Test Lab With 6 Stations

Standard:

IEC 60379 Methods for measuring the performance of electric storage water-heaters for household purposes.

GB 21519 Minimum allowable values of energy efficiency and energy efficiency grades for electrical storage water heaters.

Equipment system composition:

Test room: The test room has strict temperature and humidity requirements and is realized by computer room air conditioner.

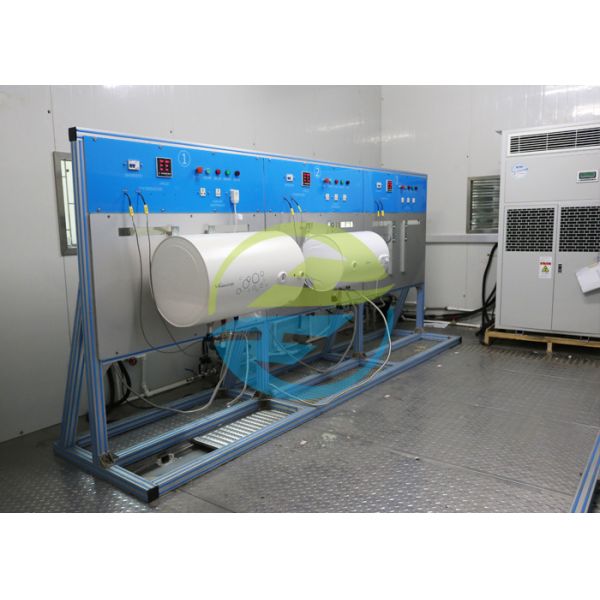

Sample mounting bracket: 2pcs, installed in the test room, arranged on both sides, each test bracket has 3 test stations.

Water supply room: include 2 water storage tanks, and constant temperature and constant pressure water supply line pipe.

Control cabinet: It is the data collection, data processing and control center of the system. Appliance Performance Test Lab

Mounting of the water-heater:

Wall-mounted water-heaters are mounted on a panel situated at least 150 mm from any structural wall.

They are positioned so that there is a clear space of at least 250 mm above and below the heater and at least 700 mm at the sides and front.

Floor-mounted water-heaters are placed on the floor or on any stand supplied with them. A false floor may be used to facilitate measurements.

Water-heaters for building-in are built in according to the manufacturer's instructions.

Parameter:

Test room size 6000*4000*2600mm
Test room temperature 20 ± 2 °C
Test room humidity <85%
Sample mounting bracket 2PCS
Test station 6 stations
Water tank 2PCS
Water temperature range 10-65 °C
Water supply line pipe 2 channels
Water pressure range 0.1-0.5Mpa. Appliance Performance Test Lab
