IEC60529 IPX3 / IPX4 Ingress Protection Test Equipment 0.4mm Needle Hole Oscillating Tube Open Type Tester
IEC60529 IPX3 / IPX4 Ingress Protection Test Equipment 0.4mm Needle Hole Oscillating Tube Open Type Tester
IEC60529 IPX3 / IPX4 Ingress Protection Test Equipment 0.4mm Needle Hole Oscillating Tube Open Type Tester
IEC60529 IPX3 / IPX4 Ingress Protection Test Equipment 0.4mm Needle Hole Oscillating Tube Open Type Tester
IEC60529 IPX3 / IPX4 Ingress Protection Test Equipment 0.4mm Needle Hole Oscillating Tube Open Type Tester
IEC60529 IPX3 / IPX4 Ingress Protection Test Equipment 0.4mm Needle Hole Oscillating Tube Open Type Tester
IEC60529 IPX3 / IPX4 Ingress Protection Test Equipment 0.4mm Needle Hole Oscillating Tube Open Type Tester
IEC60529 IPX3 / IPX4 Ingress Protection Test Equipment 0.4mm Needle Hole Oscillating Tube Open Type Tester
Specifications
Brand Name :
HongCe
Model Number :
HH0802
Certification :
calibration certificate (cost additional)A
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
10 set /month
Delivery Time :
30 days
Packaging Details :
Plywood
Price :
Negotiatable
standard :
IEC60529
Control :
PLC intelligent control
Needle hole :
Φ0.4mm
Water flow :
1-10L/min adjustable
Testing time :
0.01S～99hours 59min，can be preset
turntable diameter :
600/800/1000mm
Description

IEC60529 IPX3 / IPX4 PLC Control 0.4mm Needle Hole Oscillating Tube Open Type Tester

Product information:

Oscillating tube tester is designed and manufactured in accordance with the standard requirement of IEC60529 IPX3 and IPX4,IEC60335-1 clause 15.1. It is used for the waterproof test of the electrical equipment.

The oscillating tube part of this device is controlled by adjustable-speed motor and crank-link mechanism. This device is reciprocating swing from the place of ±60°to another one of ±175°with the speed required by the standard through machine adjusting angle.

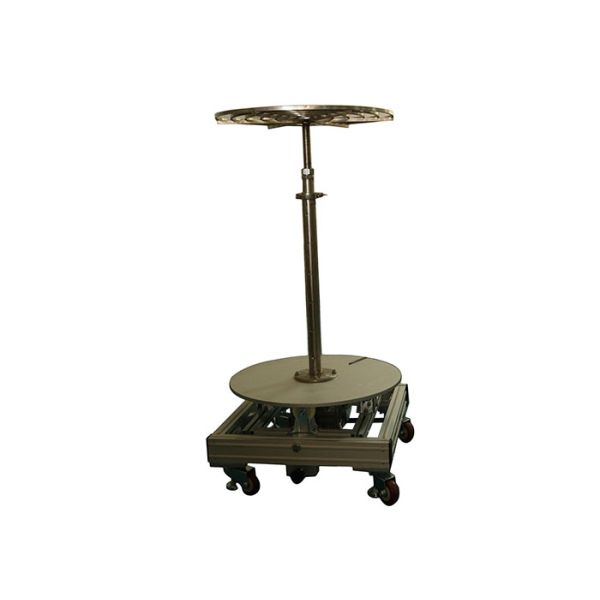

The angle adjustment is accurate. The structure is stable and durable. It is equipped with rotating stage through which the rotating of 90°can be achieved. It is also equipped with clean water filtration unit to prevent the pinhole from jamming.

Technical parameters:

No. Item parameters
1 Water supply

Water flow rate＞10L/min±5% clean water without inclusion.

This device is equipped with clean water filtration unit
2 The size of the oscillating tube

Come with R200, R400, R600, R800, R1000, R1200, oscillating tube

(R1400,R1600mm can be optional), stainless steel
3 Water hole Φ0.4mm
4 Included angle of two holes IPX3:120°; IPX4:180°
5 pendulum angle IPX3:120°; IPX4:360°
6 Raining speed

IPX3:4s/time(2×120°);

IPX4:12s/time(2×360°);
7 Water flow Can be set according to the size of the pendulum and the number of the pin holes (0.07 L/minX per hole)
8 Testing time 0.01S～99 hours 59mins,can be preset
9 Pressure gauge 0~0.25MPa
10 Site requirements

Dedicated IP waterproof test room, The ground should be flat with illumination

10A waterproof leakage switch(or socket)used for equipment. With good function of inflow and drainage. Ground installation
11 The area According to the oscillating tube chose

Main configuration:

No. Name Specifications Quantity Remarks
1 Oscillating tube R1000,R1400 1 Configuration
2 Oscillating tube drive Stainless steel cover,Worm gear reducer drive 2 There are one high and low pressure drive shaft and tailstock, high-axis for large swing tube, low shaft is for the small swing tube.
3 Support the tailstock Industrial Molding Aluminum 1
4 Servo motor 750W,Matsushita Electric Works 1
5 Rotating water head 1/2″ 1
6 Water spray needle seat M5 cone seat,Stainless steel 240 Includes spare needle holder
7 Stainless steel needle mouth φ0.4mm 240 Includes spare needle tip
8 Blocking head Sealed ball 50 Spare parts
9 Angle indicator 0-360° 1
10 Ball valves 1/2″,Exclude stagnant water 1
