IEC 60884-1 - Tumbling Barrel Testing Machine - 5rpm / 10time Per Min

IEC 60884-1 2013 clause 24.2:

The specimens are individually subjected to the test Ec:Rough handling shocks, primarily for equipment-type specimens, procedure 2 of IEC 60068-2-31, the number of falls being
– 1 000 if the mass of the specimen without flexible cable does not exceed 100 g, Plug Socket Tester
– 500 if the mass of the specimen without flexible cable exceeds 100 g, but does not exceed 200 g, and
– 100 if the mass of the specimen without flexible cable exceeds 200 g.

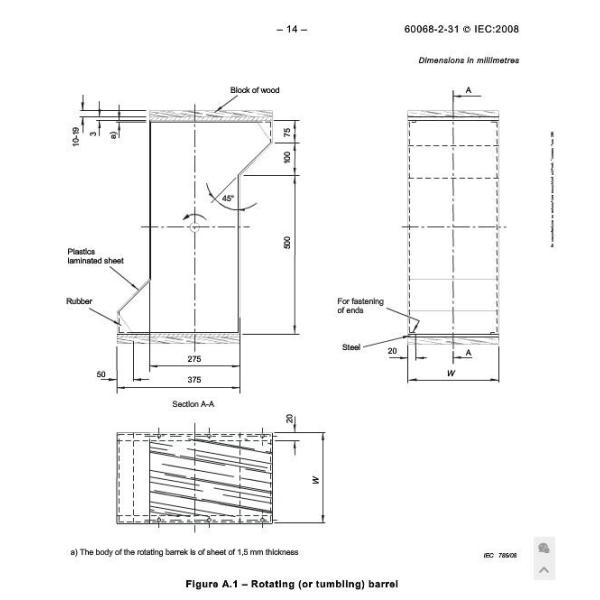

The barrel is turned at a rate of five revolutions per minute, 10 falls per minute thus taking place.
After the test, the specimens shall show no damage within the meaning of this standard. In particular,
– no part shall have become detached or loosened; Plug Socket Tester
– the pins shall not have become so deformed that the plug cannot be introduced into a socket-outlet complying with the relevant standard sheet and also fails to comply with the requirements of 9.1 and 10.3;
– the pins shall not turn when a torque of 0,4 Nm is applied, first in one direction for 1 min and then in the opposite direction for 1 min.
The shutters of socket-outlets shall be tested again according to Clause 21, from paragraph 19 up to paragraph 24 (only the test of shutters).
NOTE 1 During the examination after the test, special attention is paid to the connection of the flexible cable.
NOTE 2 Small pieces may be broken off without causing rejection provided that the protection against electric shock is not affected.
NOTE 3 Damage to the finish and small dents which do not reduce the creepage distances or clearances below the values specified in 27.1 are ignored. Plug Socket Tester

Standard: IEC 60884-1 2013 clause 24.2, IEC 60598-1, IEC 60998.1, VDE0620, IEC 60068-2-31, BS1363.1, EN50075, UL60730, IEC 60312-1 and so on

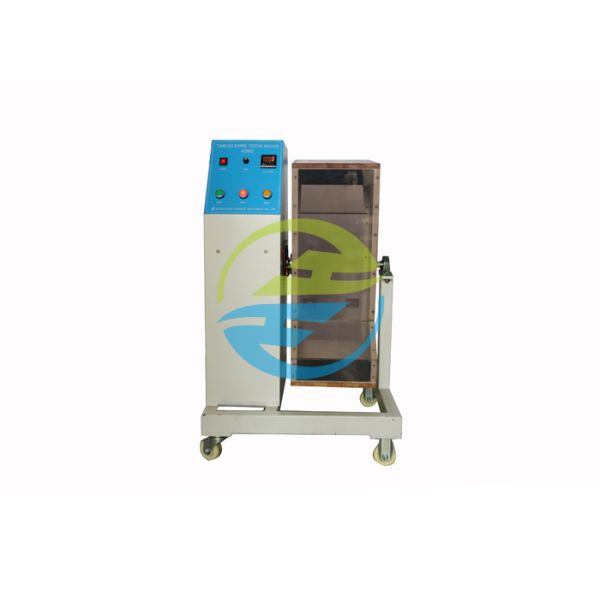

Application: This device is suitable for test the drop resistance of plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories. Plug Socket Tester

Test sample: plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories.

Feature: This tester can preset test times, automatic stop when set test times completed.

Parameters:
