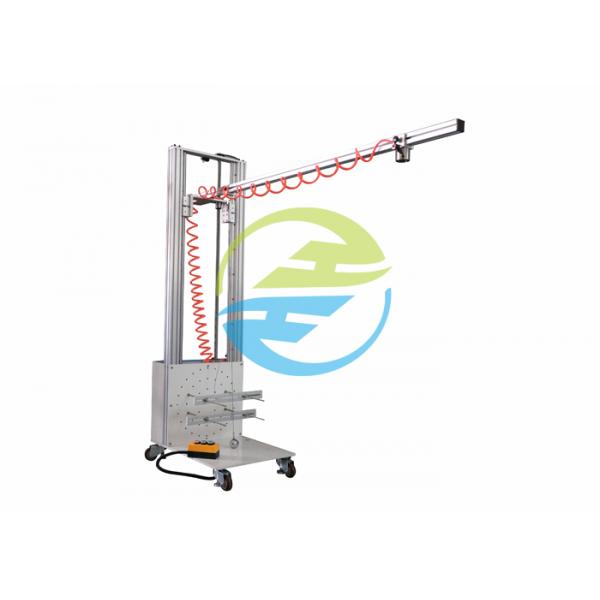

IEC60065 Figure 8 Steel Ball Impact Test Apparatus Drop Height 0.5-1.5m Adjustable
IEC60065 Figure 8 Steel Ball Impact Test Apparatus Drop Height 0.5-1.5m Adjustable
IEC60065 Figure 8 Steel Ball Impact Test Apparatus Drop Height 0.5-1.5m Adjustable
IEC60065 Figure 8 Steel Ball Impact Test Apparatus Drop Height 0.5-1.5m Adjustable
IEC60065 Figure 8 Steel Ball Impact Test Apparatus Drop Height 0.5-1.5m Adjustable
IEC60065 Figure 8 Steel Ball Impact Test Apparatus Drop Height 0.5-1.5m Adjustable
Specifications
Brand Name :
HongCe
Model Number :
SH-12
Certification :
Calibration certificate(cost additional)
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
30 days
Packaging Details :
plywood
Steel ball diameter :
50mm
Steel ball weight :
500±25g
Drop height :
0.5-1.5m adjustable
Clamping release :
Electronic control
Warranty :
1 Year
Standard :
IEC 60065:2014, IEC 60950-1 etc
Usage :
drop impact test
Test sample :
Luminaries, Audio
Description

IEC60065 Figure 8 Steel Ball Impact Test Apparatus, Drop Height 0.5-1.5m Adjustable

Moreover, the non-ventilated solid areas of the enclosure that protect HAZARDOUS LIVE parts shall be subjected to a single impact, specified in Table 6.
The impact specified in Table 6 shall be caused by allowing a solid, smooth, steel ball of (50 ± 1) mm in diameter and with the mass of approximately 500 g to fall freely from rest through a vertical distance, as illustrated in Figure 8, and strike the enclosure with the specified impact in a direction perpendicular to the enclosure surface. Audio Video Test Equipment

IEC60065 Figure 8 Steel Ball Impact Test Apparatus Drop Height 0.5-1.5m Adjustable

Standard: IEC 60950-1 Clause 4.2.5, IEC 60598-1 Clause 4.13.4a), IEC 60065 Audio Video Test Equipment

Application: This device is suitable for drop impact test for equipment enclosure.

Test sample: Luminaries, Audio, video and similar electronic apparatus, Information technology equipment

Feature: Equipment can carry out test in two forms of vertical drop and swing impact

Parameters: Audio Video Test Equipment

  • Impact steel ball: diameter 50mm, 500±25g
  • Drop height: 0.5-1.5m adjustable

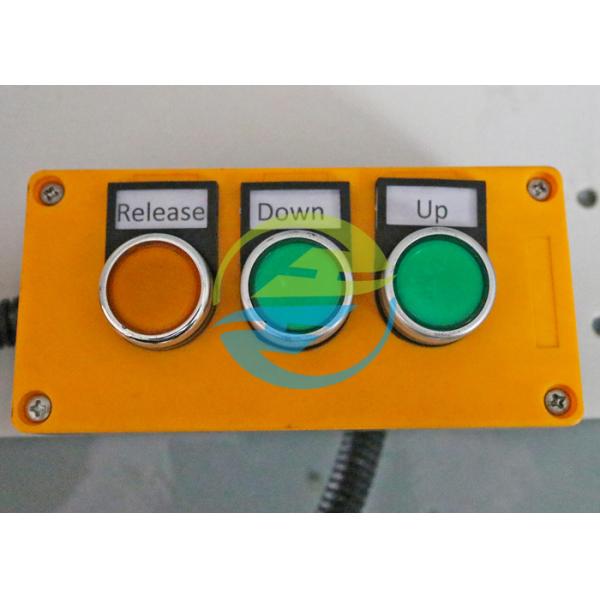

  • Lift mode: Electric
  • Clamping release mode: electronic control Audio Video Test Equipment
  • Impact steel ball diameter 50mm, 500±25g
    Drop height 0.5-1.5m adjustable
    Lift mode Electric
    Clamping release mode electronic control

Picture for reference:

IEC60065 Figure 8 Steel Ball Impact Test Apparatus Drop Height 0.5-1.5m Adjustable

IEC60065 Figure 8 Steel Ball Impact Test Apparatus Drop Height 0.5-1.5m Adjustable
