Specifications
Brand Name :
HongCe
Model Number :
IPX56A
Certification :
Third party calibration certificate (cost additional)
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
35 days
Packaging Details :
plywood
Power :
3KW
Warranty :
1 Year
Usage :
Water Ingress Protection Test
Standard :
IEC60529
Turntable rotation speed :
1-5 r/min adjustable
IPX5 Nozzle :
φ6.3mm
IPX6 Nozzle :
φ12.5mm
Description

IEC60529 IPX5-6 Spray Test Equipment With Φ6.3mm And 12.5mm Nozzle 500L Tank

Product information: Ingress Protection Test Equipment

The spray test system is designed and manufactured according to the standard IEC60529<<Degrees of protection provided by enclosures (IP Code)>>, used to test waterproof performance of the electrical products which second characteristic is numeral 5/6.

This machine is suitable for enclosure protection rating evaluation of electrical appliances and electronic equipment, against the harmful effects due to water entering the housing of the device. Ingress Protection Test Equipment

Technical parameters:

Model IPX56A

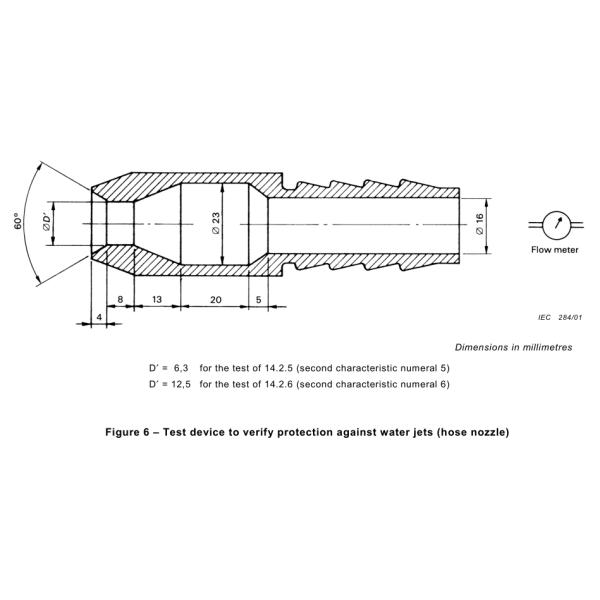

IPX5 Spray aperture (mm) Ø6.3mm
IPX6 Spray aperture (mm) Ø12.5mm
IPX5 Spray Flow 12.5L/min±5%
IPX6 Spray Flow 100L/min±5%
The distance of IPX56 nozzle mouth to test products 2.5m-3m
Water Pump A multi-stage stainless steel pumps
Pressure gauge 0～0.25Mpa
Timer 1－99Min
Sample turntable Ø600mm,
Sample turntable rotation speed 1~5r/min (adjustable),can rotate clockwise or counterclockwise
Tiltable angle 15° Ingress Protection Test Equipment
Max load 50KG
Sample turntable material SUS304# stainless steel
Reservoir (L) 500L
Reservoir material SUS304# stainless steel
IPX5/6 Input supply 380VAC 50HZ (Voltage fluctuations≦±10%)
Power 3KW
Sample power supply 220V

Specifications for sample turntable:

  1. Turntable Material: SUS304 stainless steel, diameter ф600mm. Turntable height is adjustable, adjustable range: 1200-1800mm, 300mm.
  2. Maximum load: 50KG.
  3. Turntable rotation speed: 1-5 r / min adjustable. Ingress Protection Test Equipment
  4. Turntable electrical part is fully sealed to prevent water leakage. Can equip with a waterproof universal socket.
  5. Turntable adopts to domestic high-speed motors, adjustable speed within the standard range. Containing a reducer (reduction ratio 1: 300)
  6. Turntable can rotate clockwise or counterclockwise
  7. There are four activities with brake casters beneath the turntable, easy for moving and stationary Ingress Protection Test Equipment
