Pendulum rod 0~90° High Energy Pendulum Impact Testing Machine for Impact Testing Machine

Product Introduction with Impact Testing Machine:

The test apparatus is designed and manufactured according to the requirements of IEC61439-1:2009,IEC62262:2002 clause 6 and IEC60068-2-75, it applies to test the mechanical collision strength degree when the electrical equipment shells collide external objects.

The frame of this device is welded by stainless steel, the structure is compact and durable. The mounting brackets can be adjusted up and down, and the impact angle is 0-90 ° adjustable, the whole test apparatus is easy to be operated.

Product Parameters with Impact Testing Machine:

1. Pendulum rod angle: 0-90 ° adjustable, scale display

2. Pendulum rod length: 1000mm,φ9 is used for 2J , φ15.9 is used for 5J,10J, 20J and 50J

3. Equipped with 2J,5J,10J,20J,50J striking elements

4. Impact height: 200mm~1200mm adjustable

Impact energy, equivalent mass and drop height chart:

Mechanical Principles with Impact Testing Machine:

This apparatus is designed and manufactured according to IEC 60068-2-75, the front end of the pendulum rod is connected to striking elements, adjust the pendulum rod to a certain height and release it, then the pendulum rod swing freely to impact the test sample surface within a define area. Different equivalent mass striking elements are corresponding to different impact energies, and applies to different electrical equipment enclosure strength test.

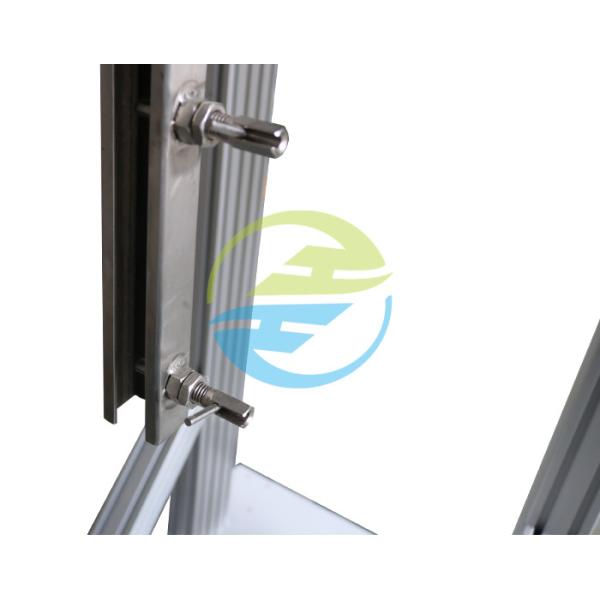

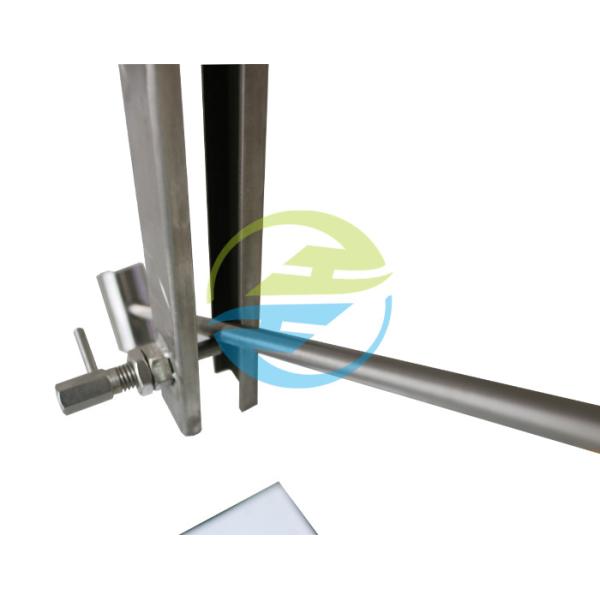

Product Image with Impact Testing Machine:

Our advantage service:

We possess a professional R&D and design team that leverages their proficient skills and innovative thinking to provide customers with uniquely crafted product solutions. If you have any novel ideas or unique needs for a product, please feel free to share them with us, and we will carefully craft a one-of-a-kind product design based on your creativity and expectations, meeting all your aspirations.

Technical support:

All our workers are experienced and skilled.

After sale service:

Our professional working team and outstanding sales team are committed to providing our clients with products worldwide and guaranteeing fast and efficient after-sales services to meet various needs.

About Us:

Guangzhou Hongce Equipment Co., Ltd is a leading company in inspection equipment industry, established in 2003 and located in Guangdong, China. Our company introduced advanced equipment, combined with the most advanced technology production processes, strict quality control system to control the entire process of production. The company combined with a number of high-tech management personnel and advanced equipment, and together with the modern management, computer design and control, our products has reached the international advanced level. The company set R&D design, production, sales as one, specializing in producing electric wire inspection equipment of plug and socket, mechanical robustness testing equipment of electronics, inspection equipment of electronics’ on-fire danger, testing indicator of anti-electric shock and solid objects' entry, general inspection equipment, and other non-standard testing equipment. Our products enhance good selling at home and abroad, and have established supply relationships with a number of well-known companies.
