Specifications
Brand Name :
Mitsubishi Electric
Model Number :
PSS30S71F6
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
9PCS
Price :
NEGOTIABLE
Payment Terms :
T/T
Supply Ability :
1152PCS/WE4EK
Delivery Time :
2-3DAYS
Packaging Details :
288PCS/BOX
Configuration :
6-Pack
Pd - Power Dissipation :
90.9W
Minimum Operating Temperature :
- 20 C
Maximum Operating Temperature :
+ 100 C
AC :
100~240Vrms
DC :
400V or below
Description

PSS30S71F6 With Temperature Output Function Diode Power Modules

1.MAIN FUNCTION AND RATINGS

3 phase DC/AC inverter
600V / 30A (CSTBT)
N-side IGBT open emitter
Built-in bootstrap diodes with current limiting resistor

2.APPLICATION

AC 100~240Vrms(DC voltage:400V or below) classlow power motor control

3.INTEGRATED DRIVE, PROTECTION AND SYSTEM CONTROL FUNCTIONS

For P-side: Drive circuit, High voltage high-speed level shifting, Control supply under-voltage (UV) protection
● For N-side:Drive circuit, Control supply under-voltage protection (UV), Short circuit protection (SC),
● Fault signaling : Corresponding to SC fault (N-side IGBT), UV fault (N-side supply)
● Temperature output : Outputting LVIC temperature by analog signal
● Input interface : 3, 5V line, Schmitt trigger receiver circuit (High Active)

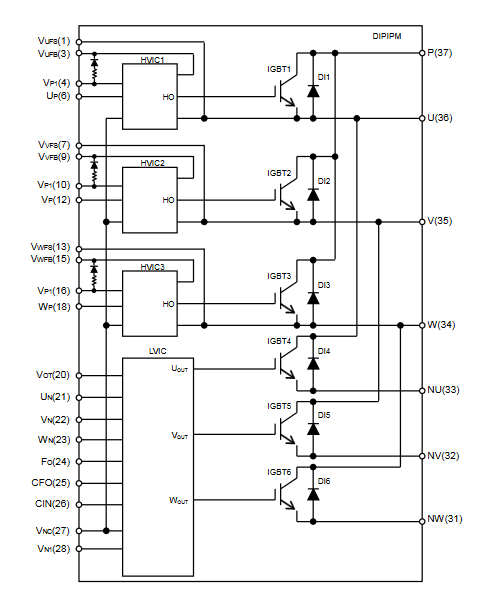

4.INTERNAL CIRCUIT

PSS30S71F6 240Vrms 90.9W Diode Power Modules DC/AC inverter

5.Control terminals

PSS30S71F6 240Vrms 90.9W Diode Power Modules DC/AC inverter

6.4 VOT output circuit

PSS30S71F6 240Vrms 90.9W Diode Power Modules DC/AC inverter

7.
