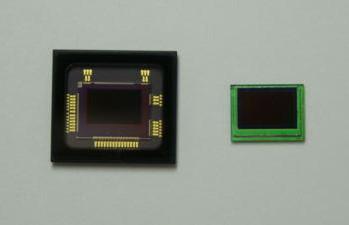

IMX323LQN Diagonal 6.23 mm CMOS Image Sensor with Square Pixel for Color Cameras Preliminary

The IMX323LQN-C is a diagonal 6.23 mm (Type 1/2.9) CMOS active pixel type image sensor with a square pixel array and approximately 2.12M active pixels. This chip operates with analog 2.7 V, digital 1.2 V, and interface 1.8 V triple power supplies. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color pigment mosaic filters. This chip features an electronic shutter with variable integration time. (Applications: Consumer use drive recorder, Consumer use network camera)

Features
◆ CMOS active pixel type dots
◆ Input clock frequency: 37.125 MHz
◆ Readout mode
HD1080 p mode
HD720 p mode
◆ Variable-speed shutter function (Minimum unit: One horizontal sync signal period (1XHS))
◆ H driver, V driver and serial communication circuit on chip
◆ DCK sync mode supported
◆ CDS/PGA on chip
0 dB to 21 dB: Analog Gain 21 dB (step pitch 0.3 dB)
21.3 dB to 45 dB: Analog Gain 21 dB + Digital Gain 0.3 to 24 dB (step pitch 0.3 dB)

◆ 10-bit / 12-bit A/D converter on-chip
◆ CMOS logic parallel SDR Data-Clock output
◆ R, G, B primary color pigment mosaic filters on chip
◆ Recommended lens F value: 2.8 or more (close side)
◆ Recommended exit pupil distance: –30 mm to –∞

Device Structure
◆ CMOS image sensor
◆ Image size
Diagonal 6.23 mm (Type 1/2.9)
◆ Total number of pixels
2001 (H) × 1121 (V) approx. 2.24 M pixels
◆ Number of effective pixels
1985 (H) × 1105 (V) approx. 2.19 M pixels
◆ Number of active pixels
1936 (H) × 1097 (V) approx. 2.12 M pixels
◆ Number of recommended recording pixels
1920 (H) × 1080 (V) approx. 2.07 M pixels
◆ Unit cell size
2.8 μm (H) × 2.8 μm (V)
◆ Optical black
Horizontal (H) direction: Front 16 pixels, rear 0 pixels
Vertical (V) direction: Front 16 pixels, rear 0 pixels

◆ Dummy
Horizontal (H) direction: Front 0 pixels, rear 0 pixels
Vertical (V) direction: Front 7 pixels, rear 0 pixels
◆ Substrate material
Silicon
