9WF0624H702 DC Fans DC Fan, 60x60x15mm, 24VDC, Oil Proof, O Sensor
9WF0624H702 DC Fans DC Fan, 60x60x15mm, 24VDC, Oil Proof, O Sensor
9WF0624H702 DC Fans DC Fan, 60x60x15mm, 24VDC, Oil Proof, O Sensor
9WF0624H702 DC Fans DC Fan, 60x60x15mm, 24VDC, Oil Proof, O Sensor
9WF0624H702 DC Fans DC Fan, 60x60x15mm, 24VDC, Oil Proof, O Sensor
9WF0624H702 DC Fans DC Fan, 60x60x15mm, 24VDC, Oil Proof, O Sensor
9WF0624H702 DC Fans DC Fan, 60x60x15mm, 24VDC, Oil Proof, O Sensor
9WF0624H702 DC Fans DC Fan, 60x60x15mm, 24VDC, Oil Proof, O Sensor
Specifications
Brand Name :
Sanyo Denki
Model Number :
9WF0624H702
Certification :
CSA; TUV; UL
Place of Origin :
PHILIPPINES
MOQ :
1PCS
Price :
Negotiable
Supply Ability :
200PCS

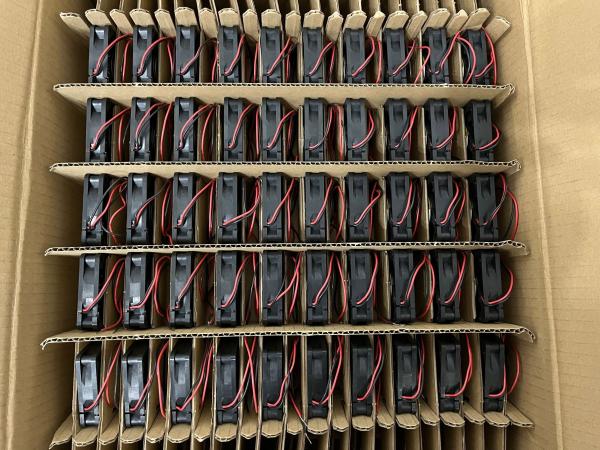

Packaging Details :
100PCS/BOX
Manufacturer :
Sanyo Denki
Product Category :
DC Fans
Airflow :
18.2 CFM (0.52 m3/min)
Speed :
6800 RPM
Termination Style :
Wire Leads - 2
Series :
9WF Type
Compliance :
CSA; TUV; UL
Description

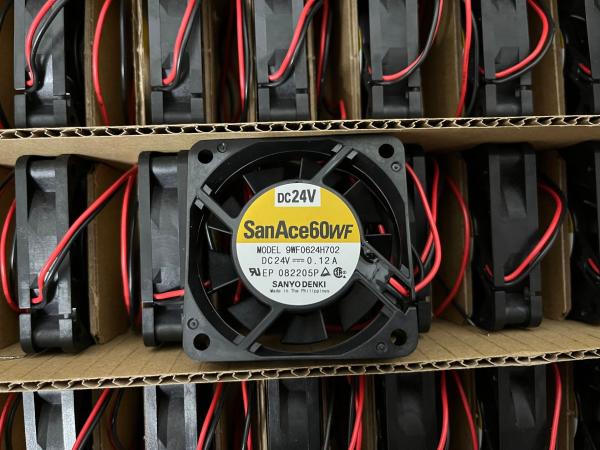

9WF0624H702 DC Fans DC Fan, 60x60x15mm, 24VDC, Oil Proof, O Sensor

Oil Proof Fan

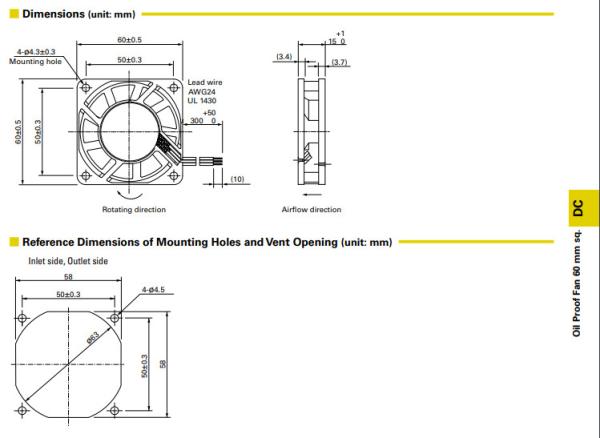

60×60×15 mm

San Ace 60WF 9WF type

General Specifications

・ Material ………………………………………… Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)

・ Expected life …………………………………… See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage)

・ Motor protection function ………………… Locked rotor burnout protection, Reverse polarity protection For details, please refer to p. 547.

・ Dielectric strength …………………………… 50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)

・ Insulation resistance ………………………… 10 MΩ or more with a 500 VDC megger (between lead wire conductors and frame)

・ Sound pressure level (SPL) ……………… At 1 m away from the air inlet

・ Storage temperature ……………………… -30 to +70˚C (Non-condensing)

・ Lead wire ……………………………………… Red Black Sensor Yellow

・ Mass ……………………………………………… 62 g

This fan can be used in environments with oil mist.*

* Environment where cutting oil creates oil mist. Conduct a product evaluation with the type of oil to be used.

Specifications

The models listed below have ribs and pulse sensors.

9WF0624H702 DC Fans DC Fan, 60x60x15mm, 24VDC, Oil Proof, O Sensor
