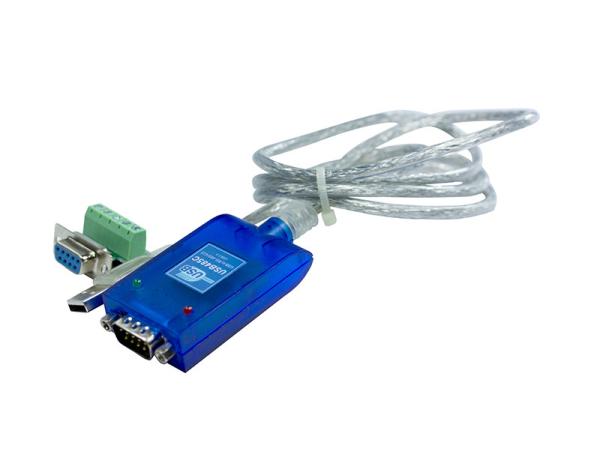

1 Port USB To Serial Converter Easy Installation 1800m Transmission Distance
1 Port USB To Serial Converter Easy Installation 1800m Transmission Distance
Specifications
Brand Name :
3onedata
Model Number :
USB485
Certification :
CE, FCC, RoHS
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 sets per month
Packaging Details :
Carton
USB Ports :
1
Serial Ports :
1
Input Power :
port-powered
Cable Length :
1.5m
Operating Temperature :
-20~60℃
Warranty :
3 years
Delivery Time :
7 Working Days
Description

1-port USB to RS-485 Converter

Introduction

USB485 series are passive pocket USB to RS-485/422 interface converter, which can achieve bilateral switching of data between USB interface and RS-485/422 serial port without external power supply. This series include 2 optional products and provide 1 USB interface, 1 RS-485 or 1 RS-485/422 serial port. Interface is equipped with 600W surge protection and 15kV electrostatic protection, which can effectively protect the device from damage.

The product provides matched driver program software; USB interface connected to PC will make up a serial COM port in the computer system. PC host can communicate with RS-485/422 device via virtual COM port.

USB485 series have compact size and are easy for installation. Specific LED indicator is convenient for judging signal conversion. It can be widely used in industrial control automation system, bar-code scanner, PLC and PLD, PDA (WinCE system), label printer, POS system, data acquisition control system, security access control system, etc.

Specification

Serial Port

Standard: EIA RS-485, RS-422

Quantity of serial port: 1 RS-485 serial port or RS-485/422 serial port

RS-485 signal: D+, D-, GND

RS-422 signal: T+, T-, GND, R+, R-

Baud rate: 300bps~115200bps

Interface form: adopt DB9 Male or 5-pin 5.08mm pitch terminal blocks

Transmission distance: 1800m

Direction control: RS-485 direction adopts ADDC (Automatic Data Direction Control)

Load capacity: RS-485 supports 32-point polling environment (customizable 128-point)

Interface protection: 600W surge protection, 15kV electrostatic protection

USB Port

Standard: USB 1.1, USB 2.0, USB CDC V1.1

Quantity of interfaces: 1 USB interface

USB signal: VCC, DATA+, DATA-, GND

Transmission rate: high speed 480Mbps, full speed 12Mbps

Interface form: USB A-type plug, Female

Transmission distance: 5m

Operating System

Windows 98/ME/2000/XP/7, Linux v5.0

Power Requirement

USB interface power supply, without external power supply

Power Consumption

Static power consumption: ≤80mA

Dynamic power consumption (mean value): ≤150mA

Environmental Limit

Operating temperature: -20~60℃

Storage temperature: -25~85℃

Relative humidity: 5%～95% (no condensation)

Physical

Characteristic

Housing: plastic

Dimension (W x H x D): 33mm×18mm×72mm (cable length 1.5m)

Weight: 70g

Certification

CE, FCC, RoHS

Warranty

3 years

Ordering Information

Available Models USB RS-485 RS-485/422 Power Supply
USB485B 1 1 -

-
USB485C 1 - 1
