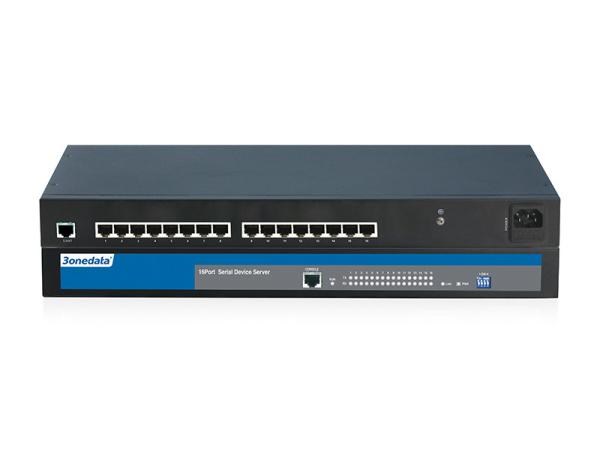

Rack mounting 16-port RS-232/485/422 to Ethernet serial device server

Introduction

NP3016T series are the serial device server that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. This series include 4 types of products; provide 16 RS-232/485/422/3IN1 serial port to 1 100M Ethernet copper port and support single or dual Ethernet port. It adopts rack mounting to meet the requirements of different application scenes.

Serial device server supports multiple network protocols, such as TCP, UDP, SNMP, TELNET, ARP, ICMP, HTTP, DNS and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast operating modes and TELNET, WEB access modes. Furthermore, supplied management configuration tool based on Windows platform can guide the user to manage and configure the device, achieving immediate networking of serial device via simple settings. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.

DIP switch can achieve restore factory defaults of the device. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, Building Automation System, Health Care Automation System, measuring instrument and environmental forces monitoring system.

Features and Benefits

• Support 10/100Base-T(X) self-adaptive Ethernet interfaces
• Support 300bps-115200bps line speed and non-blocking communication
• Support RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast and other operating modes
• Support across gateway and routing communication
• Support multiple hosts polling mode, which allows multiple hosts to access the same serial port
• Support delimiter matching communication, achieving various demands for serial port packaging
• Support FIFO, compatible with various old type terminal devices
• Support IP address and MAC address filtering, which can easily achieve accurate access control
• Support classification of user management to realize humanized permission management
• Support serial port status and parameters monitoring, ensuring the communication status be clear at a glance
• Support RTS/CTS, DTR/DSR and XON/XOFF flow control
• Support SNMP network management
• Compatible with various virtual serial port management software
• Support virtual serial port drive access mode and automatic connection recovery after network interruption
• Flexible serial port data framing setting, which can satisfy user’s various demands for data packets segmentation
• Support standard TCP/IP SOCKET application access
• TCP supports multi-connection, which allows maximum 4 users to monitor or manage the serial device simultaneously
• UDP supports single machine or multi-machine communication, which allows multiple users to monitor or manage the serial device simultaneously
• Support Windows configuration tool, TELNET, WEB and other configuration forms

Specification

Dimension
Unit:mm

Ordering Information
