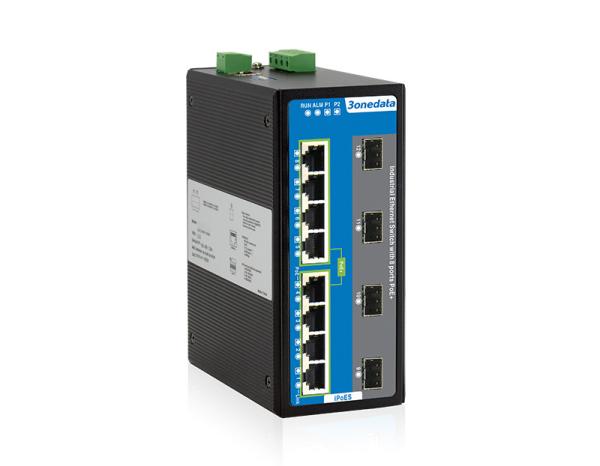

240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports
240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
3onedata
Certification :
CE, FCC, RoHS, UL
MOQ :
1
Price :
Negotiable
Packaging Details :
Carton
Delivery Time :
7 Working Days
Model Number :
IPS7112G-4GS-8GPOE
Payment Terms :
T/T, L/C,
Supply Ability :
1000 pcs/month
Product Name :
Industrial POE Switches
Model: :
IPS7112G-4GS-8GPOE
Input Voltage: :
DC12~48V
Power Consumption :
No-load: ≤7.30W@48VDC Full-load: ≤103.49W@48VDC
Feature :
VLAN, QOS, SNTP
OperatingTemperature: :
-40~75℃
Warranty :
5 years
Description

Features and Benefits

240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports SNMPv1/v2c/v3 is used for network management of various levels

240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports RMON can be used for efficient and flexible network monitoring

240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging

240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports QoS supports real-time traffic classification and priority setting

240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports LLDP can achieve automatic topology discovery, which is convenient for visual management

240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports DHCP server and DHCP client could be used for allocating IP address of different strategies

240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports File management is convenient for rapid configuration and online upgrade of the device

240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports Log management records boot information, operation information and connection information

240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports Bandwidth management and flow control can reasonably distribute network bandwidth, preventing unpredictable network status

240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports Port statistics can be used for the port real time traffic statistics

240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports Support Console/Telnet/WEB management

240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports User password can conduct user hierarchical management to improve the device administrative security

240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports Anti-attack control, ACL and 802.1X authentication could strength the flexibility and security of network

240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports Relay alarm is convenient for troubleshooting of construction site

240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports Storm suppression can restrain broadcast, unknown multicast and unknown unicast

240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports SSHD configuration could encrypt transmitted data, prevent DNS and IP spoofing

240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports TELNET configuration and HTTPS configuration could ensure the access security of data

240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports VLAN can simplify the network planning

240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports Port trunking and LACP can increase network bandwidth and the reliability of network connection to achieve optimal bandwidth utilization

240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports IGMP-snooping and static multicast can be used for filtering multicast traffic to save the network bandwidth

240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports Port isolation could achieve port isolation in the same VLAN and save Vlan resources

240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports SW-Ring and STP/RSTP can achieve network redundancy, preventing network storm

240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports Ping, Traceroute, Port Loopback could achieve network diagnosis and troubleshooting

240W 12-port Full Gigabit Managed Industrial PoE Switch 4GE SFP and 8GE copper ports PoE could power device over Ethernet, thus decreasing the cable connection of powered devices

Specification

Standard

&

Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX

IEEE 802.3ab for 1000Base-T

IEEE 802.3z for 1000Base-X

IEEE 802.3x for Flow Control

IEEE 802.1D for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

IEEE 802.1Q for VLAN

IEEE 802.1p for CoS

IEEE 802.1X for 802.1X Authentication

IEEE 802.1AB for LLDP

IEEE 802.3ad for LACP

IEEE 802.3af/at for PoE+
Management

SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, Port Mirroring, QoS, LLDP, DHCP Server, DHCP Client, File Management, Log Management, Port Statistics
Security

Classification of User Permissions, anti-attack control, ACL, 802.1X Authentication, Port Alarm, Power Supply Alarm, Storm Suppression, SSHD Configuration, Telnet Configuration, HTTPS Configuration
Switch Function

802.1Q Vlan, Static/Dynamic Port Aggregation, Bandwidth Management, Flow Control, Port Isolation

Unicast / Multicast

 Static Multicast, GMRP, IGMP-Snooping

Redundancy

Protocol

SW-Ring, STP/RSTP/MSTP

Troubleshooting

 Ping, Traceroute, port loopback
Time Management

SNTP

PoE

The maximum power consumption of PoE port: 30W

The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6
Interface

Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning

SFP slot: 1000Base-SFP

Console port: CLI command line management port (RS-232), RJ45

Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output, the current load capability is 1A/24VDC; 0.5A/120VAC
LED Indicator

Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator, POE Indicator

Switch

Property

Transmission mode: store and forward

MAC address: 8K

Packet buffer size: 4Mbit

Backplane bandwidth: 24G

Switch time delay: <10μs

Power

Requirement

48VDC, 4-pin 7.62mm pitch terminal blocks

dual power supply redundancy, reverse polarity protection

Power

Consumption

No-load: ≤7.30W@48VDC

Full-load: ≤103.49W@48VDC

Environmental

Limit

Operating temperature range: -40~70℃

Storage temperature range: -40~85℃

Relative humidity: 5%～95% (no condensation)
Physical Characteristic

Housing: IP40 protection, metal

Installation: DIN-Rail mounting

Weight: 1.07kg

Dimension (W x H x D): 70mm×160mm×130mm

Industrial

Standard

EN61000-4-2 (ESD) , Level 3

Air discharge: 8KV

Contact discharge: 6KV

EN61000-4-4 (EFT) , Level 3

Power supply 2kv

Signal 1kv

EN61000-4-5 (Surge) , Level 3

Power supply differential mode 1kv common mode 2kv

Signal differential mode 1kv common mode 2kv

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6
Certification

CE, FCC, RoHS
Warranty

5 years

Ordering Information

Available Models Gigabit SFP Slot Gigabit PoE Copper Port Power Supply Range
IPS7112G-4GS-8GPOE 4 8

48VDC

dual power supply
