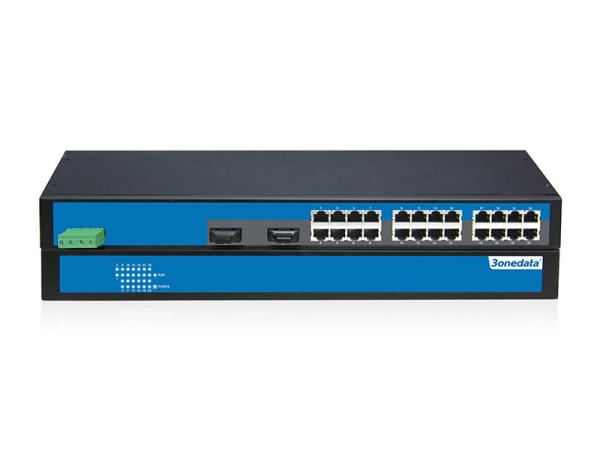

26 port fast Ethernet switch, 24 RJ45 + 2 fiber ports, unamanaged, rack mount
26 port fast Ethernet switch, 24 RJ45 + 2 fiber ports, unamanaged, rack mount
Specifications
Brand Name :
3onedata
Model Number :
ES1026-2F
Certification :
CE, FCC, RoHS
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 sets per month
Packaging Details :
Carton
Delivery Time :
7 Working Days
Material :
Aluminum Alloy
Ethernet Ports :
26
Switch Capacity :
5.2Gbps
Input Power :
100-240VAC/DC
Transmission Rate :
10/100Mbps
Operating Temperature :
0~70℃
Waterproof :
IP30
Warranty :
3 years
Description

Entry-level rack mount layer 2 unmanaged 26-port 10/100M Ethernet switch

Introduction

ES1026-2F is 26-port 100M fiber/copper port layer 2 unmanaged Ethernet switches. The device provides 24 100M copper ports and 2 100M fiber ports. It adopts rack mounting to meet the requirements of different application scenes.

The products conform to FCC, CE standard. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, aerospace, intelligent manufacturing, military project and other fields.


Specification

Standard & Protocol

IEEE 802.3 for 10Base-TX

IEEE 802.3u for 100Base-TX and 100Base-FX
Interface

Copper port: 10/100Base-TX, RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning

Fiber port: 100Base-FX SC/ST/FC Interface

LED Indicator

Running Indicator, Port Indicator, Power Supply Indicator

Switch Property

Transmission mode: store and forward

MAC address: 8K

Packet buffer size: 2.5M

Backplane bandwidth: 12.8G

Switch time delay: < 15μs

Power Requirement

100-240VAC/DC, 4-pin 7.62mm pitch terminal blocks

Power Consumption

No-load: 4.2W@220VAC

Full-load: 6.7W@220VAC

Environmental Limit

Operating temperature: 0~70℃

Storage temperature: -40~75℃

Relative humidity: 5%～95%(no condensation)

Physical

Characteristic

Housing: IP30 protection, metal

Installation: 19 inches rack mounting

Dimension (W x H x D): 441.6mm×44.6mm×207.9mm

Industrial Standard

IEC61000-4-2 (ESD),Level 4

Air discharge: ±8kV

Contact discharge: ±8kV

IEC61000-4-4 (EFT), Level 4

Power supply: ±4kV

Ethernet interface: ±2kV

IEC61000-4-5 (Surge), Level 4

Power supply: common mode ±4kV, differential mode ±2kV

Ethernet interface: ±4kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Certification

CE, FCC, RoHS

Warranty

3 years


Dimension
Unit:mm

26 port fast Ethernet switch, 24 RJ45 + 2 fiber ports, unamanaged, rack mount

Ordering Information

Available Models 100M Copper Port 100M Fiber Port Power Supply Range
ES1026-2F 24 2

100~240VAC/DC
