Specifications
Place of Origin :
Shenzhen, China
Brand Name :
3onedata
Certification :
CE, FCC, RoHS
MOQ :
1
Price :
Negotiable
Packaging Details :
Carton
Delivery Time :
7 Working Days
Model Number :
IES3016 Series
Payment Terms :
L/C, T/T
Power Input :
12~48VDC，dual power supply input
Port :
Support 8 100M copper ports, 8 100M fiber and copper ports optional
Dimensions :
70mm×160mm×130mm
Casing :
IP40 protection, Metal case
Operation Temperature :
-40~75℃
Warranty :
5 years
Description

16-port 100M Layer 2 Unmanaged Industrial Ethernet Switch

Introduction:

IES3016 series are 16-port 100M layer 2 unmanaged industrial Ethernet switches. This series include five types of products and provide 100M copper ports, 100M fiber ports. It adopts DIN-Rail mounting to meet the requirements of different application scenes.

Power supply input is two independent power supply circuits, which can ensure the device normal operation when one of the power supplies breaks down. DIP switch can achieve power supply alarm, flow control and storm suppression. When power supply occurs link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.

Specification:

Standard

&

Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX and 100Base-FX

IEEE 802.3x for Flow Control
Interface

Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning

Fiber port: 100Base-FX, SC/ST/FC optional

Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity 5A@30VDC or 10A@125VAC
LED Indicator

Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator

Switch

Property

Transmission mode: store and forward

MAC address: 8K

Packet buffer size: 3Mbit

Backplane bandwidth: 12.8G

Switch time delay: < 10μs

Power

Requirement

12~48VDC, 4-pin 7.62mm pitch terminal blocks

Dual power supply redundancy, reverse polarity protection, nonpolarity

Support 4A overcurrent protection

Environmental

Limit

Operating temperature range: -40~75℃

Storage temperature range: -40~85℃

Relative humidity: 5%～95%(no condensation)
Physical Characteristic

Housing: IP40 protection, metal

Installation: DIN-Rail mounting

Dimension (W x H x D): 70mm×160mm×130mm

Industrial

Standard

IEC 61000-4-2 (ESD), Level 4

Air discharge: ±15kV

Contact discharge: ±8kV

IEC 61000-4-4 (EFT), Level 4

Power supply: ±4kV

Ethernet interface: ±2kV

Relay: ±4kV

IEC 61000-4-5 (Surge), Level 3

Power supply: common mode ±2kV, differential mode ±1kV

Ethernet interface: ±2kV

Relay: common mode ±2kV, differential mode ±1kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6
Certification

CE, FCC, RoHS
Warranty

5 years

Order Information:

Available Models 100M Fiber Port 100M Copper Port Power Supply Range
IES3016 0 16

12~48VDC

dual power supply

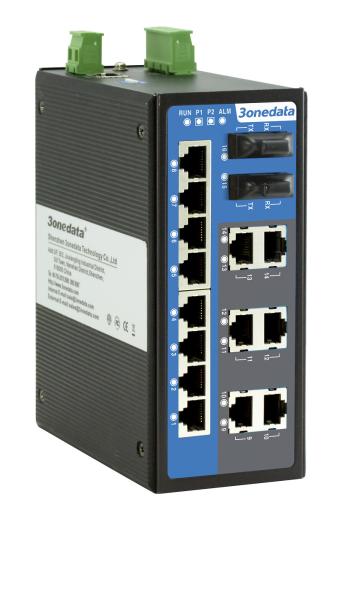

IES3016-2F 2 14
IES3016-4F 4 12
IES3016-6F 6 10

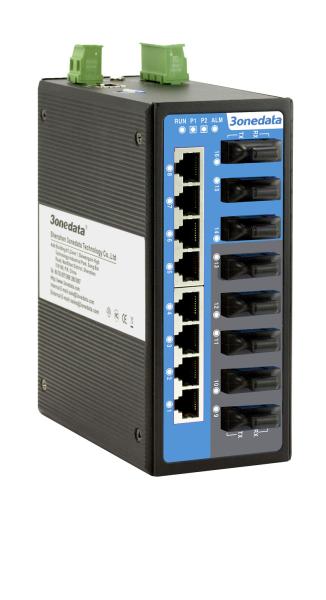

IES3016-8F 8 8
