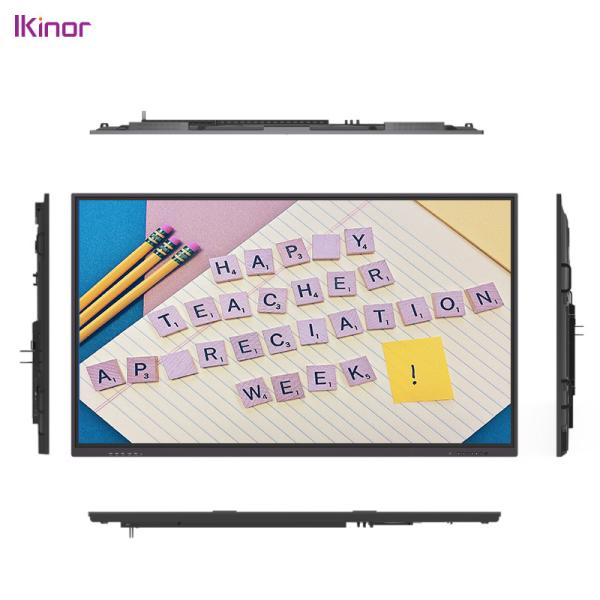

ODM UHD Interactive Digital Touch Screen Board For Schools Education 65 Inch
ODM UHD Interactive Digital Touch Screen Board For Schools Education 65 Inch
ODM UHD Interactive Digital Touch Screen Board For Schools Education 65 Inch
ODM UHD Interactive Digital Touch Screen Board For Schools Education 65 Inch
Specifications
Brand Name :
Ikinor
Model Number :
IK65
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1
Price :
$539-$900/pc
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5K/month
Delivery Time :
10-15 working day
Packaging Details :
Carton packing
Product name :
65 Inch smart interactive flat panel
Size :
65 inch
Type :
Infrared technology
Interface type :
USB3.0/HDMI/VGA
Touch points :
1~20 points
Application :
Teaching,training,education
Description

4K UHD 65 inch interactive flat panel multi touch interactive screens for education

Interactive flat panel(IFPD)— An Interactive touch screen is a large-format

touchscreen display ideal for classrooms and collaborative spaces.

Ikinor IK interactive touch screen feature 20-point touch and dual system,

Android 11.0 system and optional OPS Windows 10Pro system.

ODM UHD Interactive Digital Touch Screen Board For Schools Education 65 Inch

Features of Ikinor's interactive flat panel

Ikinor Interactive LED display comes with 10 multitouch feature

which is an effective presentations tool for sharing pictures, data, presentations, thoughts etc.

It is provided the usefully functions to enable the users prepareting interesting presention materials,

With Ikinor’s Multi-touch Panel to support different functions for enhancing the interactivity of the class.

ODM UHD Interactive Digital Touch Screen Board For Schools Education 65 Inch

Product Paramenters

Diagonal display size 65" 75" 86" 98" 110"
Bezel color Aluminum frame(Silver color) √ √ √ √ √
Back Light Direct type LED √ √ √ √ √
Active area (mm) (H) * (V) 1428.48 * 803.52 1649.66 * 927.93 1895.04 * 1065.96 2158.85 * 1214.35 2436.48 * 1370.52
Resolution 3840*2160 /UHD √ √ √ √ √
Aspect Ratio 16:9 √ √ √ √ √
Contrast Ratio 1200:1/4000:1 √ √ √ √ √
Colors 1.07 billion colors √ √ √ √ √
Brightness 350cd/m2 √ √ √ √ √
Viewing angle 178° √ √ √ √ √
Glass hardness Mohs-7 level √ √ √ √ √
Screen surface 4mm thickness Anti-Glare glass √ √ √ √ √
Panel Interactivity
Touch technology IR touch √ √ √ √ √
Touch points 20 points (Win 7/8/10)
10 points touch (Android)		 √ √ √ √ √
Touch accuracy ±2mm(Windows) √ √ √ √ √
Recognition Finger or passive stylus √ √ √ √ √
Response Rate <4ms(single touch)
<10ms(max touch inputs)		 √ √ √ √ √
Minimum object size 2mm √ √ √ √ √
Response Time <5 ms √ √ √ √ √
System support Win10/Win8/Win7/Mac OS
/Android/Chrome OS/Linux		 √ √ √ √ √
Front side Connectivity
Front ports USB3.0 * 3 lines (Public for both Android & PC) ; Touch out USB B type * 1 line; HDMI in 2.0 * 1 line; Type C* 1 Line
Front Button Indicator: Red/Blue; Buttons:Screen Record; Image Aspect Ratio; V-; V+; Setting ; Eye Protect; Power
Front speaker 10W*2
Rear side Connectivity
USB 2.0 Type A 2 √ √ √ √ √
Touch USB 2.0 Type A 1 √ √ √ √ √
HDMI in 2 √ √ √ √ √
RJ45 in & out
(public for Android & PC)		 1 √ √ √ √ √
SPDIF OUT 1 √ √ √ √ √
AV in 1 √ √ √ √ √
AV out 1 √ √ √ √ √
VGA in 1 √ √ √ √ √
VGA audio in 1 √ √ √ √ √
Earephone 1 √ √ √ √ √
MIC in 1 √ √ √ √ √
YPBPR IN 1 √ √ √ √ √
TF CARD 1 √ √ √ √ √
RS232 1 √ √ √ √ √
Windows OPS Slot OPS & OPS-C Intel standard √ √ √ √ √
Hotspot Yes √ √ √ √ √
Bluetooth V 5.0 √ √ √ √ √
WiFi IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz
Or IEEE802.11an 2.4GHz		 √ √ √ √ √
Operating system
Android Version Android 11.0 √ √ √ √ √
Chipset Amlogic T982 √ √ √ √ √
CPU 4×ARM Cortex-A55 √ √ √ √ √
GPU RM Mali-G52 √ √ √ √ √
RAM DDR4 2GB (4G for Optional) √ √ √ √ √
ROM 16GB (32GB for Optional) √ √ √ √ √
Compliant with Windows; Mac; Linux; Chrome OS √ √ √ √ √
Physical specifications
Net Weight (kg±2) 45 58 80 92 110
Gross Weight (kg±2) 56 68 93 110 144
Overall size(mm)
(without bracket)		 (L*H*W) 1483.8 * 898 * 91 1706 * 1022 * 91.2 1958.8* 1154.4 * 91.2 2216 * 1314.5 * 95.5 2499.6 * 1474.2 * 95.5
Overall size(mm)
(with bracket)		 (L*H*W) 1483.8 * 898 * 121 1706 * 1022 * 121.2 1958.8*1154.4*121.2 2216 * 1314.5 * 125.5 2499.6 * 1474.2 * 137.5
Carton size(mm) (L*H*W) 1590 * 1110 * 200 1820 * 1240 * 200 2060*1370*200 2362 * 1533 * 210 2606 * 1593.1 * 200
VESA (mm) 500*400 600*400 800*400 1000*400 1200*600
Electrical
Input Voltage 90-264V AC √ √ √ √ √
Power Consumption(Standby) <0.5W √ √ √ √ √
Power Consumption Maximun< 225W Maximun< 335W Maximun< 450W Maximun< 650W Maximun< 760W
Environmental
Working
Temperature		 0℃ ~ 40℃ √ √ √ √ √
Storage
Temperature		 一20℃ ~ 60℃ √ √ √ √ √
Working Humidity 10% ~ 90% RH
Non-Condensing		 √ √ √ √ √
Storage Humidity 10% ~ 60% RH
Non-Condensing		 √ √ √ √ √
Accessories
Accessories Pen * 1pcs, Remote control *1pcs, 2m power cord *1pcs, wall mount kit;
Wireless dongle(Optional); Mobile trolley cart(Optional); Smart Pen (Optional)
