8 Position 1P 2P Waterproof Electronic Dip Switch Single Pole Single Throw 2.54 Pitch
8 Position 1P 2P Waterproof Electronic Dip Switch Single Pole Single Throw 2.54 Pitch
8 Position 1P 2P Waterproof Electronic Dip Switch Single Pole Single Throw 2.54 Pitch
8 Position 1P 2P Waterproof Electronic Dip Switch Single Pole Single Throw 2.54 Pitch
Specifications
Brand Name :
KKG
Model Number :
DPL-08
Place of Origin :
China
MOQ :
Accepted
Price :
Negotiate
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
15 - 20 days
Packaging Details :
Export package
Certification :
RoHS
Max. Current :
24VDC
Color :
Black
Contact resistance :
≤50mΩ
Actuator :
Raised,Recessed
Current Rating :
0.1A
Insulation Resistance :
≥100MΩ
Life :
30,000 cycles
Circuit :
SPST
Description

Black 3 Position PIANO Type SPST 2.54mm Pitch SMD Gull Wing DIP Switch

Waterproof Electronic Dip Switch 8 Position 1P 2P Single Pole Single Throw 2.54 Pitch Piano Type Dip Swit

8 Position 1P 2P Waterproof Electronic Dip Switch Single Pole Single Throw 2.54 Pitch

Digital dip switch is a technical term, digital dip switch in many aspects can be controlled by the computer. Digital dip switches are also of great use in our home decoration. Digital dip switch equipment can be controlled and selected by keys, but also has a variety of intelligent service functions such as voice recognition, remote control, bring a lot of convenience for people. Digital dip switch can make our home with intelligence, more convenient operation, optimize our life. So how does a digital dip switch work?

DIP switches'n Features

1 Multiple Occasions, with multi-gear structure design, switch slide power evenly, good sense of paragraph
2 Fire Retardant, UL94-V0 injection molding, strong pressure resistance
3 Link Contacts, small contact resistance, reliable and stable

4 Appearance is clean, solid and stable
5 Convenient installation

DIP Switch's Specification

MECHANICAL
1).Operation Force 1000gf max.
2).Stroke 2.00mm
3).Operation Temp -40deg C to 85deg C
4).Storage Temp -40deg C to 85deg C
5).Positions 3 position
ELECTRICAL
1).Electrical Life 2000 operations cycles
2).Non-Switching Rating 100mA, 50VDC
3).Switching rating 25mA, 24VDC
4).Contact Resistance 50mOhms max. at initial;100mOhms max.after life test.
5).Insulation Resistance 100MOhms,500VDC
6).Dielectric Strength 500VAC/1 minute
7).Circuit SPST

8 Position 1P 2P Waterproof Electronic Dip Switch Single Pole Single Throw 2.54 Pitch

8 Position 1P 2P Waterproof Electronic Dip Switch Single Pole Single Throw 2.54 Pitch

8 Position 1P 2P Waterproof Electronic Dip Switch Single Pole Single Throw 2.54 Pitch

8 Position 1P 2P Waterproof Electronic Dip Switch Single Pole Single Throw 2.54 Pitch

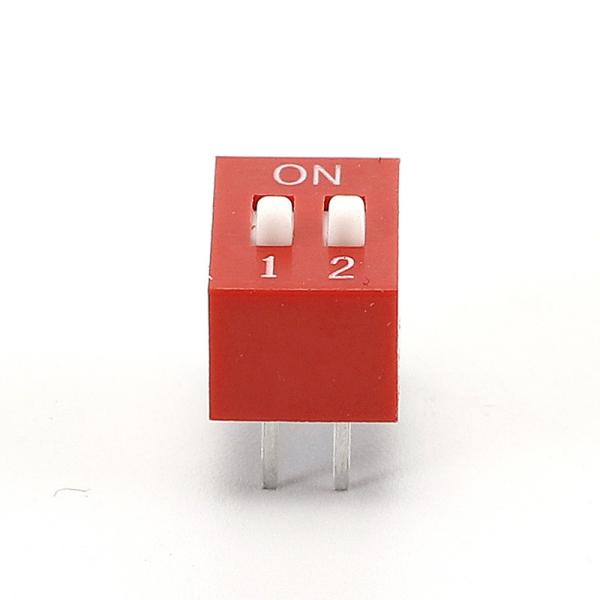

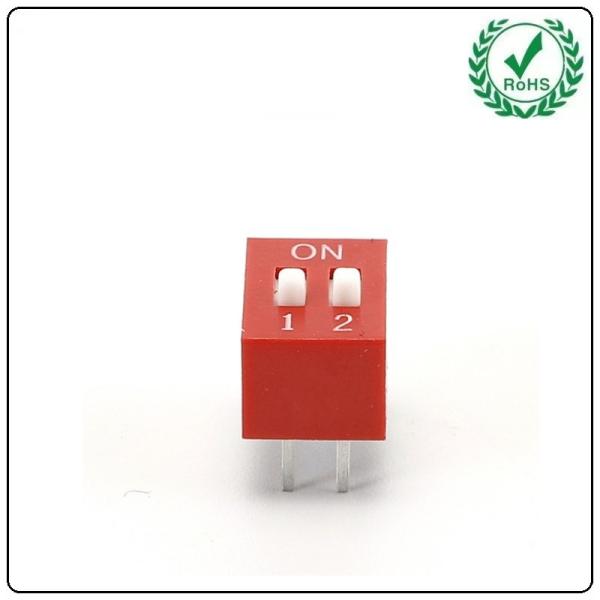

Dip switch as a manual operation of a micro switch, dip switch in communication, security and many other

equipment products are widely used. There are two pins ON the back of each key corresponding to the dip

switch, to the ON side, then the following two pins through; Otherwise disconnect. These four keys are

independent and have nothing to do with each other. This type of device is mostly used for binary coding.

8 Position 1P 2P Waterproof Electronic Dip Switch Single Pole Single Throw 2.54 Pitch

KKG electric CO.,LTD. is a company devotes itself to researching and manufacturing the components

such as switches, sockets and connectors. The Production of Products mainly used in computer products,

consumer electronics, electrical & electronics, industrial equipment & components......

So far,KKG set up own factory ,Processing factory,OEM factory and sales company in mainland China,

Taiwan(China) and Hong Kong .

During this time, the company had won many awards. Just like the industry first prize for the ISO9001

and the quality management.

8 Position 1P 2P Waterproof Electronic Dip Switch Single Pole Single Throw 2.54 Pitch

1 More than 2,000 models of switches and sockets.

2 Monthly production capacity: 30 million pieces.

3 MOQ: 5,000pcs, it’s negotiable.

4 Good quality with competitive price.

5 We can offer free samples with shipping and taxes pay by the buyer.

6 Various operation force, height, and color for your choice.

7 The discount depends on your order quantity.

8 Position 1P 2P Waterproof Electronic Dip Switch Single Pole Single Throw 2.54 Pitch

Q1. What‘s your delivery time?

A1. For those models frequently demended, we usually keep a certain quantity in stock for immediate

despatch. For others, lead time is usually a few days only.

Q2. Are you a factory or a trading company?

A2. We are the leading manufacturer. Why not conatct us now to discover original factory prices!

Q3. How about the quality?

A3. All our products are 100% tested before delivery. Durable quality is guaranteed.

Q4. Can I have samples?

A4. Yes, we offer free samples provided that you can bear express charge.

Q5. What is the shipping cost?

A5. Depending upon the quantity and the destination.

8 Position 1P 2P Waterproof Electronic Dip Switch Single Pole Single Throw 2.54 Pitch
