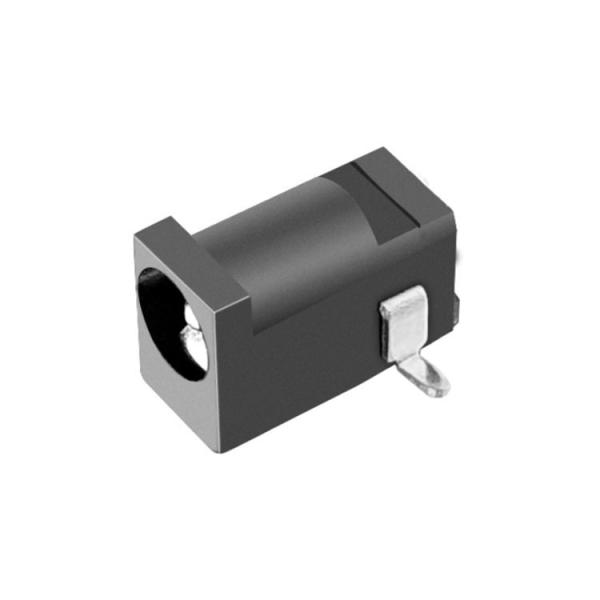

DC Power Jack Connector Pin DC0002C Socket

A DC socket is a socket that matches the power supply of a computer monitor or other electronic display

device. It consists of five major parts: 1. Insulated base, 2. Fork type touch shrapnel, 3. Transverse, 4.

Longitudinal, 5. Directional keyway, etc.

DC Connector Jack’s Structure

DC socket is a kind of socket matching with the special power supply for computer display. It is composed

of transverse socket, longitudinal socket, insulating base, forked contact shrapnel and directional keyway.

The two forked contact shrapnel are located in the center of the base, arranged vertically and horizontally,

and are not connected with each other

DC Connector Jack’s Feature

Easy to connect: SMD-mounted DC sockets are easy to connect, allowing DC power plugs to be easily

inserted into the sockets and securely remain connected.
Stable and reliable: The receptacle has a high fit with the circuit board, making the connection stable

and reliable and able to maintain a long continuous working condition.
High density installation: SMD DC power receptacles can be installed with high density through SMD

installation, making full use of the resources on the entire board.
Wide applicability: SMD DC power sockets are suitable for a wide variety of electronic devices, such as

computers, mobile devices, network devices, etc.

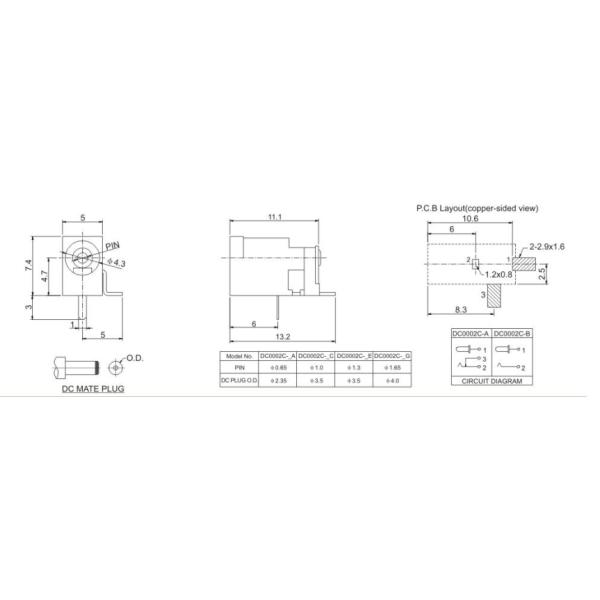

DC Connector Jack’s Specification:

DC Connector Jack Mainly used in Video products, digital products, remote control communication

products, household appliances, security products, etc

KKG electric CO.,LTD. is a company devotes itself to researching and manufacturing the components

such as switches, sockets and connectors. The Production of Products mainly used in computer products,

consumer electronics, electrical & electronics, industrial equipment & components......

So far,KKG set up own factory ,Processing factory,OEM factory and sales company in mainland China,

Taiwan(China) and Hong Kong .

During this time, the company had won many awards. Just like the industry first prize for the ISO9001

and the quality management.

1. OEM Manufacturing welcome: Our production capacity can be customized for any product.

2. Sample order can be accepted.

3. We will reply you for your inquiry in 24 hours.

4. After sending, we will track the products for you once every two days, until you get the products.

5. When you got the goods, test them, and give me a feedback.If you have any questions about the

problem, contact with us, we will offer the solve way for you

Q1: Do you take small orders?

A: Yes, we assure you of our best services at all times. Feel free to contact us.

Q2: What's the lead time of mass production?

A: Generally 2-4 weeks. We will inform you the lead time after receiving your payment.

Q3: I can't find specific products, can you make it for me?

A: Yes, our catalog covers the majority of our products but not all. So feel free to let us know what you want.

We can also open new mould for specific requirements. For your reference, making a new mould will take

about 40 days, and additional fees are needed.
