50mA 12v Illuminated Push Button Switch , Led Illuminated Light Switch
50mA 12v Illuminated Push Button Switch , Led Illuminated Light Switch
Specifications
Brand Name :
KKG
Model Number :
TC03-1ML
Certification :
ISO9001 / CE / SGS
Place of Origin :
Dongguan China
MOQ :
1000pcs
Price :
Negotiate
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 pcs / week
Delivery Time :
5- 8 days
Packaging Details :
Negotiate / Export package
Name :
Illuminated Tact Switch
LED :
YES
Free Sample :
Available
Packing :
Bulk / Reel / Tray / Tube
Rating :
12V DC 50mA
Insulation Resistance :
C Insulation Resistance
Dielectric Strength :
250V AC 50/60Hz for 1min
Operating Temperature Range :
- 20C~+70"C
Travel :
0.25±0.1mm
Color :
White
Description

White Illuminated Tact Switch , LED Illuminated For Consumer Products


The tact switch is the fourth-generation switch product developed with the requirements of the development of electronic technology. The earliest volume is 12mmx12mm, 8mm and 8mm, and now it is 6mm less than 6om. The product structure has three types: vertical, horizontal and horizontal with ground terminal. Now there are two types of combination (3M, 4M, SM, 6M, SM) and potentiometer touch switch combination, which can meet the requirements of various domestic electronic products. . There are three installation sizes: 6.smm, 4.5mm, 5.5mm, 4mm, and 6mm, 4mm. There are 4.5mm and 4.5mm small tact switches and chip type tact switches in foreign countries, and the chip type tact switches are suitable for surface assembly. At present, the use of conductive rubber switches is also very popular

Applications

• Consumer Products

• Instrumentation

• Computer Products

• Communication Epuipments

Feature:

• LED Illuminated, Two color available Long life.

• Parts of output terminals can be used as jumper lead, facilitating circuit design.

Switch Specifications

SPECIFICATIONS
Rating 12V DC 50mA
Insulation Resistance 100MQ Min(250V DC)
Dielectric Strength 250V AC 50/60Hz for 1 min
Contact Resistance 100mQ Max
Electrically Life 100,000 cycles
Operating Temperature Range -20,C~+70,C
Operating Force 160±50g/250±80g
Travel 0.25±0.1mm

LED Specifications

Color VR IF Recommended Operating Current VF
Nom. Max.
Red DC5V 20mA 20mA 2.0V 2.4V
Yellow DC5V 20mA 20mA 2.3V 2.5V
Green DC5V 20mA 20mA 2.4V 2.7V
Blue DC5V 20mA 20mA 3.3V 3.6V
White DC5V 20mA 20mA 3.0V 3.6V
Full Green DC5V 20mA 20mA 3.0V 3.6V
Amber DC5V 20mA 20mA 2.3V 2.5V

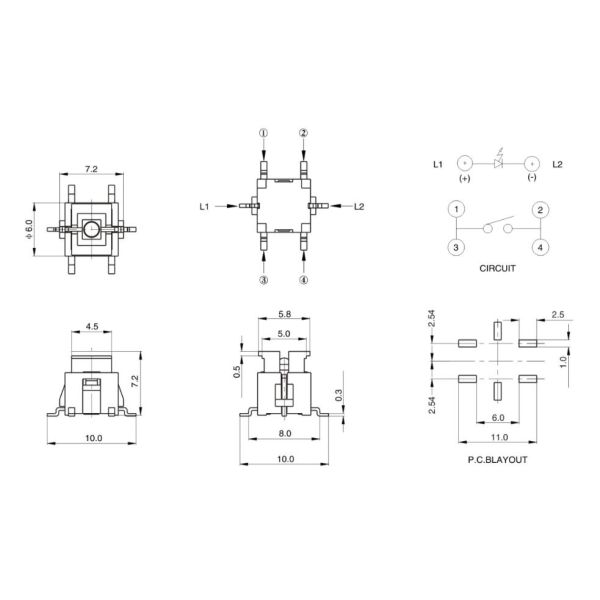

50mA 12v Illuminated Push Button Switch , Led Illuminated Light Switch

Our company is especially in manufacturing electronics switches. such as illuminated tactile switches, waterproof tact switch, momentary push button switches, illuminated push button, latching push switches, metal pushbutton switches, waterproof pushbutton switch, rocker switches, DC JACK etc.

Professional supplier of tact switches with stablequality and reliable price, we passed and implementslSo 9001,ISO 14001,OHSAS18001, also get thecertifications of REACH,RoHS,CE ect. introducedof a large number of automatic production equipment,automatic test equipment, including automatic assembly lines, automatic inspecting lines, visionmeasurement machine, ROHS X-Ray Machine, LoadTravel Curve Tester and product life-span testing machine ect.

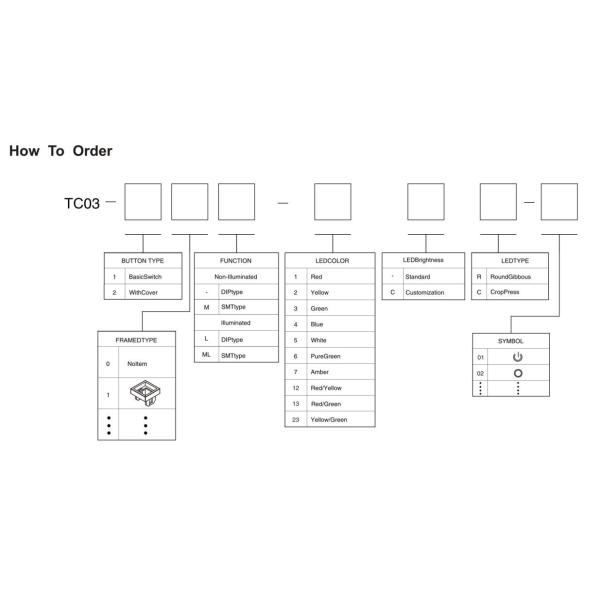

50mA 12v Illuminated Push Button Switch , Led Illuminated Light Switch


Do you inspect the finished products?

Yes, each step of production and finished products will be came out inspection by QC department before shipping.
