Long Life Illuminated Vertical Tact Switch
Long Life Illuminated Vertical Tact Switch
Specifications
Brand Name :
KKG
Model Number :
PKS-03L
Certification :
ISO9001 / CE / SGS
Place of Origin :
Dongguan China
MOQ :
1000pcs
Price :
Negotiate
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 pcs / week
Delivery Time :
5- 8 days
Packaging Details :
Negotiate / Export package
LED :
YES
Free Sample :
Available
Packing :
Bulk / Reel / Tray / Tube
Rating :
35V DC 10mA
Insulation Resistance :
Insulation Resistance
Dielectric Strength :
250V AC 50/60Hz for 1min
Operating Temperature Range :
- 20C~+70"C
Travel :
1.0mm
Description

Illuminated Tact Switch / Concave Transparent Crystal Button And Comfortable Hand Feeling


Tact switches are divided into two categories: the use of metal reeds as switch contact pieces is called tact switches, with low contact resistance and a cluster of 20 mn. It feels good, with a crisp sound of "tick". The switch that uses conductive rubber as the contact path is called conductive rubber switch. The switch feels good, but the contact resistance is large, generally 100-300n. The structure of the light touch switch is to move down by the button, so that the contact reed or conductive rubber block contacts the soldering piece to form a path


The operating force of the touch switch is related to the state of the reed. The starting force is proportional to the compression distance of the reed when the reed is compressed to 5. At% to 70%, the operating force suddenly decreases, accompanied by a "ticking" sound. The turtle rubber switch generally has two structures. The operating force curve varies greatly with the geometry of the rubber block

Applications

1,Consumer Products

2,Instrumentation

3,Computer Products

4,Communication Epuipments

Feature:

Concave transparent crystal button,comfortable hand feeling

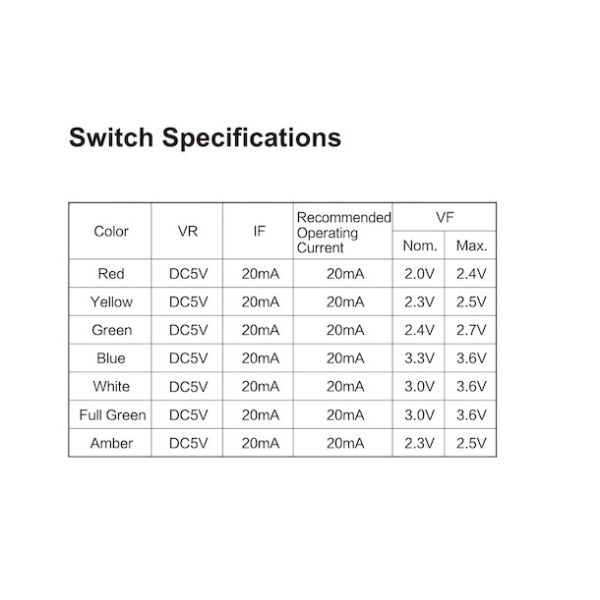

Many LED color are available,single color led and bi-color led(dual color)

Available with 10*10mm,10mm size button caps

Welcome to customized the kinds of symbols on the cap

500000 times button lifespan


Items Standard
Operating temperature range -40℃~~~~+85℃
Electrical performance Rating 50mA.12VDC
Insulation resistance 100MΩ min.100VDC
Dielectric strength 250V AC for 1min.
Contact resistance 100MΩ max.
Durability Lifetime 10,000 Cycles G
Mechanical performance Operating force J:160N C:250N
Travel 0.25 ±0.1MM

Long Life Illuminated Vertical Tact Switch

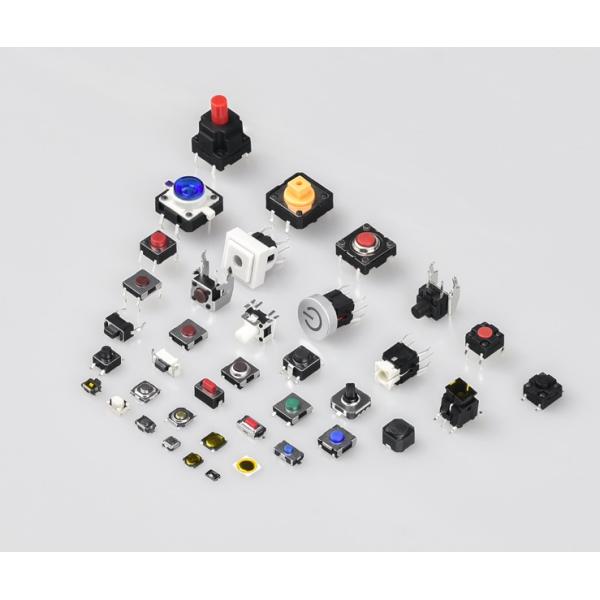

Our company is especially in manufacturing electronics switches. such as illuminated tactile switches, waterproof tact switch, momentary push button switches, illuminated push button, latching push switches, metal pushbutton switches, waterproof pushbutton switch, rocker switches, DC JACK etc.
