25mA 3 Position Dip Switch , 6 Pin Dip Switch PBT Plastic Base 5,000 Cycles
25mA 3 Position Dip Switch , 6 Pin Dip Switch PBT Plastic Base 5,000 Cycles
Specifications
Brand Name :
KKG
Model Number :
DIP-DA®
Certification :
CE / SGS / ISO9001 / ROHS
Place of Origin :
Dongguan China
MOQ :
1000 PCS / Negotiate
Price :
Negotiate
Payment Terms :
T/T, L/C
Delivery Time :
Negotiate
Packaging Details :
Export package
Name :
Dip Micro Switch
Storage Temperature :
-25°C~+85°C
Dielectric Withstand :
500VAC 1 minute
Withstand Voltage :
>1500V/MINUTE
Insulation Resistance :
1000 MΩ Min. 500VDC
Contact Resistance :
100mΩ Max
Brand :
KKG
Switching :
25mA, 24VDC
Non-switching :
100mA, 50VDC
Mechanical Life :
5,000 Cycles
Description

25mA, 24VDC Switching 6ways 2.54mm Dip Micro Switch Dip Switch

Switching 25mA, 24VDC
Non-switching 100mA, 50VDC
Initial 50m Ω Max.
After Life Test 100mΩ Max.
Insulation resistance 100mΩ Min at 500VDC.
Dielectric Strength 500VDC
Operating Force 1,000g Max
Mechanical Life 5,000 Cycles
Electrical Life 2,000 Cycles

Material:


Cover: PBT plastic (red or blue)
Base: PBT plastic (black)
Operator: POM plastic (white)
Stock: epoxy resin potting
Terminal: tin plated phosphor bronze, contact gold plated 3u"
Sealing tape: polyimide KAPTON

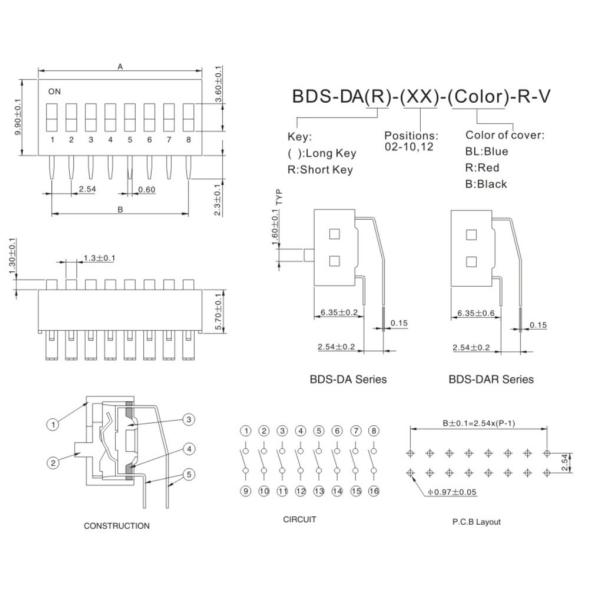

ProdNo. No.ofPOS DIM.A DIM.B
DA/DAR-02 02 6.02 2.54
DA/DAR-03 03 8.92 5.08
DA/DAR-04 04 11.16 7.62
DA/DAR-05 05 13.70 10.16
DA/DAR-06 06 16.24 12.70
DA/DAR-07 07 19.08 15.24
DA/DAR-08 08 21.32 17.78
DA/DAR-09 09 24.16 20.32
DA/DAR-10 10 26.40 22.86
DA/DAR-12 12 31.48 27.94


Switching Characteristics:

Switch Capacity: 25mA at 24VDC
Insulation Resistance:100MΩ at 250VDC
Contact Resistance: 50mΩ max.
Insulation strength: 500VAC / 1min
Operation Force : 1000gf max.
Electrical life: 2000 times
Operation Temp:-20ºC~+70ºC
Welding requirements:
Manual welding: 320 degrees C no more than 2 seconds. (30 watt iron max.)
Wave soldering: 260 degrees C no more than 5 seconds, in the welding and cleaning process switch is ope


25mA 3 Position Dip Switch , 6 Pin Dip Switch PBT Plastic Base 5,000 Cycles

Advantages:

1. Offer free sample.
2. 10+ years OEM&ODM.
3. Supply 1000000+ pcs per month.
4. Using high quality BeCu and LCP materials.
5. Long lifespan, high strength, abrasion resistance, excellent thermal stability, etc.

6. As we are a coastal city and our factory is closer to the port, the traffic is very convenient.
7. We support logistics such as DHL/EMS/UPS/FEDEX/TNT. If you have a designated freight forwarder, please let us know in advance.
8. For OEM orders, we support printing logo on products and packaging. If you need, we can also redesign and produce in
batchesafter customer approval.
