100MQ Min(250V DC) Sealed Tactile Micro Tact Switch For Instrumentation

Precautions when using the touch switch

1. When soldering the tact switch terminals, if a load is applied to the terminals, there may be loosening, deformation, and deterioration of electrical characteristics due to different conditions. Please be careful when using it.

2. When using through-hole printed circuit boards and non-recommended circuit boards, they will change due to the influence of thermal stress, so please fully confirm the soldering conditions in advance.

3. When welding twice, please do it after the first welding part returns to normal temperature. Continuous heating may deform the periphery, loosen terminals, fall off, and reduce electrical characteristics.

4. When operating with a light touch switch, if a load above the specified level is applied, the switch may be damaged. Be careful not to apply more than the specified force on the switch.

Applications

• Consumer Products

• Instrumentation

• Computer Products

• Communication Epuipments

Feature:

• LED Illuminated, Two color available Long life.

• Parts of output terminals can be used as jumper lead, facilitating circuit design.

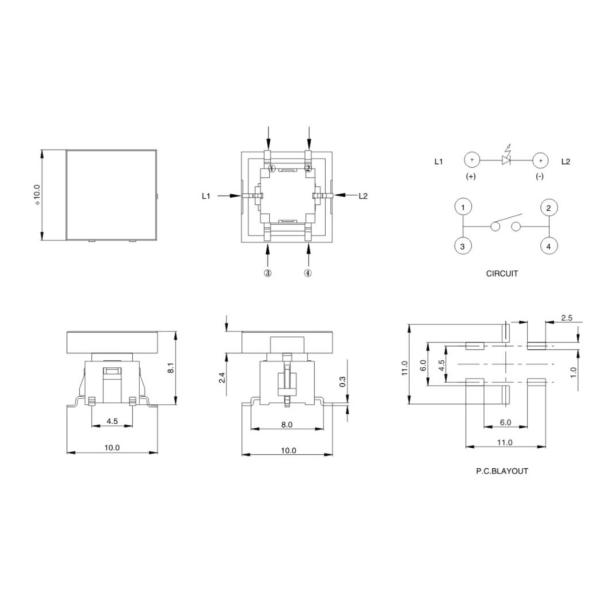

Switch Specifications

LED Specifications

Our company is especially in manufacturing electronics switches. such as illuminated tactile switches, waterproof tact switch, momentary push button switches, illuminated push button, latching push switches, metal pushbutton switches, waterproof pushbutton switch, rocker switches, DC JACK etc.

Professional supplier of tact switches with stablequality and reliable price, we passed and implementslSo 9001,ISO 14001,OHSAS18001, also get thecertifications of REACH,RoHS,CE ect. introducedof a large number of automatic production equipment,automatic test equipment, including automatic assembly lines, automatic inspecting lines, visionmeasurement machine, ROHS X-Ray Machine, LoadTravel Curve Tester and product life-span testing machine ect.

How about the package of the goods?

we often package the goods more safty, both inner box and outside cartons
