High Temperature Resistant Momentary Led Push Button 20mA illuminated
High Temperature Resistant Momentary Led Push Button 20mA illuminated
High Temperature Resistant Momentary Led Push Button 20mA illuminated
High Temperature Resistant Momentary Led Push Button 20mA illuminated
Specifications
Brand Name :
KKG
Model Number :
PB03-108L/PB03-1013L
Certification :
ISO9001 / CE / SGS
Place of Origin :
Dongguan China
MOQ :
1000pcs
Price :
Negotiate
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 pcs / week
Delivery Time :
5- 8 days
Packaging Details :
Negotiate / Export package
Name :
Illuminated Tact Switch
LED :
YES
Free Sample :
Available
Packing :
Bulk / Reel / Tray / Tube
Rating :
12V DC 50mA
Insulation Resistance :
CInsulation Resistance
Dielectric Strength :
250V AC 50/60Hz for 1min
Operating Temperature Range :
- 20C~+70"C
Travel :
0.25±0.1mm
Operating Force :
160±50g/250±80g
Recommended Operating Current :
20mA
Description

20mA Recommended Operating Current Illuminated Tact Switch With Factory Price
The main specifications of the tact switch are: environmentally friendly high temperature resistant SMD plug-in side plug-in large/medium/small tortoise type tact switch 2*4 tact switch 3*3 tact switch 3.7*3.7*0.35 incoming product tact switch 4*4*1.5/1.6/17mm tact switch 3*6*4.3/5.0mm car tact switch 4*6*2.6 tact switch 4.5*4.5*3.8/4.8/5/0/6/7/8/ 9 patch tact switch plug-in tact switch side three solution tact switch 6*6*4.3/5.0/5.5/6/7/8/9/9.5/10/11/12/13/14/15/16 /17/18/19/20/21/26mm tact switch patch tact switch plug-in tact switch 6.2*6.2*2.5/2.7/3.1/3.4 tact switch 12*12*4.3/5.0/5.5/6/ 7/8/9/10/11/12/13/14/15/16/17/18/19/20/21/22/23mm tact switch 6*6 series waterproof tact switch 8*8 series waterproof and light Tact switch 10*10 series waterproof tact switch 12*12 series waterproof tact switch.

Tact Switch Description

Tact switch is an electronic switch,Electronic components category.
Use:Force Button (Knob) down,Forcing the Shrapnel into contact with Insert (Pin),The circuit is closed.
Its internal structure is on the metal spring force changes to achieve the on-off.

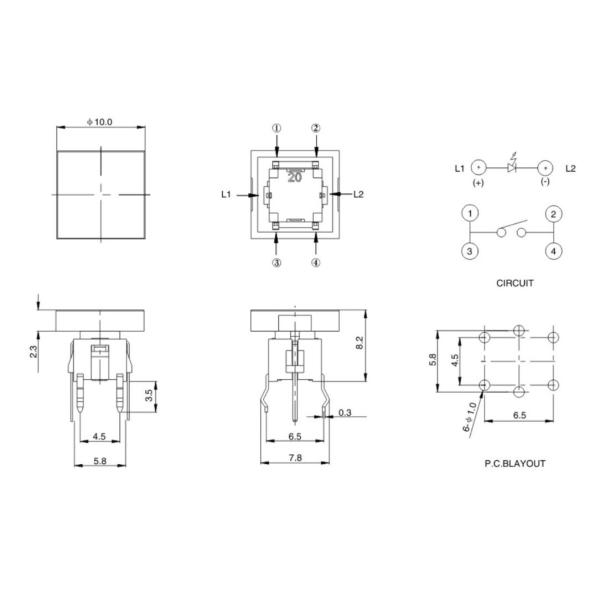

Switch Specifications

SPECIFICATIONS
Rating 12V DC 50mA
Insulation Resistance 100MQ Min(250V DC)
Dielectric Strength 250V AC 50/60Hz for 1 min
Contact Resistance 100mQ Max
Electrically Life 100,000 cycles
Operating Temperature Range -20,C~+70,C
Operating Force 160±50g/250±80g
Travel 0.25±0.1mm

LED Specifications

Color VR IF Recommended Operating Current VF
Nom. Max.
Red DC5V 20mA 20mA 2.0V 2.4V
Yellow DC5V 20mA 20mA 2.3V 2.5V
Green DC5V 20mA 20mA 2.4V 2.7V
Blue DC5V 20mA 20mA 3.3V 3.6V
White DC5V 20mA 20mA 3.0V 3.6V
Full Green DC5V 20mA 20mA 3.0V 3.6V
Amber DC5V 20mA 20mA 2.3V 2.5V

High Temperature Resistant Momentary Led Push Button 20mA illuminated

Our company is especially in manufacturing electronics switches. such as illuminated tactile switches, waterproof tact switch, momentary push button switches, illuminated push button, latching push switches, metal pushbutton switches, waterproof pushbutton switch, rocker switches, DC JACK etc.

Professional supplier of tact switches with stablequality and reliable price, we passed and implementslSo 9001,ISO 14001,OHSAS18001, also get thecertifications of REACH,RoHS,CE ect. introducedof a large number of automatic production equipment,automatic test equipment, including automatic assembly lines, automatic inspecting lines, visionmeasurement machine, ROHS X-Ray Machine, LoadTravel Curve Tester and product life-span testing machine ect.

High Temperature Resistant Momentary Led Push Button 20mA illuminated
