Self Lock Illuminated Tact Switch 100,000 Cycles DC 5v Led Push Button
Self Lock Illuminated Tact Switch 100,000 Cycles DC 5v Led Push Button
Self Lock Illuminated Tact Switch 100,000 Cycles DC 5v Led Push Button
Self Lock Illuminated Tact Switch 100,000 Cycles DC 5v Led Push Button
Specifications
Brand Name :
KKG
Model Number :
PB03-101ML/PB03-101ML
Certification :
ISO9001 / CE / SGS
Place of Origin :
Dongguan China
MOQ :
1000pcs
Price :
Negotiate
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 pcs / week
Delivery Time :
5- 8 days
Packaging Details :
Negotiate / Export package
Name :
Illuminated Tact Switch
LED :
YES
Free Sample :
Available
Packing :
Bulk / Reel / Tray / Tube
Rating :
12V DC 50mA
Insulation Resistance :
CInsulation Resistance
Dielectric Strength :
250V AC 50/60Hz for 1min
Operating Temperature Range :
- 20C~+70"C
Travel :
0.25±0.1mm
Electrically Life :
100,000 cycles
Recommended Operating Current :
20mA
VR :
DC5V
Description

Large Supply Self Locking Illuminated Led Sealed Tact Switch
Use Notes:


1. Terminals to carry our welding, if the load imposed on the terminal, it may be relaxed, deformation and deterioration of the electrical characterisics due to the different conditions, please note that when in use
2. The use of through holes brushes circuit board and other recommended board, due to the heart stress of change, so please pre-conditions on the welding and full recognition.
3. Welding on the set of conditions needed to confirm the actual conditions of mass production.

Applications

• Consumer Products

• Instrumentation

• Computer Products

• Communication Epuipments

Feature:

• LED Illuminated, Two color available Long life.

• Parts of output terminals can be used as jumper lead, facilitating circuit design.

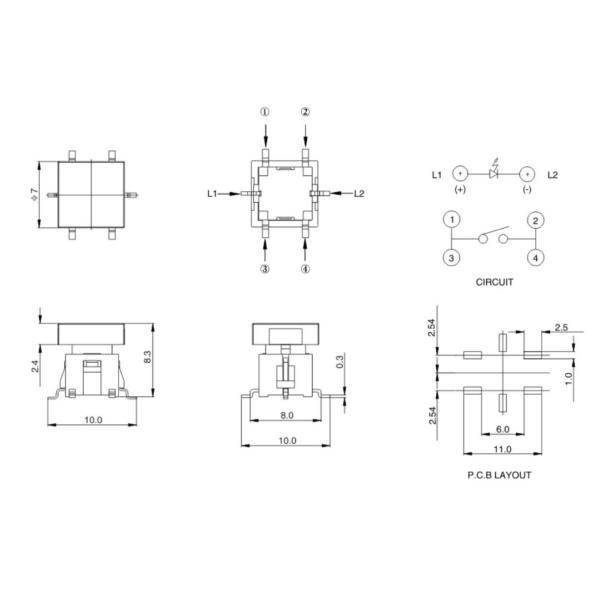

Switch Specifications

SPECIFICATIONS
Rating 12V DC 50mA
Insulation Resistance 100MQ Min(250V DC)
Dielectric Strength 250V AC 50/60Hz for 1 min
Contact Resistance 100mQ Max
Electrically Life 100,000 cycles
Operating Temperature Range -20,C~+70,C
Operating Force 160±50g/250±80g
Travel 0.25±0.1mm

LED Specifications

Color VR IF Recommended Operating Current VF
Nom. Max.
Red DC5V 20mA 20mA 2.0V 2.4V
Yellow DC5V 20mA 20mA 2.3V 2.5V
Green DC5V 20mA 20mA 2.4V 2.7V
Blue DC5V 20mA 20mA 3.3V 3.6V
White DC5V 20mA 20mA 3.0V 3.6V
Full Green DC5V 20mA 20mA 3.0V 3.6V
Amber DC5V 20mA 20mA 2.3V 2.5V

Self Lock Illuminated Tact Switch 100,000 Cycles DC 5v Led Push Button

Our company is especially in manufacturing electronics switches. such as illuminated tactile switches, waterproof tact switch, momentary push button switches, illuminated push button, latching push switches, metal pushbutton switches, waterproof pushbutton switch, rocker switches, DC JACK etc.

Professional supplier of tact switches with stablequality and reliable price, we passed and implementslSo 9001,ISO 14001,OHSAS18001, also get thecertifications of REACH,RoHS,CE ect. introducedof a large number of automatic production equipment,automatic test equipment, including automatic assembly lines, automatic inspecting lines, visionmeasurement machine, ROHS X-Ray Machine, LoadTravel Curve Tester and product life-span testing machine ect.

Self Lock Illuminated Tact Switch 100,000 Cycles DC 5v Led Push Button


Why choose your company?


1. more than ten years manufacture experience about more kinds of switch
2. good quality,competitive price,fast delivery time
3. more switch type choosed,such as keyboard switch,rotary switch,rocker switch, push button switch, slide switch,dip switch,micro switch,tact switch,ac/dc socket and connector.
4. Design and Develop new mould depends on clients requirement
5. The best after-sale service
6.Anytime you need help ,please contact with us we keep online all the time.
