Mini Tactile Switch Smd Film switch 4*4*0.8mm 4x4mm Micro Ultrathin Tact Switch
Mini Tactile Switch Smd Film switch 4*4*0.8mm 4x4mm Micro Ultrathin Tact Switch
Mini Tactile Switch Smd Film switch 4*4*0.8mm 4x4mm Micro Ultrathin Tact Switch
Mini Tactile Switch Smd Film switch 4*4*0.8mm 4x4mm Micro Ultrathin Tact Switch
Mini Tactile Switch Smd Film switch 4*4*0.8mm 4x4mm Micro Ultrathin Tact Switch
Mini Tactile Switch Smd Film switch 4*4*0.8mm 4x4mm Micro Ultrathin Tact Switch
Mini Tactile Switch Smd Film switch 4*4*0.8mm 4x4mm Micro Ultrathin Tact Switch
Mini Tactile Switch Smd Film switch 4*4*0.8mm 4x4mm Micro Ultrathin Tact Switch
Specifications
Brand Name :
KKG
Model Number :
TK-037
Certification :
CE / SGS / ISO9001
Place of Origin :
Dongguan China
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
Negotiate
Packaging Details :
Export package
Brand :
KKG
Name :
Long Life Plugin Tactile Tact Switches
Contact :
Mechanical Contact
Operating Force :
100±50gf, 160±150gf, 260±50gf
Contact Resistance :
1 00mΩ Max
Life :
50,000 cycles for 260gf / 500,000 cycles for 160gf
Proteciton Level :
IP67
Key words :
Tact Switch
Operation type :
Momentory
Travel :
0.15±0.1mm
Description

Mini Tactile Switch Smd Film switch 4*4*0.8mm 4x4mm Micro Ultrathin Tact Switch

Mini Tactile Switch Smd Film switch 4*4*0.8mm 4x4mm Micro Ultrathin Tact Switch

Mini Tactile Switch Smd Film switch 4*4*0.8mm 4x4mm Micro Ultrathin Tact Switch


Tact switches are divided into two categories: the use of metal reeds as switch contact sheets is called

tact switches, which have a small contact resistance and a cluster of 20 mn. It feels good, with a crisp

sound of "tick". The switch that uses conductive rubber as the contact path is called conductive rubber

switch. The switch feels good, but the contact resistance is large, generally 100-300n. The structure of

the light touch switch is to move down by the button, so that the contact reed or conductive rubber block

contacts the soldering piece, forming a path

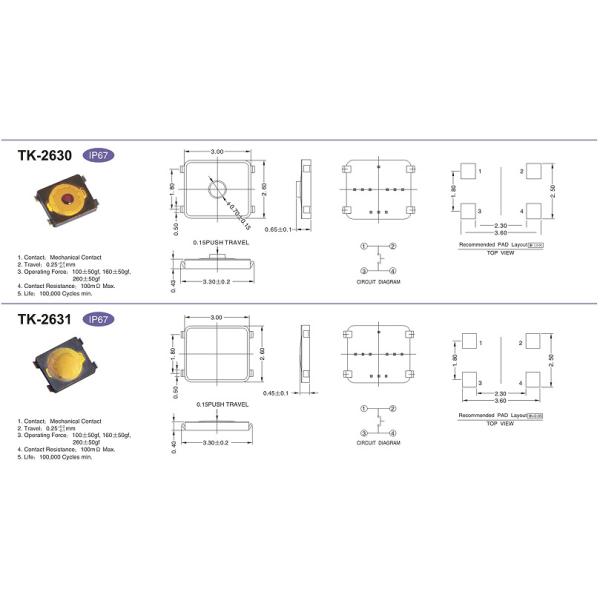

Specification


Contact Rating:50mA, 12V DC
Contact Resistance:100mΩ max.
Insulation Resistance:100MΩ min. 100V DC
Dielectric Strength:100V AC/1 minute
Operating Force :160±50gf/235±60gf
Travel :0.15±0.1mm
Operating Life:50,000 cycles for 235gf
:500,000 cycles for 160gf

Tact Switch
Contact Configuration
ON-OFF
Temperature

-40-105°C
Insulation Resistance
≥ 100MΩ
Contact Resistance
≤ 100mΩ
Withstand Voltage
AC250V/min
Life
≥ 50000 times

Mini Tactile Switch Smd Film switch 4*4*0.8mm 4x4mm Micro Ultrathin Tact Switch


Mini Tactile Switch Smd Film switch 4*4*0.8mm 4x4mm Micro Ultrathin Tact Switch

Mini Tactile Switch Smd Film switch 4*4*0.8mm 4x4mm Micro Ultrathin Tact Switch

Mini Tactile Switch Smd Film switch 4*4*0.8mm 4x4mm Micro Ultrathin Tact Switch

Mini Tactile Switch Smd Film switch 4*4*0.8mm 4x4mm Micro Ultrathin Tact Switch

Q1.Are you a factory or trading company?
A1.We are a factory, we can guarantee our price is first-hand, very cheap and competitive.

Q2.How does your factory do regarding quality control?
A2.All the products will be 100% checked before the shipment.

Q3.When can I get the price?
A3.Usually we quote within 24 hours after we get your inquiry.

Q4.How could I get a sample?
A4.if you can not buy our product in your local area, we will ship a sample to you.You will be charged a

sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.

Q5.What is the price of shipping?
A5.Depending upon the port of delivery, prices varies.
