4 Position Coded Rotary Switch Octal Code Right Angle Mount Extended Actuators
4 Position Coded Rotary Switch Octal Code Right Angle Mount Extended Actuators
4 Position Coded Rotary Switch Octal Code Right Angle Mount Extended Actuators
4 Position Coded Rotary Switch Octal Code Right Angle Mount Extended Actuators
4 Position Coded Rotary Switch Octal Code Right Angle Mount Extended Actuators
4 Position Coded Rotary Switch Octal Code Right Angle Mount Extended Actuators
4 Position Coded Rotary Switch Octal Code Right Angle Mount Extended Actuators
4 Position Coded Rotary Switch Octal Code Right Angle Mount Extended Actuators
Specifications
Brand Name :
KKG
Model Number :
R9--S
Certification :
CE / SGS / ISO9001
Place of Origin :
Dongguan China
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
Negotiate
Packaging Details :
Export package
Name :
Selector Rotary Switch
Brand :
KKG
Contact Resistance :
100mΩ Max
Insulation Resistance :
1,000MΩ Min. at 100VDC
Dielectric Strength :
250VAC for 1 minute
Operating Force :
400gf/cm Max. (Standard)
Operating Temperature :
-40C~+85C
Storage Temper ature :
-40C~+85C
Wave Soldering :
270C 5 Sec. Max.
Position :
4~16 Positions
Rating :
5VDC 20mA
Description

5VDC 20mA Contact Rating Automatic 4~16 Positions Selector Rotary Switch
Specifications

1,Contact Rating
Switching: 5VDC 20mA (Min. AC/DC 20mA
Non Switching: Max. 50VDC 100mA
2,Contact Resistance: 100mΩ Max
3,Insulation Resistance : 1,000MΩ Min. at 100VDC
4,Dielectric Strength: 250VAC for 1 minute
5,Operating Force:
400gf/cm Max. (Standard)
200gf/cm Max. (N type)
6,Life: 20,000 Steps
7,Operating Temperature:
-40C~+85C
-40'C~+125C(Reflow Soldering)
7,Storage Temper ature: -40C~+85C
8, Wave Soldering: 270C 5 Sec. Max.
9,Reflow Soldering: 260C 10~ 30 Sec. Max.
10,Hand Soldering: 350C 3 Sec. Max


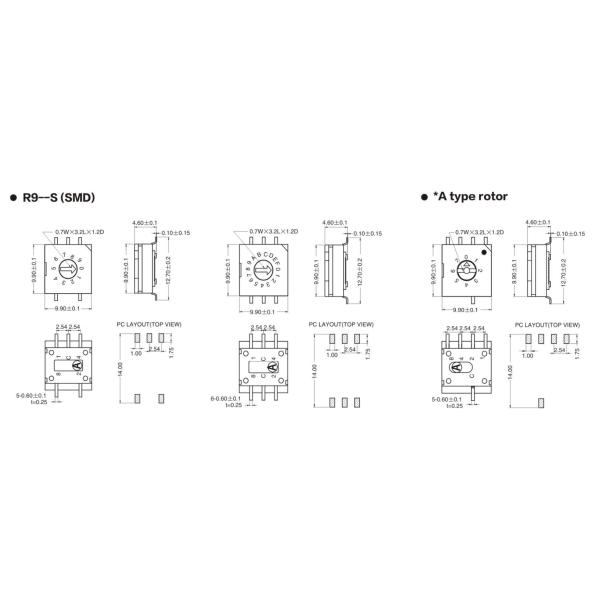

4 Position Coded Rotary Switch Octal Code Right Angle Mount Extended Actuators

Items Standard
Operating temperature range -40'O~+85<C
Electrical performance Switch Rating 5VDC 100mA
Non-Switch Rating 50VDC 100mA
Durability Lifetime 10,000 Steps
Mechanical performance Operating force 2N Max.

Code Format

No.of positions (16 positions)
(10 positions)
(08 positions
Position 0 1 2 3 4 5 6 7 8 9 A B c D E F
Code Real code 8 • • • • • • • •
4 • • • • • • • •
2 • • • • • • • •
1 • • • • • • • •
Complem- entary code 8 • • • • • • • •
4 • • • • • • • •
2 • • • • • • • •
1 • • • • • • •

Package

P/N No. Of Pole Quantity per Tube P/N No. Of Pole Quantity per Tube
R92_H/T/S 08/10/16 50 R9_0/1S-R 08/10/16 600
R92_V/Y 08/10/16 45 R9_2/3S-R 08/10/16 350
R93_H/T/S 08/10/16 50 R9_7S-R 08/10/16 200
R93_V/Y 08/10/16 45 R9_7H/T-R 08/10/16 140
R94_H/T/S 08/10/16 50
R94_V 08/10/16 45

Features

  1. Sealed Construction; No Tape Seal Required.
  2. Surface Mount or Thru-Hole Style.
  3. Tube or Tape and Reel Packaging.
  4. Octal, BCD, and Hexadecimal Code.
  5. In Real or Complement.
  6. Standard and Right Angle Mount.
  7. Flush or Extended Actuators.
  8. Gold-Plated Contacts.
  9. Waterproof meet lp67.
