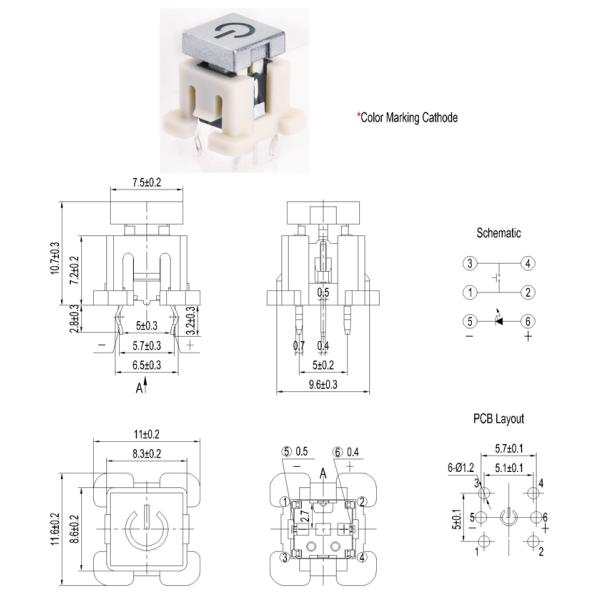

Illumination Tactile Switch, Rectangle Led Rgb Push Button Switch ,Lamp Switch,Lighted Switch,Illuminated Tact Switch

The button switch with light is a control switch with manual operation (finger or palm), indicator

light and energy storage reset.

Assembly process of light touch switch:

1 Wire tail treatment: cut the wire tail flat, do not hit the carbon paste on the back of the terminal -

a layer of single-sided adhesive pet for reinforcement. When it is necessary to hit the terminal,

lead the front of the terminal to the terminal riveting pressure. Note that the double tail line should

be cut at the 1.5 cm rounded outlet at the bottom of the tail line.

2 Punching: on the assembled circuit, the four corners are aligned, the open hole is extended by

1 mm, connected all around, and bound to the assembled circuit. Knock it down with something.

When knocking on the door, be careful if the line is hit.

3 Stamping forming: the standard requires accuracy. According to the supplied standard, the

thickness, standard and shape of printing materials, the standard of touch switch is subject to

variable processing to obtain accurate structural standard. The quality of stamping die is the key

to directly affect the forming quality of light touch switch shell. High quality convex pressing adopts

hot pressing. Its advantage is that the kneading convex shape is not deformed, with a sense of

hierarchy and three-dimensional feeling.

4 Inspection: check whether there is any appearance deviation and poor silk screen printing. Then,

according to the circuit principle, check one by one and touch the band lights

Lamp switches'Features

•Multiple cap options: Lettering, Graphic,Custom legends Transparent, Silver plating, Balck painting,

UV coating Round, Square, Rectangle, Customized caps

• Sharp tactile response

• Mount options: THT, SMT

• Illumination options: Single colors, Bi-colors

•RoHS compliant and compatible

Materials

LED Specifications

The led tact switch is suitable for TV,DVD,instruments and meter equipment,audio apparatus

KKG Electronics (Taiwan) Co., Ltd. is a dedicated switch, socket and other components r & D

and manufacturing company, its products are mainly used in consumer electronics, home

entertainment products, mobile communications products, automotive electronics, medical

equipment products. By the customer's affirmation. Since the establishment of the company in

1998, the company has been with the development of electronic components. During this period,

the company has won many awards such as ISO9001 and quality management industry excellence

Award. Designated as "quality Excellence" factory, in the harsh environment of fierce domestic

competition, we protect our leadership position and reputation in order to meet new challenges.

1. Free sample, OEM / ODM are welcome.

2. We are factory with competitive price and free sample.

3. Enough stock to meet fast delivery.

4. Global trade assurance.

5. Form E, C/O is available.

6. After sale service team to solve problems after customer receive goods.

7. Inspect every product before delivery.

8. 7*24 hours online service

your request will be solved in time.

8. 100% after sales service

we’ll be together with you for all questions

Q1. What‘s your delivery time?

A1. For those models frequently demanded, we usually keep a certain quantity in stock

for immediate despatch. For others, lead time is usually a few days only.

Q2. Are you a factory or a trading company?

A2. We are the leading manufacturer. Why not contact us now to discover original factory prices!

Q3. How about the quality?

A3. All our products are 100% tested before delivery. Durable quality is guaranteed.

Q4. Can I have samples?

A4. Yes, we offer free samples provided that you can bear express charge.

Q5. What is the shipping cost?

A5. Depending upon the quantity and the destination.
